Model ： C1.2-64S-COB-3840
P1.2mm
C1.2-64S-COB-3840 Indoor COB LED Module
C1.2‑64S‑COB‑3840 indoor COB LED module,1.2mm ultra‑fine pixel pitch,3840Hz refresh rate,≥600 cd/m² brightness. COB packaging,1/64 constant‑current drive,HUB320 interface,160° wide angles for control‑
- Pixel pitch
- 1.2mm
- Brightness
- ≥600cd/m²
- Refresh rate
- 3840Hz
- IP rating
- Indoor use only; no outdoor ingress-protection rating is claimed.
Series · Prism Indoor
Product Specification
C1.2-64S-COB-3840 Indoor COB LED Module
The C1.2-64S-COB-3840 is an indoor COB LED module with 1.2mm pixel pitch, COB packaging, 1/64 scan constant-current driving and a 3840Hz refresh rate.
600 cd/m² Indoor Brightness
Brightness of ≥600 cd/m², uniformity above 0.95 and 160° viewing angles support clear indoor images.
320 × 160mm COB Module
The 320 × 160 × 14.3mm module provides 256 × 128 pixels, 640,000 dots/m² and 32,768 pixels per module.
3840Hz Refresh Rate
A 3840Hz refresh rate and ≥60 fps frame rate support stable video performance.
COB Protection and HUB320 Interface
COB packaging provides enhanced front-surface protection, while HUB320 and 1/64 scan constant-current driving ensure stable operation.
Ultra-Fine Indoor Images
With 640,000 dots/m² and an optimal viewing distance of ≥2.1m, this module suits fine-pitch indoor displays.
- Pixel pitch
- 1.2mm
- Brightness
- ≥600cd/m²
- Refresh rate
- 3840Hz
- Power
- Module ≤20W; display ≤391W/m²
- Resolution
- Module 256*128=32768Dots; Cabinet 512*384=196608 Dots
- Cabinet size
- 640*480*78mm
- IP rating
- Indoor use only; no outdoor ingress-protection rating is claimed.
01 / SPECIFICATIONS
Performance at a glance.
Technical specifications for C1.2-64S-COB-3840 Indoor COB LED Module. Contact us to confirm the configuration for your project.
| Pixel pitch | 1.2mm |
|---|---|
| Brightness | ≥600cd/m² |
| Refresh rate | 3840Hz |
| Power | Module ≤20W; display ≤391W/m² |
| Resolution | Module 256*128=32768Dots; Cabinet 512*384=196608 Dots |
| Cabinet size | 640*480*78mm |
| IP rating | Indoor use only; no outdoor ingress-protection rating is claimed. |
| Brightness | ≥600cd/m² |
|---|---|
| Brightness Uniformity | >0.95 |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 160° |
| Optimal Viewing Distance | ≥2.1m |
| Refresh Rate | 3840Hz |
| Frame Rate | ≥60fps |
| Grayscale | R/G/B each 13bits |

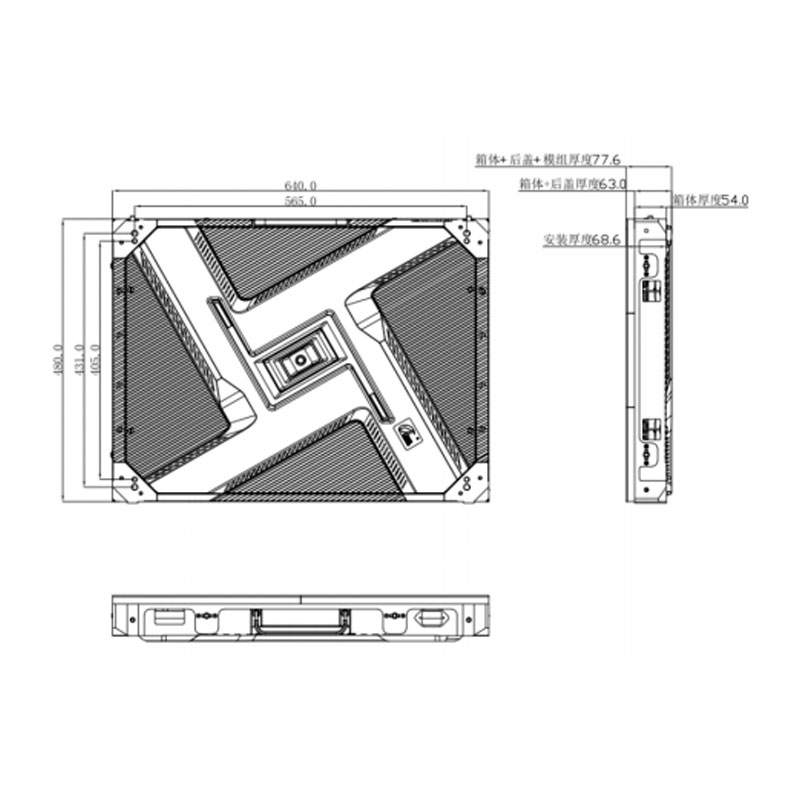

| Cabinet Dimensions | 640*480*78mm |
|---|---|
| Cabinet Resolution | 512*384=196608 Dots |
| Cabinet Area | 0.307m2 |
| Cabinet Weight | 8.32kg±0.05kg |
| Maximum Power Consumption | ≤120W |
| Average Power Consumption | ≤40W |
| Pixel Pitch | 1.2mm |
|---|---|
| Pixel Density | 640000dots/m² |
| Pixel Configuration | 1R1G1B |
| LED Package | COB |

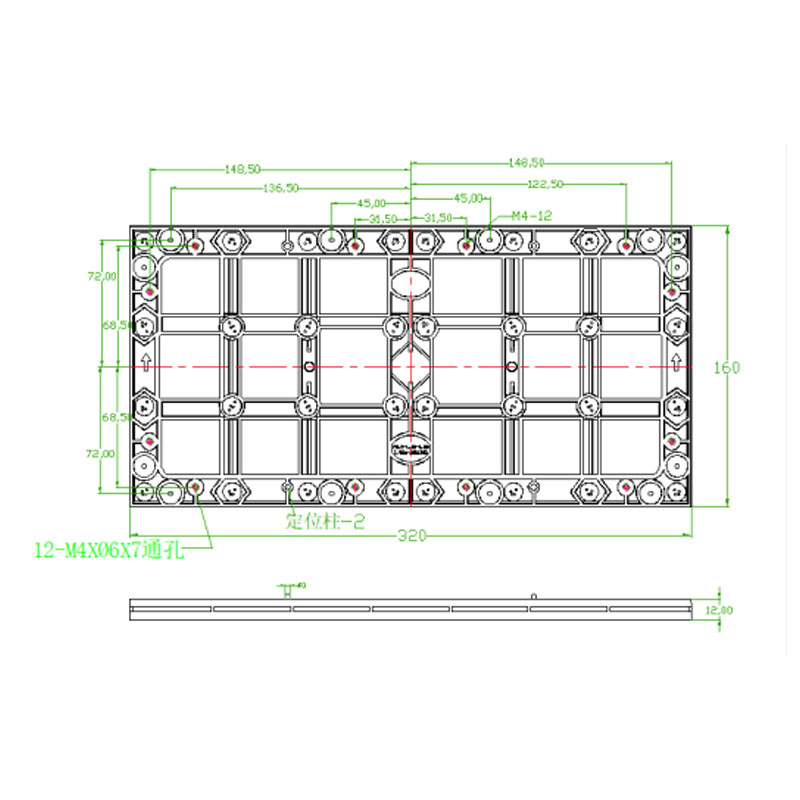

| Module Dimensions | 320*160*14.3mm |
| Module Weight | 0.50kg±0.01kg |
| Module Resolution | 256*128=32768Dots |
| Drive Method | 1/64constant-current drive |
03 / PRODUCT DESIGN & SIGNAL INTERFACE
Designed for your installation.
| Interface | HUB320 |
|---|
04 / ENGINEERING
Power architecture.
Power supply and consumption specifications for the selected configuration.
| Input Voltage | 4.2±0.1V |
|---|---|
| Maximum Current | ≤4.3A |
| Module Power | ≤20W |
| Maximum Display Power | ≤391W/m² |
| Power Distribution Capacity | ≤590W/m² |
INSTALLATION
Modules to cabinets.
ENVIRONMENT & SERVICE
Built for its working environment.
- 1.2mm fine pixel pitch for detailed indoor images
- 3840Hz refresh rate for smooth video and camera capture
- 640000dots/m² pixel density
- Wide viewing angles: 160° horizontal and 160° vertical
- HUB320 signal interface with 1/64constant-current drive
- Enhanced front-surface protection for demanding indoor environments
Use ESD protection during handling. Keep the module dry and within the specified temperature and humidity range. Do not connect the module directly to 220V or assemble it while powered.
| Operating Environment | Indoor |
|---|---|
| Operating Temperature | -20℃-40℃ |
| Operating Humidity | 10%-65% RH (non-condensing) |
| Protection | Indoor use only; no outdoor ingress-protection rating is claimed. |
APPLICATIONS
Visual solutions for your space.
wall mounting
hanging installation
control-room display
