Model ： G1.2-64S-1010-Pro-6000
P1.2mm

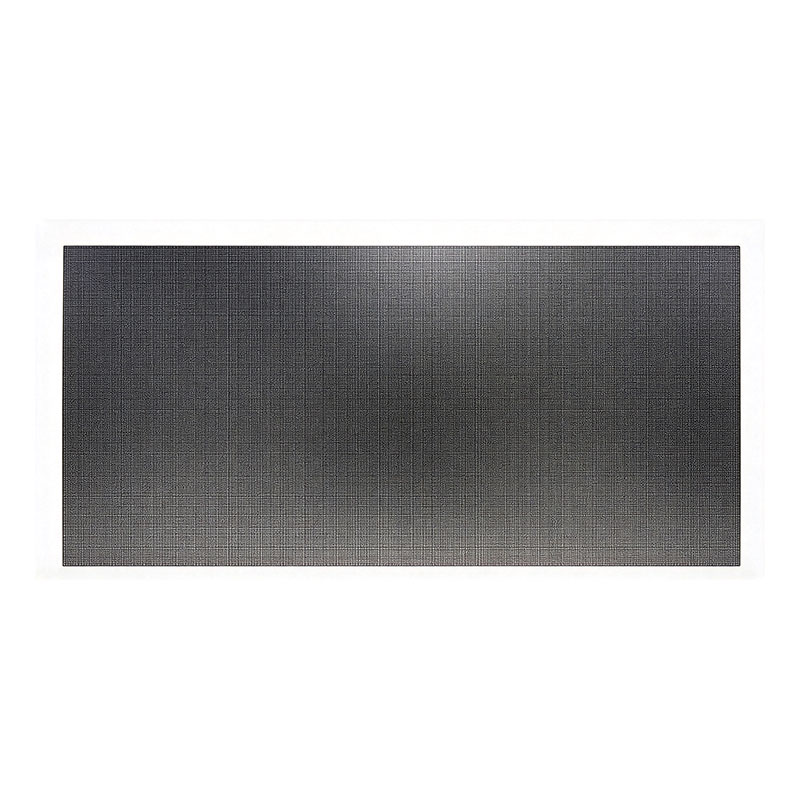

G1.2-64S-1010-Pro-6000 Indoor GOB LED Module
G1.2‑64S‑1010‑Pro‑6000 indoor GOB LED module, P1.2mm fine pitch, ≥600cd/m² brightness, 6000Hz refresh. IP65 front‑surface protection, 160° ultra‑wide viewing angles, HUB320 interface. Perfect for control‑room, wall‑mount and hanging indoor fixed‑installation displays.
- Pixel pitch
- 1.2mm
- Brightness
- ≥600cd/m²
- Refresh rate
- 6000Hz
- IP rating
- Front LED surface protection up to IP65; remaining parts are for indoor use only.
Series · Prism Indoor
Product Specification
G1.2-64S-1010-Pro-6000 Indoor GOB LED Module
The G1.2-64S-1010-Pro-6000 is an indoor GOB LED module with 1.2mm pixel pitch, ≥600cd/m² brightness and 6000Hz refresh rate.
600 cd/m² Indoor Brightness
With brightness of ≥600cd/m² and brightness uniformity greater than 0.95, the module is designed for indoor LED display applications. The horizontal viewing angle is 140°±10° and the vertical viewing angle is 130°±10°.
320 × 160mm LED Module
Each module measures 320 × 160 × 15mm and provides a resolution of 256 × 128 pixels. The pixel density is 640000dots/m² with 32,768 pixels per module.
6000Hz High Refresh Rate
The module supports a refresh rate of 6000Hz and a frame rate of ≥60 fps, providing stable image performance for indoor LED display systems.
Constant-Current Driver Technology
The module uses the HUB75 interface and 1/64 constant-current drive to provide stable and consistent display performance.
High Pixel Density for Finer Indoor Images
With a pixel density of 640000dots/m² and a best viewing distance of ≥2.1m, this module is suitable for indoor LED displays that require finer image detail and shorter viewing distances.
- Pixel pitch
- 1.2mm
- Brightness
- ≥600cd/m²
- Refresh rate
- 6000Hz
- Power
- Module ≤30W; display ≤580W/m²
- Resolution
- Module 256*128=32768Dots; Cabinet 512*384=196608 Dots
- Cabinet size
- 640*480*78mm
- IP rating
- Front LED surface protection up to IP65; remaining parts are for indoor use only.
01 / SPECIFICATIONS
Performance at a glance.
Technical specifications for G1.2-64S-1010-Pro-6000 Indoor GOB LED Module. Contact us to confirm the configuration for your project.
| Pixel pitch | 1.2mm |
|---|---|
| Brightness | ≥600cd/m² |
| Refresh rate | 6000Hz |
| Power | Module ≤30W; display ≤580W/m² |
| Resolution | Module 256*128=32768Dots; Cabinet 512*384=196608 Dots |
| Cabinet size | 640*480*78mm |
| IP rating | Front LED surface protection up to IP65; remaining parts are for indoor use only. |
| Brightness | ≥600cd/m² |
|---|---|
| Brightness Uniformity | >0.95 |
| Horizontal Viewing Angle | 160±10° |
| Vertical Viewing Angle | 160±10° |
| Optimal Viewing Distance | ≥2.1m |
| Refresh Rate | 6000Hz |
| Frame Rate | ≥60fps |
| Grayscale | R/G/B each 14-16bits |

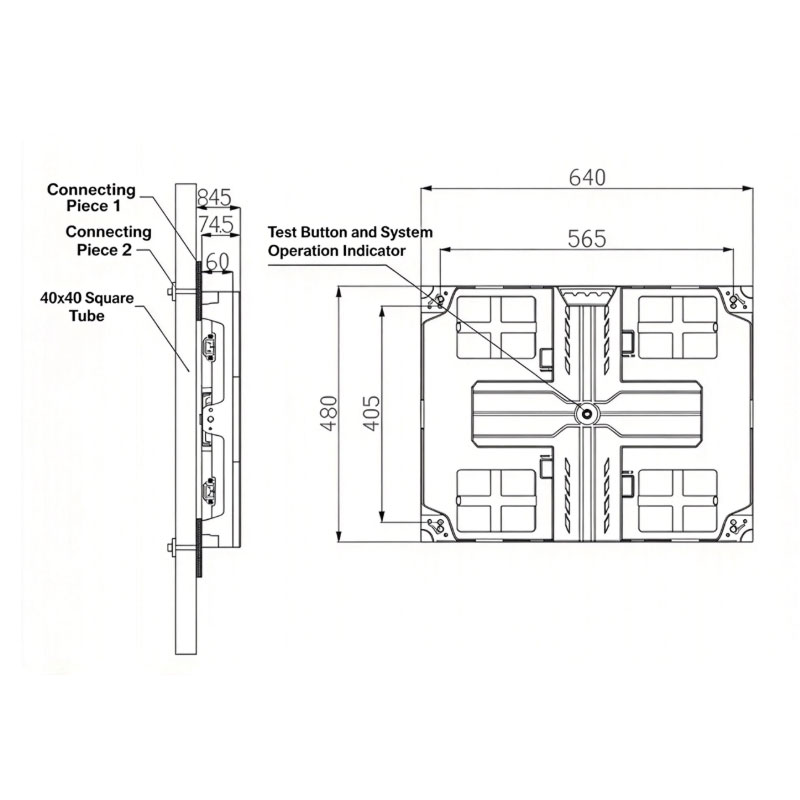

| Cabinet Dimensions | 640*480*78mm |
|---|---|
| Cabinet Resolution | 512*384=196608 Dots |
| Cabinet Area | 0.307m2 |
| Cabinet Weight | 8.32kg±0.05kg |
| Maximum Power Consumption | ≤178W |
| Average Power Consumption | ≤59W |
| Pixel Pitch | 1.2mm |
|---|---|
| Pixel Density | 640000dots/m² |
| Pixel Configuration | 1R1G1B |
| LED Package | SMD1010 |
| Module Dimensions | 320*160*15mm |
| Module Weight | 0.58kg±0.01kg |
| Module Resolution | 256*128=32768Dots |
| Drive Method | 1/64 constant-current drive |
03 / PRODUCT DESIGN & SIGNAL INTERFACE
Designed for your installation.
| Interface | HUB320 |
|---|
04 / ENGINEERING
Power architecture.
Power supply and consumption specifications for the selected configuration.
| Input Voltage | 4.2±0.1V |
|---|---|
| Maximum Current | ≤6.6A |
| Module Power | ≤30W |
| Maximum Display Power | ≤580W/m² |
| Power Distribution Capacity | ≤875W/m² |
INSTALLATION
Modules to cabinets.
ENVIRONMENT & SERVICE
Built for its working environment.
- 1.2mm fine pixel pitch for detailed indoor images
- 6000Hz refresh rate for smooth video and camera capture
- 640000dots/m² pixel density
- Wide viewing angles: 160±10° horizontal and 160±10° vertical
- HUB320 signal interface with 1/64 constant-current drive
- Enhanced front-surface protection for demanding indoor environments
Use ESD protection during handling. Keep the module dry and within the specified temperature and humidity range. Do not connect the module directly to 220V or assemble it while powered.
| Operating Environment | Indoor |
|---|---|
| Operating Temperature | -20℃-40℃ |
| Operating Humidity | 10%-65% RH (non-condensing) |
| Protection | Front LED surface protection up to IP65; remaining parts are for indoor use only. |
APPLICATIONS
Visual solutions for your space.
wall mounting
hanging installation
control-room display
