G1.8-43S-1515-H-3840 Indoor GOB LED Module

G1.8-43S-1515-H-3840 Indoor GOB LED Module

The G1.8-43S-1515-H-3840 is an indoor gob led module with 1.8mm pixel pitch, ≥450cd/m² brightness and 3840Hz refresh rate, designed for high-resolution indoor LED display applications.

450 cd/m² Indoor Brightness

With brightness of ≥450cd/m² and brightness uniformity greater than 0.95, the module is designed for indoor LED display applications. The horizontal viewing angle is 140°±10° and the vertical viewing angle is 130°±10°.

320 × 160mm LED Module

Each module measures 320 × 160 × 15mm and provides a resolution of 172 × 86 pixels. The pixel density is 288906dots/m² with 14,792 pixels per module.

3840Hz High Refresh Rate

The module supports a refresh rate of 3840Hz and a frame rate of ≥60 fps, providing stable image performance for indoor LED display systems.

Constant-Current Driver Technology

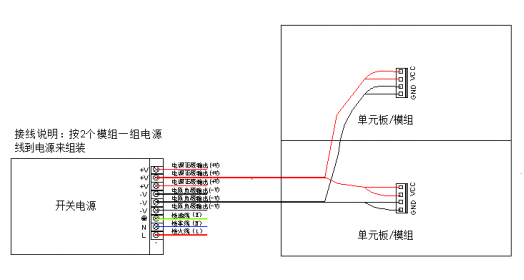

The module uses the HUB75 interface and 1/43constant-current drive to provide stable and consistent display performance.

High Pixel Density for Finer Indoor Images

With a pixel density of 288906dots/m² and a best viewing distance of ≥4.8m, this module is suitable for indoor LED displays that require finer image detail and shorter viewing distances.
