Model ： G1.8-43S-1515-Pro-6000
P1.8mm

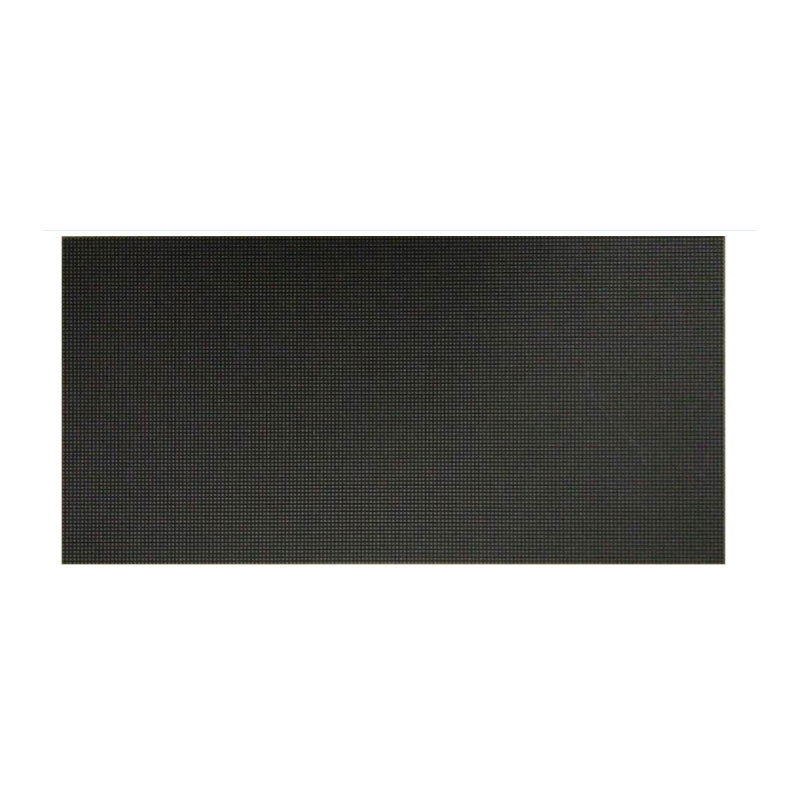

G1.8-43S-1515-Pro-6000 Indoor GOB LED Module
The G1.8-43S-1515-Pro-6000 is an indoor GOB LED display module with 1.8mm pixel pitch, SMD1515 RGB LEDs, 1/43 scan constant-current driving and 6000Hz refresh rate. The 320 × 160mm module delivers ≥60
- Pixel pitch
- 1.8mm
- Brightness
- ≥600cd/m²
- Refresh rate
- 6000Hz
- IP rating
- Front LED surface protection up to IP65; remaining parts are for indoor use only.
Series · Prism Indoor
Product Specification
G1.8-43S-1515-Pro-6000 Indoor GOB LED Module
The G1.8-43S-1515-Pro-6000 is an indoor GOB LED display module with 1.8mm pixel pitch, SMD1515 RGB LEDs, 1/43 scan constant-current driving and 6000Hz refresh rate. The 320 × 160mm module delivers ≥60
600 cd/m² Indoor Brightness
With brightness of ≥600cd/m² and brightness uniformity greater than 0.95, the module is designed for indoor LED display applications. The horizontal viewing angle is 140°±10° and the vertical viewing angle is 130°±10°.
320 × 160mm LED Module
Each module measures 320 × 160 × 15.5mm and provides a resolution of 172 × 86 pixels. The pixel density is 288906dots/m² with 14,792 pixels per module.
6000Hz High Refresh Rate
The module supports a refresh rate of 6000Hz and a frame rate of ≥60 fps, providing stable image performance for indoor LED display systems.
Constant-Current Driver Technology
The module uses the HUB75 interface and 1/43 constant-current drive to provide stable and consistent display performance.
High Pixel Density for Finer Indoor Images
With a pixel density of 288906dots/m² and a best viewing distance of ≥3.2m, this module is suitable for indoor LED displays that require finer image detail and shorter viewing distances.
- Pixel pitch
- 1.8mm
- Brightness
- ≥600cd/m²
- Refresh rate
- 6000Hz
- Power
- Module ≤23W; display ≤439W/m²
- Resolution
- Module 172*86=14792Dots; Cabinet 344*258=88752 Dots
- Cabinet size
- 640*480*78mm
- IP rating
- Front LED surface protection up to IP65; remaining parts are for indoor use only.
01 / SPECIFICATIONS
Performance at a glance.
Technical specifications for G1.8-43S-1515-Pro-6000 Indoor GOB LED Module. Contact us to confirm the configuration for your project.
| Pixel pitch | 1.8mm |
|---|---|
| Brightness | ≥600cd/m² |
| Refresh rate | 6000Hz |
| Power | Module ≤23W; display ≤439W/m² |
| Resolution | Module 172*86=14792Dots; Cabinet 344*258=88752 Dots |
| Cabinet size | 640*480*78mm |
| IP rating | Front LED surface protection up to IP65; remaining parts are for indoor use only. |
| Brightness | ≥600cd/m² |
|---|---|
| Brightness Uniformity | >0.95 |
| Horizontal Viewing Angle | 140±10° |
| Vertical Viewing Angle | 130±10° |
| Optimal Viewing Distance | ≥3.2m |
| Refresh Rate | 6000Hz |
| Frame Rate | ≥60fps |
| Grayscale | R/G/B each 14-16bits |
| Cabinet Dimensions | 640*480*78mm |
|---|---|
| Cabinet Resolution | 344*258=88752 Dots |
| Cabinet Area | 0.307m2 |
| Cabinet Weight | 7.67kg±0.05 |
| Maximum Power Consumption | ≤135W |
| Average Power Consumption | ≤45W |
| Pixel Pitch | 1.8mm |
|---|---|
| Pixel Density | 288906dots/m² |
| Pixel Configuration | 1R1G1B |
| LED Package | SMD1515 |
| Module Dimensions | 320*160*15.5mm |
| Module Weight | 0.37kg±0.01kg |
| Module Resolution | 172*86=14792Dots |
| Drive Method | 1/43 constant-current drive |
03 / PRODUCT DESIGN & SIGNAL INTERFACE
Designed for your installation.
| HUB75 Pin 1 | RD1 - Red Data |
|---|---|
| HUB75 Pin 2 | GD1 - Green Data |
| HUB75 Pin 3 | BD1 - Blue Data |
| HUB75 Pin 4 | GND |
| HUB75 Pin 5 | RD2 - Red Data |
| HUB75 Pin 6 | GD2 - Green Data |
| HUB75 Pin 7 | BD2 - Blue Data |
| HUB75 Pin 8 | GND |
| HUB75 Pin 9 | A - Row Control |
| HUB75 Pin 10 | B - Row Control |
| HUB75 Pin 11 | C - Row Control |
| HUB75 Pin 12 | D - Row Control |
| HUB75 Pin 13 | CLK - Clock |
| HUB75 Pin 14 | LAT - Data Latch |
| HUB75 Pin 15 | OE - Enable |
| HUB75 Pin 16 | GND |
04 / ENGINEERING
Power architecture.
Power supply and consumption specifications for the selected configuration.
| Input Voltage | 4.2±0.1V |
|---|---|
| Maximum Current | ≤5A |
| Module Power | ≤23W |
| Maximum Display Power | ≤439W/m² |
| Power Distribution Capacity | ≤663W/m² |
INSTALLATION
Modules to cabinets.
ENVIRONMENT & SERVICE
Built for its working environment.
- 1.8mm fine pixel pitch for detailed indoor images
- 6000Hz refresh rate for smooth video and camera capture
- 288906dots/m² pixel density
- Wide viewing angles: 140±10° horizontal and 130±10° vertical
- HUB75 signal interface with 1/43 constant-current drive
- Enhanced front-surface protection for demanding indoor environments
Use ESD protection during handling. Keep the module dry and within the specified temperature and humidity range. Do not connect the module directly to 220V or assemble it while powered.
| Operating Environment | Indoor |
|---|---|
| Operating Temperature | -20℃-40℃ |
| Operating Humidity | 10%-65% RH (non-condensing) |
| Protection | Front LED surface protection up to IP65; remaining parts are for indoor use only. |
