Model ： G2-40S-1515-H-3840
P2mm

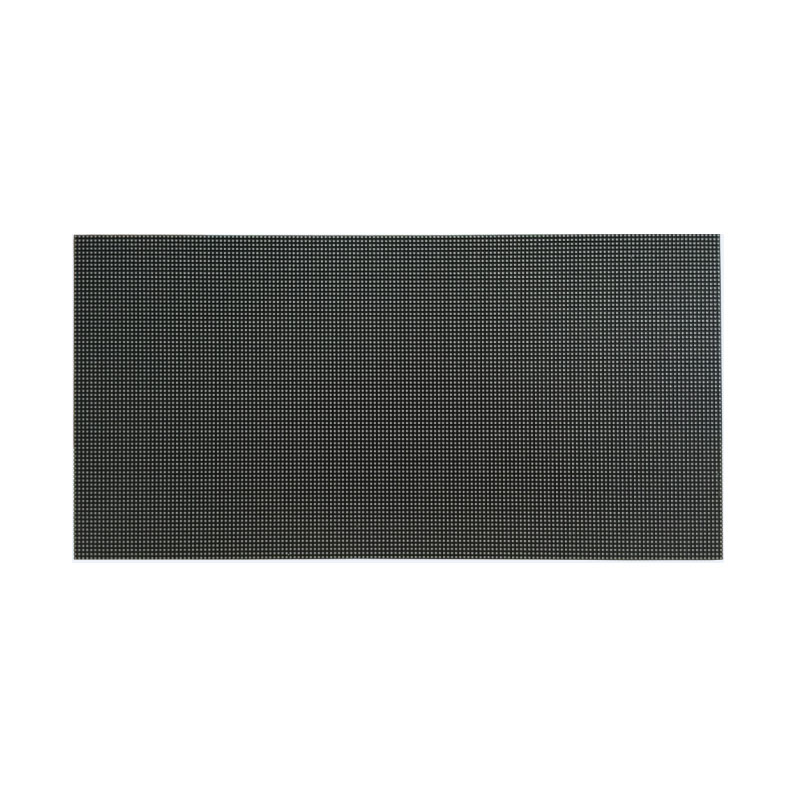

G2-40S-1515-H-3840 Indoor GOB LED Module
G2‑40S‑1515‑H‑3840 indoor GOB LED module,2mm pixel pitch,250,000 dots/m²,≥450cd/m² brightness,3840Hz flicker‑free refresh. Front‑side IP65 protection,wide viewing angles,1/40 constant‑current drive & HUB75 interface. Suited for robust indoor fixed,wall‑mount & hanging control‑room video‑wall deployments.
- Pixel pitch
- 2mm
- Brightness
- ≥450cd/m²
- Refresh rate
- 3840Hz
- IP rating
- Front LED surface protection up to IP65; remaining parts are for indoor use only.
Series · Prism Indoor
Product Specification
G2-40S-1515-H-3840 Indoor GOB LED Module
The G2-40S-1515-H-3840 is an indoor GOB LED module with 2mm pixel pitch, ≥450cd/m² brightness and 3840Hz refresh rate.
450 cd/m² Indoor Brightness
With brightness of ≥450cd/m² and brightness uniformity greater than 0.95, the module is designed for indoor LED display applications. The horizontal viewing angle is 140°±10° and the vertical viewing angle is 130°±10°.
320 × 160mm LED Module
Each module measures 320 × 160 × 14.5mm and provides a resolution of 160 × 80 pixels. The pixel density is 250000dots/m² with 12,800 pixels per module.
3840Hz High Refresh Rate
The module supports a refresh rate of 3840Hz and a frame rate of ≥60 fps, providing stable image performance for indoor LED display systems.
Constant-Current Driver Technology
The module uses the HUB75 interface and 1/40 constant-current drive to provide stable and consistent display performance.
High Pixel Density for Finer Indoor Images
With a pixel density of 250000dots/m² and a best viewing distance of ≥3.6m, this module is suitable for indoor LED displays that require finer image detail and shorter viewing distances.
- Pixel pitch
- 2mm
- Brightness
- ≥450cd/m²
- Refresh rate
- 3840Hz
- Power
- Module ≤23W; display ≤439W/m²
- Resolution
- Module 160*80=12800Dots; Cabinet 320*240=76800 Dots
- Cabinet size
- 640*480*78mm
- IP rating
- Front LED surface protection up to IP65; remaining parts are for indoor use only.
01 / SPECIFICATIONS
Performance at a glance.
Technical specifications for G2-40S-1515-H-3840 Indoor GOB LED Module. Contact us to confirm the configuration for your project.
| Pixel pitch | 2mm |
|---|---|
| Brightness | ≥450cd/m² |
| Refresh rate | 3840Hz |
| Power | Module ≤23W; display ≤439W/m² |
| Resolution | Module 160*80=12800Dots; Cabinet 320*240=76800 Dots |
| Cabinet size | 640*480*78mm |
| IP rating | Front LED surface protection up to IP65; remaining parts are for indoor use only. |
| Brightness | ≥450cd/m² |
|---|---|
| Brightness Uniformity | >0.95 |
| Horizontal Viewing Angle | 140±10° |
| Vertical Viewing Angle | 130±10° |
| Optimal Viewing Distance | ≥3.6m |
| Refresh Rate | 3840Hz |
| Frame Rate | ≥60fps |
| Grayscale | R/G/B each 12-14bits |
| Cabinet Dimensions | 640*480*78mm |
|---|---|
| Cabinet Resolution | 320*240=76800 Dots |
| Cabinet Area | 0.307m2 |
| Cabinet Weight | 7.49kg±0.05kg |
| Maximum Power Consumption | ≤135W |
| Average Power Consumption | ≤45W |
| Pixel Pitch | 2mm |
|---|---|
| Pixel Density | 250000dots/m² |
| Pixel Configuration | 1R1G1B |
| LED Package | SMD1515 |
| Module Dimensions | 320*160*14.5mm |
| Module Weight | 0.37kg±0.01kg |
| Module Resolution | 160*80=12800Dots |
| Drive Method | 1/40 constant-current drive |
03 / PRODUCT DESIGN & SIGNAL INTERFACE
Designed for your installation.
| Interface | HUB75 |
|---|
04 / ENGINEERING
Power architecture.
Power supply and consumption specifications for the selected configuration.
| Input Voltage | 4.2±0.1V |
|---|---|
| Maximum Current | ≤5A |
| Module Power | ≤23W |
| Maximum Display Power | ≤439W/m² |
| Power Distribution Capacity | ≤663W/m² |
INSTALLATION
Modules to cabinets.
ENVIRONMENT & SERVICE
Built for its working environment.
- 2mm fine pixel pitch for detailed indoor images
- 3840Hz refresh rate for smooth video and camera capture
- 250000dots/m² pixel density
- Wide viewing angles: 140±10° horizontal and 130±10° vertical
- HUB75 signal interface with 1/40 constant-current drive
- Enhanced front-surface protection for demanding indoor environments
Use ESD protection during handling. Keep the module dry and within the specified temperature and humidity range. Do not connect the module directly to 220V or assemble it while powered.
| Operating Environment | Indoor |
|---|---|
| Operating Temperature | -20℃-40℃ |
| Operating Humidity | 10%-65% RH (non-condensing) |
| Protection | Front LED surface protection up to IP65; remaining parts are for indoor use only. |
APPLICATIONS
Visual solutions for your space.
wall mounting
hanging installation
control-room display
