Model ： Qmini1.2-64S（COB）
P1.2mm
P1.2 Mini LED Indoor Full Color Display for Commercial AV Projects
The Q3-32S-E-2020 integrates fine pixel pitch, high structural rigidity, constant-current driving, and front-serviceability into a compact LED module architecture.
- Pixel pitch
- 1.2mm
- Brightness
- ≥600cd/㎡
- Refresh rate
- 3840Hz
- IP rating
- IP30
Series · Prism Indoor
Product Specification
The Q3-32S-E-2020 integrates fine pixel pitch, high structural rigidity, constant-current driving, and front-serviceability into a compact LED module architecture.
- Pixel pitch
- 1.2mm
- Brightness
- ≥600cd/㎡
- Refresh rate
- 3840Hz
- Power
- ≤20W
- Resolution
- 256×128
- Cabinet size
- 640*480*78mm
- IP rating
- IP30
01 / SPECIFICATIONS
Performance at a glance.
Technical specifications for P1.2 Mini LED Indoor Full Color Display for Commercial AV Projects. Contact us to confirm the configuration for your project.
| Pixel pitch | 1.2mm |
|---|---|
| Brightness | ≥600cd/㎡ |
| Refresh rate | 3840Hz |
| Power | ≤20W |
| Resolution | 256×128 |
| Cabinet size | 640*480*78mm |
| IP rating | IP30 |
| Pixel Pitch | 1.2mm |
|---|---|
| Pixel Density | 640000Dots/㎡ |
| Pixel Configuration | 1R1G1B |
| Brightness | ≥600cd/㎡ |
| Brightness Uniformity | ＞0.95 |
| Horizontal View Angle | 160° |
| Vertical View Angle | 160° |
| Gray Scale | 13bit per RGB |
| Display Colors | 439.8 billion colors |
| Refresh Rate | 3840Hz |
| Frame Rate | ≥60fps |
| Driving Mode | 1/64 Constant Current |
| Optimum Viewing Distance | ≥2.1m |
| Operating Temperature | -20℃~40℃ |
| Operating Humidity | 10%~65%RH(Non-condensing) |

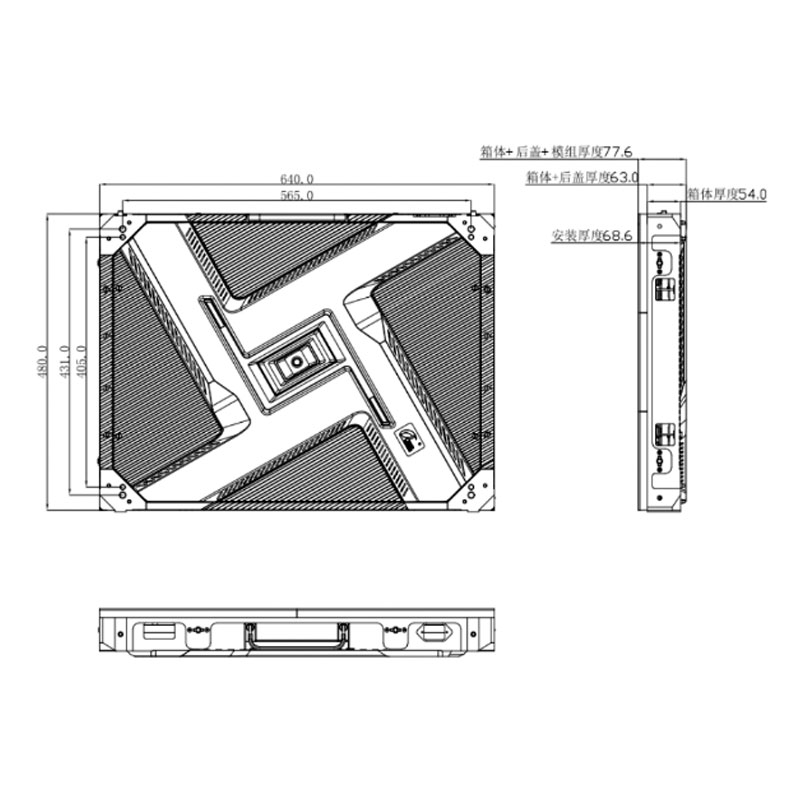

| Cabinet Dimension | 640×480×78mm |
|---|---|
| Cabinet Resolution | 512×384 |
| Cabinet Area | 0.307㎡ |
| Cabinet Weight | 8.32kg±0.05kg |
| Max Power Consumption | ≤120W |
| Average Power Consumption | ≤40W |
| Distribution Power | ≤154W |
| Flatness | ＜1mm/㎡ |
| Maintenance Type | Front & rear maintenance |

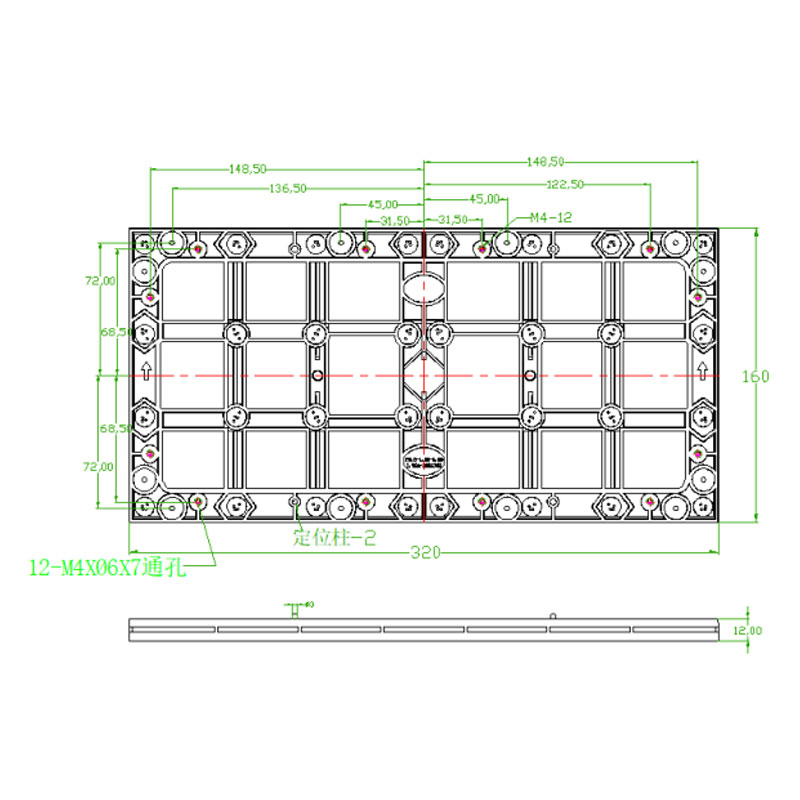

| Module Dimension | 320×160×14.3mm |
|---|---|
| Module Resolution | 256×128 |
| Module Weight | 0.50kg±0.01kg |
| Module Max Power | ≤20W |
| Input Voltage | DC4.2±0.1V |
| Max Current | ≤4.3A |
| Package Type | COB |
| Surface Hardness | 4H |
| Structure | Lamp & Driver Integrated |
| IP Rating | IP30 |
03 / PRODUCT DESIGN & SIGNAL INTERFACE
Designed for your installation.
| Signal Connector | HUB320 (2.54mm,2*13Pin) |
|---|---|
| Power Connector | VH4 3.96mm 4Pin |
| Input Signal | DVI/VGA/HDMI/DP,CVBS,S-VIDEO,YpbPr |
04 / ENGINEERING
Power architecture.
Power supply and consumption specifications for the selected configuration.
| 40A Power Supply Load Modules | 3-4pcs |
|---|---|
| 50A Power Supply Load Modules | 5-6pcs |
| 40A PFC Power Supply Load Modules | 5-6pcs |
| 80A Power Supply Load Modules | 8-10pcs |
INSTALLATION
Modules to cabinets.
ENVIRONMENT & SERVICE
Built for its working environment.
- Wall mounting

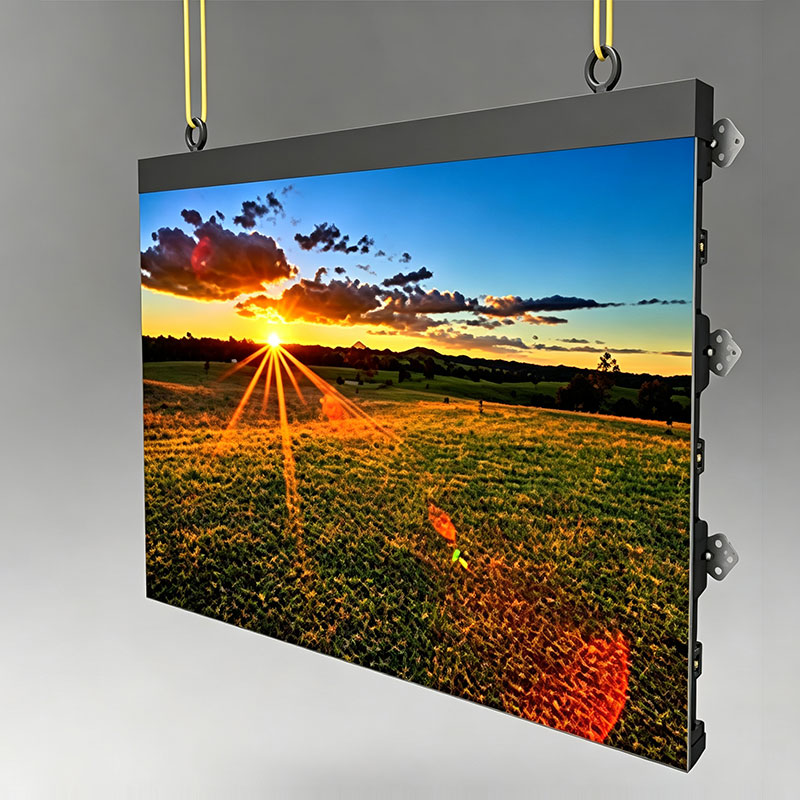

- Hoisting installation
- Fixed installation
- Indoor rental setup
- Horizontal cabinet tiling
- Vertical cabinet tiling
- Front maintenance available
- Rear maintenance available
Installers must wear grounded anti-static wristbands and gloves, all tools must be properly grounded. Do not disassemble modules while powered on. Do not mix modules of different production batches to avoid mosaic color patches. Clean LED surface only with lint-free cloth or damp cloth with pure water; unknown chemical liquids are prohibited. Screen frame, power supply housing and cabinet shall be well grounded, ground resistance ≤10Ω. Check grounding and surge protection devices every 6 months. If stored over 1 month, perform graded brightness aging & dehumidification before commissioning. Regularly power on in high humidity environment to remove moisture. Avoid long-time static image playback to prevent LED brightness degradation and dead pixels.
| Operating Temperature | -20℃~40℃ |
|---|---|
| Storage Temperature | -10℃~30℃ |
| Operating Humidity | 10%~65%RH(Non-condensing) |
| Storage Humidity | 10%~60%RH |
| Module Surface Operating Temperature | ≤60℃ |
| Grounding Resistance | ≤10Ω |
| Neutral-Ground Voltage | ≤2V |
APPLICATIONS
Visual solutions for your space.
Exhibition halls
Command & control centers
Lecture halls
Indoor rental events
Premium commercial display
Enterprise lobbies
Monitoring centers
TECHNICAL RESOURCES
Product documentation.
Indoor Qmini1.2-64S Specification Sheet – 3840Hz – HUB320 Interface
