Model ： P1.6-32S-1212-H-3840
P1.6mm
P1.6-32S-1212-H-3840 Indoor SMD LED Module
P1.6‑32S‑1212‑H‑3840 indoor SMD LED module, 1.6mm pixel pitch, ≥450cd/m² brightness and 3840Hz refresh rate. Features SMD1212 RGB LED, 1/32 constant‑current drive & HUB320 interface. Great for indoor
- Pixel pitch
- 1.6mm
- Brightness
- ≥450cd/m²
- Refresh rate
- 3840Hz
- IP rating
- Indoor use only; no outdoor ingress-protection rating is claimed.
Series · Prism Indoor
Product Specification
P1.6-32S-1212-H-3840 Indoor SMD LED Module
The P1.6-32S-1212-H-3840 is an indoor SMD LED display module with a 1.6mm pixel pitch, SMD1212 RGB LEDs, 1/32 scan constant-current driving and a 3840Hz refresh rate.
450 cd/m² Indoor Brightness
With brightness of ≥450 cd/m² and brightness uniformity greater than 0.95, the module is designed for indoor LED display applications. The horizontal viewing angle is 140°±10° and the vertical viewing angle is 130°±10°.

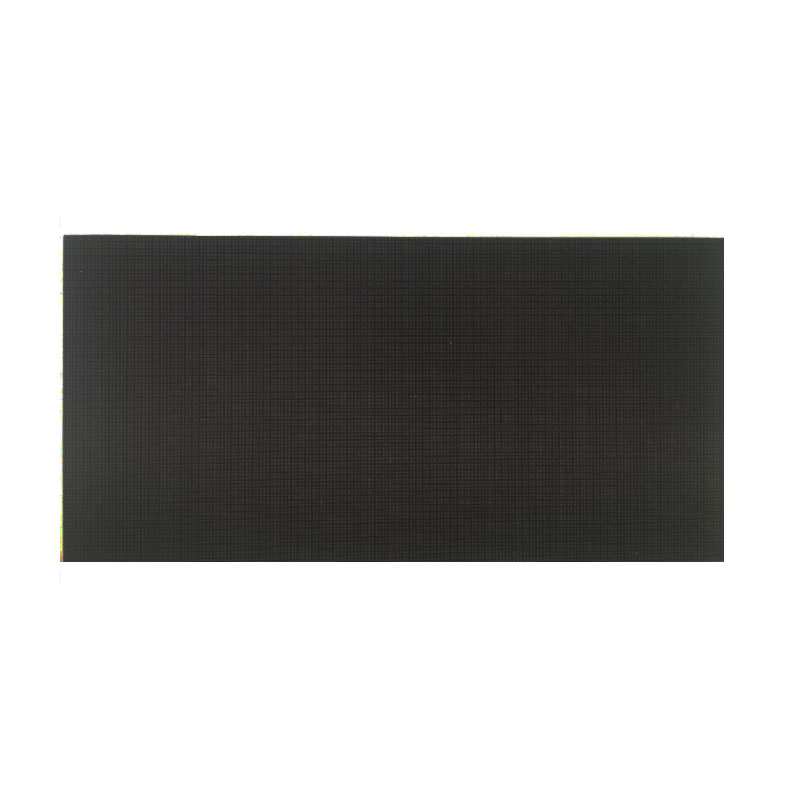

320 × 160mm LED Module
The module measures 320 × 160 × 14.5mm and provides a resolution of 192 × 96 pixels. The pixel density is 360,000 dots/m² with 18,432 pixels per module.
3840Hz High Refresh Rate
The module supports a 3840Hz refresh rate and a frame rate of ≥60 fps, providing smooth and stable video performance for indoor LED display systems.
Constant-Current Driver Technology
The module uses a HUB320 interface and 1/32 scan constant-current driving to provide stable and consistent display performance.
High Pixel Density for Finer Indoor Images
With a pixel density of 360,000 dots/m² and an optimal viewing distance of ≥2.8m, the P1.6 module is suitable for indoor LED displays that require fine image detail and short viewing distances.
- Pixel pitch
- 1.6mm
- Brightness
- ≥450cd/m²
- Refresh rate
- 3840Hz
- Power
- Module ≤30W; display ≤580W/m²
- Resolution
- Module 192*96=18432Dots; Cabinet 384*288=110592 Dots

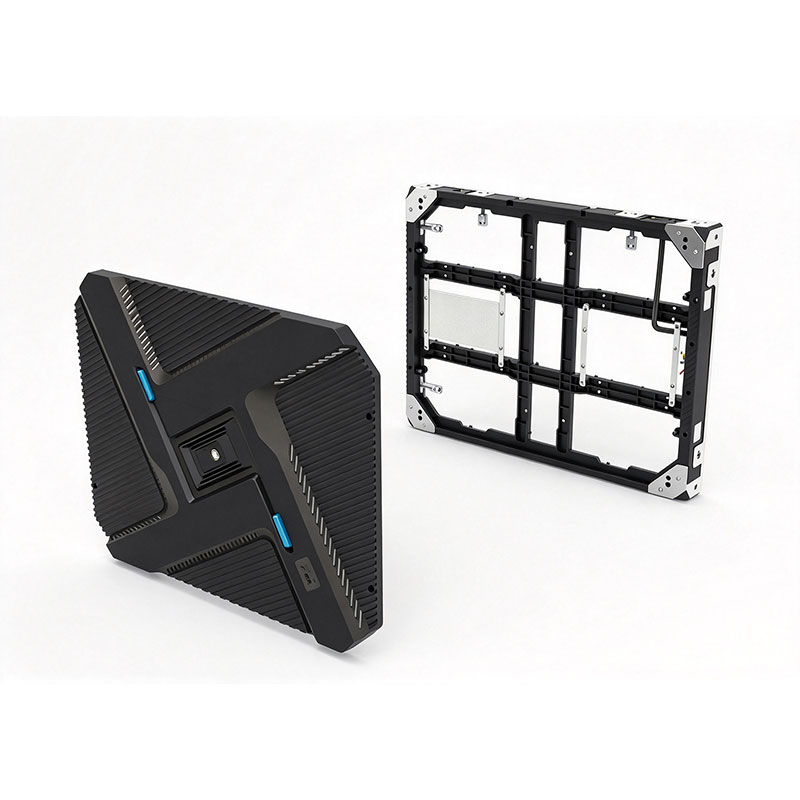

- Cabinet size
- 640*480*78mm
- IP rating
- Indoor use only; no outdoor ingress-protection rating is claimed.
01 / SPECIFICATIONS
Performance at a glance.
Technical specifications for P1.6-32S-1212-H-3840 Indoor SMD LED Module. Contact us to confirm the configuration for your project.
| Pixel pitch | 1.6mm |
|---|---|
| Brightness | ≥450cd/m² |
| Refresh rate | 3840Hz |
| Power | Module ≤30W; display ≤580W/m² |
| Resolution | Module 192*96=18432Dots; Cabinet 384*288=110592 Dots |
| Cabinet size | 640*480*78mm |
| IP rating | Indoor use only; no outdoor ingress-protection rating is claimed. |
| Brightness | ≥450cd/m² |
|---|---|
| Brightness Uniformity | >0.95 |
| Horizontal Viewing Angle | 140±10° |
| Vertical Viewing Angle | 130±10° |
| Optimal Viewing Distance | ≥2.8m |
| Refresh Rate | 3840Hz |
| Frame Rate | ≥60fps |
| Grayscale | R/G/B each 13bits |

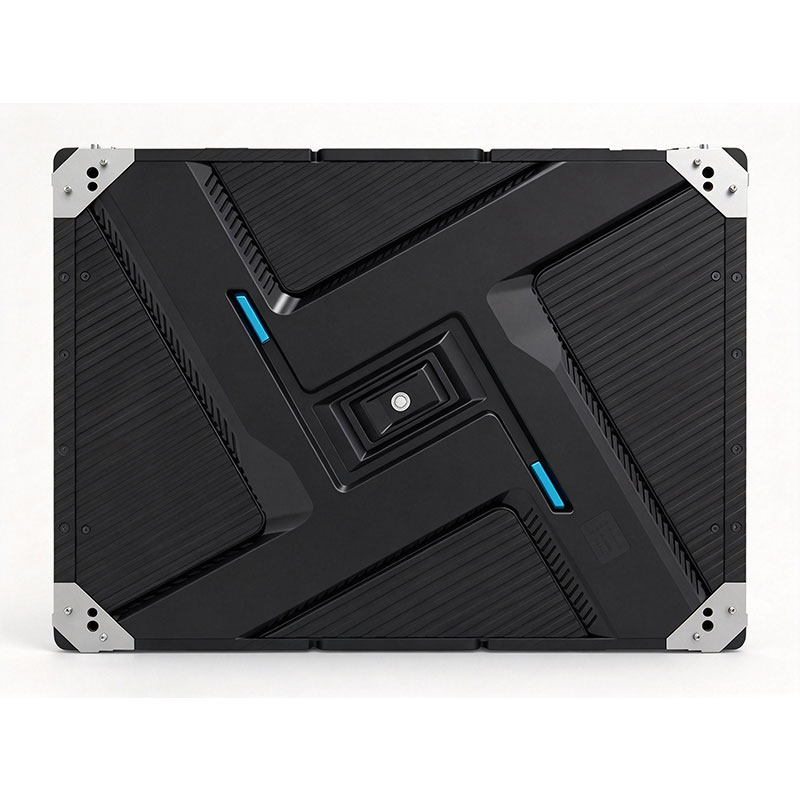

| Cabinet Dimensions | 640*480*78mm |
|---|---|
| Cabinet Resolution | 384*288=110592 Dots |
| Cabinet Area | 0.307m2 |
| Cabinet Weight | 7.67kg±0.05 |
| Maximum Power Consumption | ≤178W |
| Average Power Consumption | ≤59W |
| Pixel Pitch | 1.6mm |
|---|---|
| Pixel Density | 360000dots/m² |
| Pixel Configuration | 1R1G1B |
| LED Package | SMD1212 |
| Module Dimensions | 320*160*14.5mm |
| Module Weight | 0.47kg±0.01kg |
| Module Resolution | 192*96=18432Dots |
| Drive Method | 1/32constant-current drive |
03 / PRODUCT DESIGN & SIGNAL INTERFACE
Designed for your installation.
| Interface | HUB320 |
|---|
04 / ENGINEERING
Power architecture.
Power supply and consumption specifications for the selected configuration.
| Input Voltage | 4.2±0.1V |
|---|---|
| Maximum Current | ≤6.6A |
| Module Power | ≤30W |
| Maximum Display Power | ≤580W/m² |
| Power Distribution Capacity | ≤875W/m² |
INSTALLATION
Modules to cabinets.
ENVIRONMENT & SERVICE
Built for its working environment.
- 1.6mm fine pixel pitch for detailed indoor images
- 3840Hz refresh rate for smooth video and camera capture
- 360000dots/m² pixel density
- Wide viewing angles: 140±10° horizontal and 130±10° vertical
- HUB320 signal interface with 1/32constant-current drive
Use ESD protection during handling. Keep the module dry and within the specified temperature and humidity range. Do not connect the module directly to 220V or assemble it while powered.
| Operating Environment | Indoor |
|---|---|
| Operating Temperature | -20℃-40℃ |
| Operating Humidity | 10%-65% RH (non-condensing) |
| Protection | Indoor use only; no outdoor ingress-protection rating is claimed. |
APPLICATIONS
Visual solutions for your space.
wall mounting
hanging installation
control-room display
