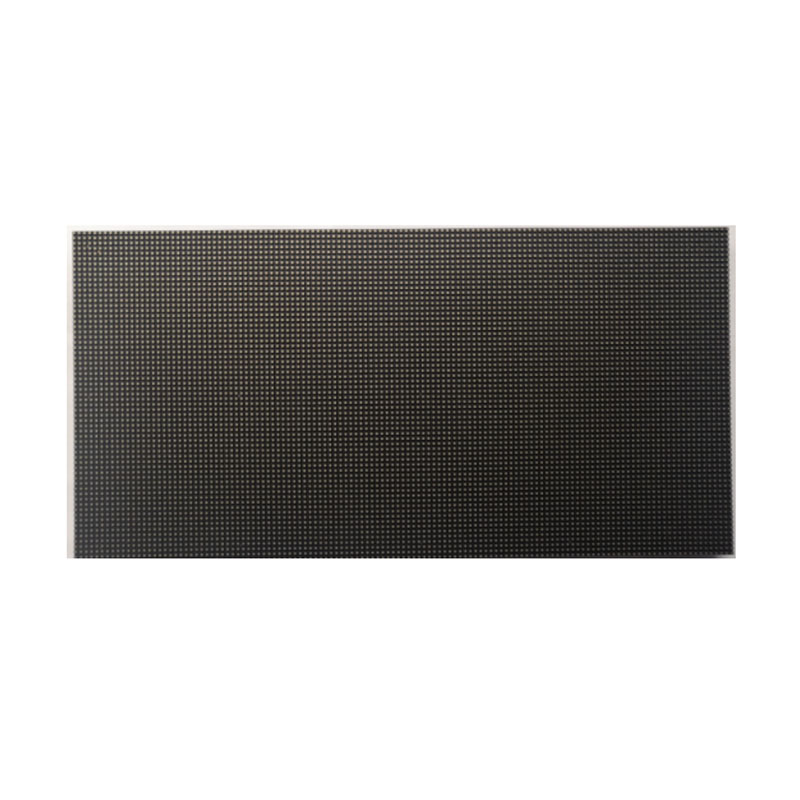

P2.5-64S-2020-H-3840 Indoor SMD LED Module

P2.5-64S-2020-H-3840 Indoor SMD LED Module

The P2.5-64S-2020-H-3840 is an indoor SMD LED display module with a 2.5mm pixel pitch, SMD2020 RGB LEDs, 1/64 scan constant-current driving and a 3840Hz refresh rate.

400cd/m² Indoor Brightness

With brightness of ≥400cd/m² and brightness uniformity greater than 0.95, the module is designed for indoor LED display applications. The horizontal viewing angle is 140°±10° and the vertical viewing angle is 130°±10°.

320 × 160mm LED Module

The module measures 320 × 160 × 15mm and provides a resolution of 128 × 64 pixels. The pixel density is 160,000 dots/m² with 8,192 pixels per module.

3840Hz High Refresh Rate

The module supports a 3840Hz refresh rate and a frame rate of ≥60 fps, providing smooth and stable video performance for indoor LED display systems.

Constant-Current Driver Technology

The module uses a HUB75 interface and 1/64 scan constant-current driving to provide stable and consistent display performance.

High Pixel Density for Finer Indoor Images

With a pixel density of 160,000 dots/m² and an optimal viewing distance of ≥4.5m, the 2.5 module is suitable for indoor LED displays that require fine image detail and short viewing distances.
