Model ： P3-32S-2020-Pro-6000
P3mm
P3-32S-2020-Pro-6000 Indoor SMD LED Module
P3‑32S‑2020‑Pro‑6000 indoor SMD LED module, 3mm pixel pitch, ≥600cd/m² brightness & 6000Hz ultra‑high refresh rate. SMD2020 RGB, HUB75, 1/32 constant‑current drive. Wide viewing angles for control‑roo
- Pixel pitch
- 3mm
- Brightness
- ≥600cd/m²
- Refresh rate
- 6000Hz
- IP rating
- Indoor use only; no outdoor ingress-protection rating is claimed.
Series · Prism Indoor
Product Specification
Built for high‑definition indoor fixed video‑wall projects, the P3‑32S‑2020‑Pro‑6000 features 3mm pixel pitch, 6000Hz ultra‑high refresh rate and ≥600cd/m² brightness. Adopting SMD2020 RGB LEDs with HUB75 interface and 1/32 constant‑current drive, it delivers flicker‑free camera‑friendly visuals with >0.95 brightness uniformity and broad viewing angles. Perfect for control‑room, wall‑mount and hanging installation.
- Pixel pitch
- 3mm
- Brightness
- ≥600cd/m²
- Refresh rate
- 6000Hz
- Power
- Module ≤20W; display ≤525W/m²
- Resolution
- Module 64*64=4096Dots; Cabinet 192*192=36864 Dots
- Cabinet size
- 576*576*77mm
- IP rating
- Indoor use only; no outdoor ingress-protection rating is claimed.
01 / SPECIFICATIONS
Performance at a glance.
Technical specifications for P3-32S-2020-Pro-6000 Indoor SMD LED Module. Contact us to confirm the configuration for your project.
| Pixel pitch | 3mm |
|---|---|
| Brightness | ≥600cd/m² |
| Refresh rate | 6000Hz |
| Power | Module ≤20W; display ≤525W/m² |
| Resolution | Module 64*64=4096Dots; Cabinet 192*192=36864 Dots |
| Cabinet size | 576*576*77mm |
| IP rating | Indoor use only; no outdoor ingress-protection rating is claimed. |
| Brightness | ≥600cd/m² |
|---|---|
| Brightness Uniformity | >0.95 |
| Horizontal Viewing Angle | 140±10° |
| Vertical Viewing Angle | 130±10° |
| Optimal Viewing Distance | ≥5.4m |
| Refresh Rate | 6000Hz |
| Frame Rate | ≥60fps |
| Grayscale | R/G/B each 14-15bits |

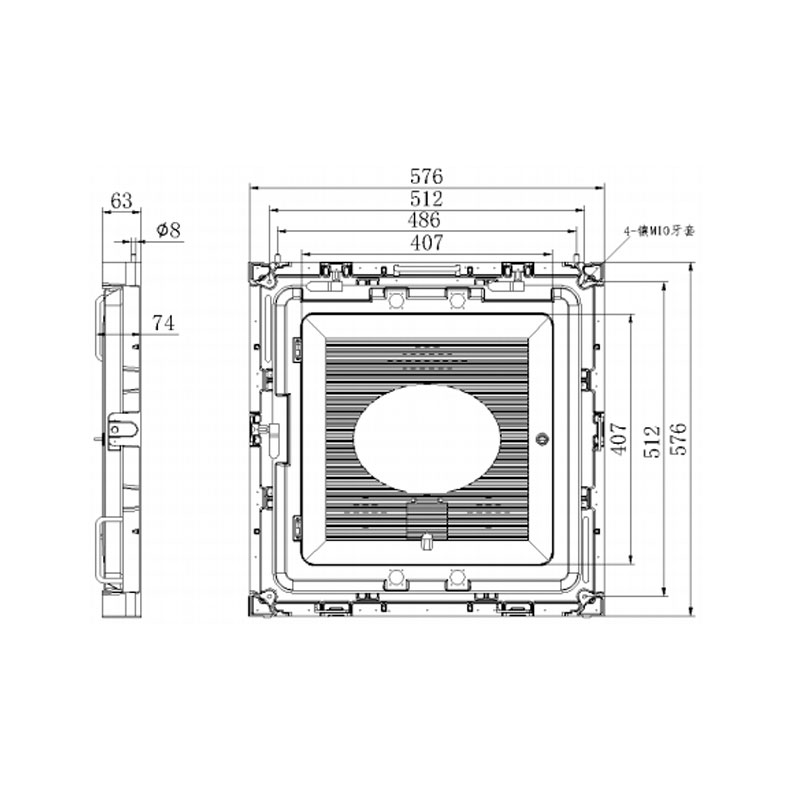

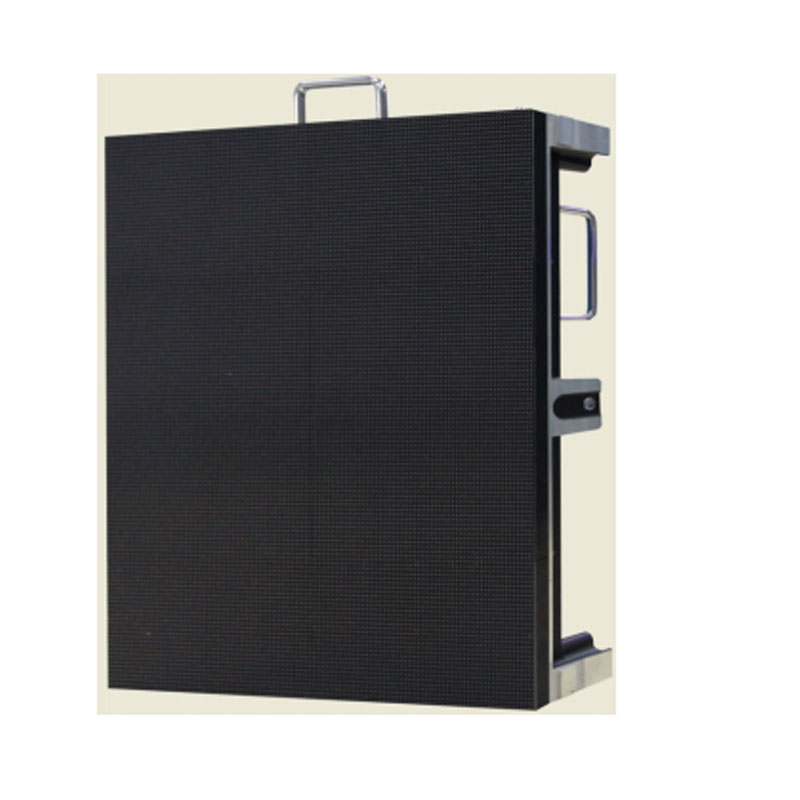

| Cabinet Dimensions | 576*576*77mm |
|---|---|
| Cabinet Resolution | 192*192=36864 Dots |
| Cabinet Area | 0.332m2 |
| Cabinet Weight | 9.3kg±0.05 |
| Maximum Power Consumption | ≤174W |
| Average Power Consumption | ≤58W |
| Pixel Pitch | 3mm |
|---|---|
| Pixel Density | 111111dots/m² |
| Pixel Configuration | 1R1G1B |
| LED Package | SMD2020 |

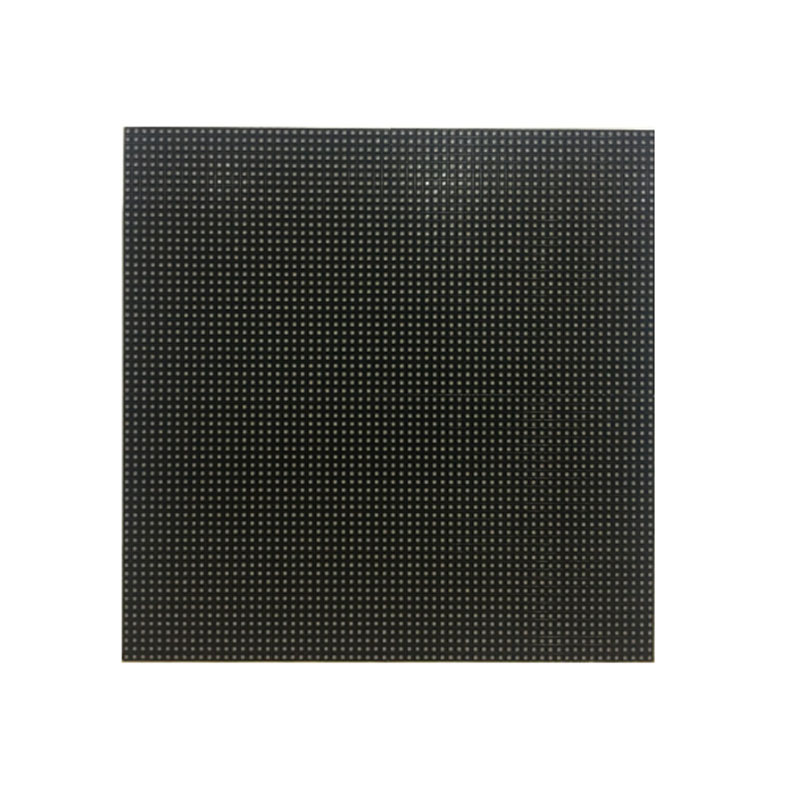

| Module Dimensions | 192*192*14mm |
| Module Weight | 0.28kg±0.01kg |
| Module Resolution | 64*64=4096Dots |
| Drive Method | 1/32constant-current drive |

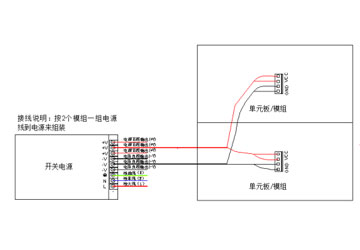

03 / PRODUCT DESIGN & SIGNAL INTERFACE
Designed for your installation.
| Interface | HUB75 |
|---|
04 / ENGINEERING
Power architecture.
Power supply and consumption specifications for the selected configuration.
| Input Voltage | 4.2±0.1V |
|---|---|
| Maximum Current | ≤4.3A |
| Module Power | ≤20W |
| Maximum Display Power | ≤525W/m² |
| Power Distribution Capacity | ≤792W/m² |
INSTALLATION
Modules to cabinets.
ENVIRONMENT & SERVICE
Built for its working environment.
- 3mm fine pixel pitch for detailed indoor images
- 6000Hz refresh rate for smooth video and camera capture
- 111111dots/m² pixel density
- Wide viewing angles: 140±10° horizontal and 130±10° vertical
- HUB75 signal interface with 1/32constant-current drive
Use ESD protection during handling. Keep the module dry and within the specified temperature and humidity range. Do not connect the module directly to 220V or assemble it while powered.
| Operating Environment | Indoor |
|---|---|
| Operating Temperature | -20℃-40℃ |
| Operating Humidity | 10%-65% RH (non-condensing) |
| Protection | Indoor use only; no outdoor ingress-protection rating is claimed. |
APPLICATIONS
Visual solutions for your space.
wall mounting
hanging installation
control-room display
