Model ： P3.0-52S-2020-H-3840
P3.0mm

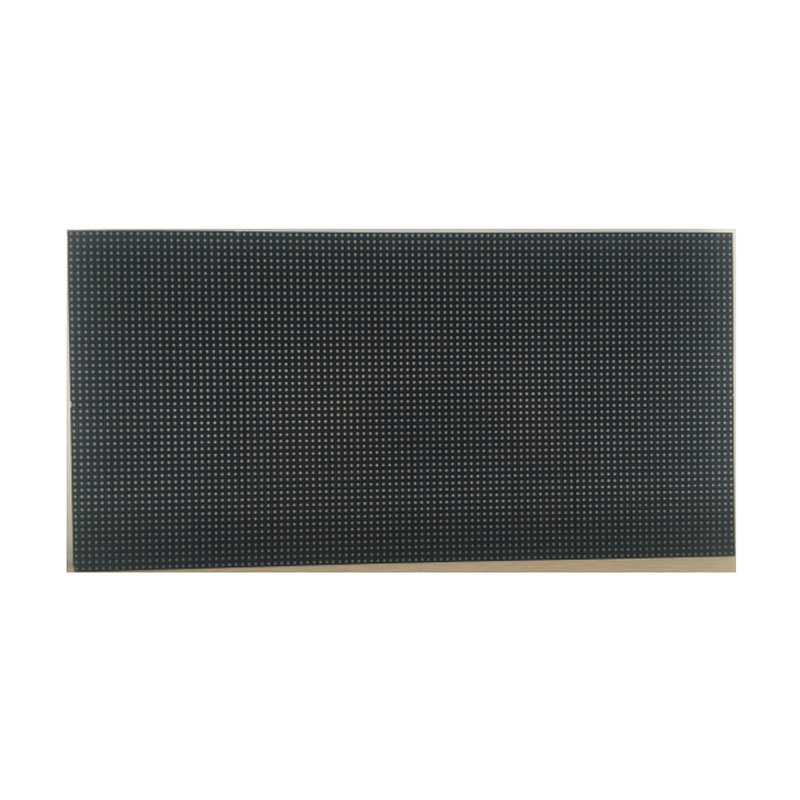

P3.0-52S-2020-H-3840 Indoor SMD LED Module
P3.0‑52S‑2020‑H‑3840 indoor SMD LED module with 3.0mm pixel pitch, ≥400cd/m² brightness and 3840Hz high refresh rate. Features SMD2020 RGB LED, wide viewing angle & 1/52 constant‑current drive. Ideal
- Pixel pitch
- 3.0mm
- Brightness
- ≥400cd/m²
- Refresh rate
- 3840Hz
- IP rating
- Indoor use only; no outdoor ingress-protection rating is claimed.
Series · Prism Indoor
Product Specification
P3.0-52S-2020-H-3840 Indoor SMD LED Module
The P3.0-52S-2020-H-3840 is an indoor SMD LED display module with a 3.0mm pixel pitch, SMD2020 RGB LEDs, 1/52 scan constant-current driving and a 3840Hz refresh rate.
400cd/m² Indoor Brightness
With brightness of ≥400cd/m² and brightness uniformity greater than 0.95, the module is designed for indoor LED display applications. The horizontal viewing angle is 140°±10° and the vertical viewing angle is 130°±10°.
320 × 160mm LED Module
The module measures 320 × 160 × 14mm and provides a resolution of 104 × 52 pixels. The pixel density is 105,625 dots/m² with 5,408 pixels per module.
3840Hz High Refresh Rate
The module supports a 3840Hz refresh rate and a frame rate of ≥60 fps, providing smooth and stable video performance for indoor LED display systems.
Constant-Current Driver Technology
The module uses a HUB75 interface and 1/52 scan constant-current driving to provide stable and consistent display performance.
High Pixel Density for Finer Indoor Images
With a pixel density of 105,625 dots/m² and an optimal viewing distance of ≥5.4m, the 3.0 module is suitable for indoor LED displays that require fine image detail and short viewing distances.
- Pixel pitch
- 3.0mm
- Brightness
- ≥400cd/m²
- Refresh rate
- 3840Hz
- Power
- Module ≤22W; display ≤413W/m²
- Resolution
- Module 104*52=5408Dots; Cabinet 208*156=32448Dots
- Cabinet size
- 640*480*78mm
- IP rating
- Indoor use only; no outdoor ingress-protection rating is claimed.
01 / SPECIFICATIONS
Performance at a glance.
Technical specifications for P3.0-52S-2020-H-3840 Indoor SMD LED Module. Contact us to confirm the configuration for your project.
| Pixel pitch | 3.0mm |
|---|---|
| Brightness | ≥400cd/m² |
| Refresh rate | 3840Hz |
| Power | Module ≤22W; display ≤413W/m² |
| Resolution | Module 104*52=5408Dots; Cabinet 208*156=32448Dots |
| Cabinet size | 640*480*78mm |
| IP rating | Indoor use only; no outdoor ingress-protection rating is claimed. |
| Brightness | ≥400cd/m² |
|---|---|
| Brightness Uniformity | >0.95 |
| Horizontal Viewing Angle | 140±10° |
| Vertical Viewing Angle | 130±10° |
| Optimal Viewing Distance | ≥5.4m |
| Refresh Rate | 3840Hz |
| Frame Rate | ≥60fps |
| Grayscale | R/G/B each 13bits |
| Cabinet Dimensions | 640*480*78mm |
|---|---|
| Cabinet Resolution | 208*156=32448Dots |
| Cabinet Area | 0.307m2 |
| Cabinet Weight | 7.37kg±0.05 |
| Maximum Power Consumption | ≤127W |
| Average Power Consumption | ≤42W |
| Pixel Pitch | 3.0mm |
|---|---|
| Pixel Density | 105625dots/m² |
| Pixel Configuration | 1R1G1B |
| LED Package | SMD2020 |
| Module Dimensions | 320*160*14mm |
| Module Weight | 0.29kg±0.01kg |
| Module Resolution | 104*52=5408Dots |
| Drive Method | 1/52constant-current drive |
03 / PRODUCT DESIGN & SIGNAL INTERFACE
Designed for your installation.
| Interface | HUB75 |
|---|
04 / ENGINEERING
Power architecture.
Power supply and consumption specifications for the selected configuration.
| Input Voltage | 4.2±0.1V |
|---|---|
| Maximum Current | ≤4.7A |
| Module Power | ≤22W |
| Maximum Display Power | ≤413W/m² |
| Power Distribution Capacity | ≤623W/m² |
INSTALLATION
Modules to cabinets.
ENVIRONMENT & SERVICE
Built for its working environment.
- 3.0mm fine pixel pitch for detailed indoor images
- 3840Hz refresh rate for smooth video and camera capture
- 105625dots/m² pixel density
- Wide viewing angles: 140±10° horizontal and 130±10° vertical
- HUB75 signal interface with 1/52constant-current drive
Use ESD protection during handling. Keep the module dry and within the specified temperature and humidity range. Do not connect the module directly to 220V or assemble it while powered.
| Operating Environment | Indoor |
|---|---|
| Operating Temperature | -20℃-40℃ |
| Operating Humidity | 10%-65% RH; dehumidification is required if humidity exceeds the specified range. |
| Protection | Indoor use only; no outdoor ingress-protection rating is claimed. |
