Model ： P3.0-52S-2020-Pro-4200
P3.0mm

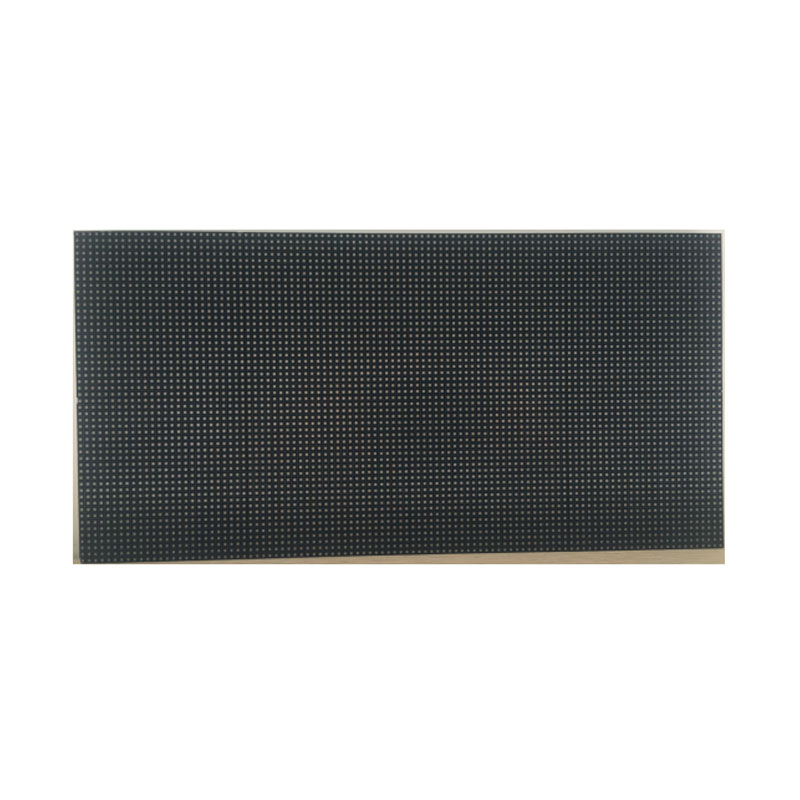

P3.0-52S-2020-Pro-4200 Indoor SMD LED Module
P3.0‑52S‑2020‑Pro‑4200 indoor SMD LED module with 3.0mm pixel pitch, ≥450cd/m² brightness & 4200Hz high refresh rate. 320×160mm size, SMD2020 RGB, HUB75 interface & 1/26 constant‑current drive. Wide v
- Pixel pitch
- 3.0mm
- Brightness
- ≥450cd/m²
- Refresh rate
- 4200Hz
- IP rating
- Indoor use only; no outdoor ingress-protection rating is claimed.
Series · Prism Indoor
Product Specification
P3.0-52S-2020-Pro-4200 Indoor SMD LED Module
The P3.0-52S-2020-Pro-4200 is an indoor SMD LED display module with 3.0mm pixel pitch, SMD2020 RGB LEDs, 1/26 scan constant-current driving and a 4200Hz refresh rate.
450 cd/m² Indoor Brightness
With brightness of ≥450 cd/m² and brightness uniformity greater than 0.95, the module is designed for indoor LED display installations.
320 × 160mm LED Module
Each module measures 320 × 160 × 14mm and provides a resolution of 104 × 52 pixels. The pixel density is 105,625 dots/m² with 5,408 pixels per module.
4200Hz High Refresh Rate
The module supports a 4200Hz refresh rate and ≥60 fps frame rate for stable indoor video performance.
Constant-Current Driver Technology
The HUB75 interface and 1/26 scan constant-current driving provide stable display performance.
High Pixel Density for Detailed Indoor Images
With 105,625 dots/m² and an optimal viewing distance of ≥5.4m, the module suits detailed indoor displays.
- Pixel pitch
- 3.0mm
- Brightness
- ≥450cd/m²
- Refresh rate
- 4200Hz
- Power
- Module ≤22W; display ≤380W/m²
- Resolution
- Module 104*52=5408Dots; Cabinet 208*156=32448Dots
- Cabinet size
- 640*480*84mm
- IP rating
- Indoor use only; no outdoor ingress-protection rating is claimed.
01 / SPECIFICATIONS
Performance at a glance.
Technical specifications for P3.0-52S-2020-Pro-4200 Indoor SMD LED Module. Contact us to confirm the configuration for your project.
| Pixel pitch | 3.0mm |
|---|---|
| Brightness | ≥450cd/m² |
| Refresh rate | 4200Hz |
| Power | Module ≤22W; display ≤380W/m² |
| Resolution | Module 104*52=5408Dots; Cabinet 208*156=32448Dots |
| Cabinet size | 640*480*84mm |
| IP rating | Indoor use only; no outdoor ingress-protection rating is claimed. |
| Brightness | ≥450cd/m² |
|---|---|
| Brightness Uniformity | >0.95 |
| Horizontal Viewing Angle | 140±10° |
| Vertical Viewing Angle | 130±10° |
| Optimal Viewing Distance | ≥5.4m |
| Refresh Rate | 4200Hz |
| Frame Rate | ≥60fps |
| Grayscale | R/G/B each 14-15bits |
| Cabinet Dimensions | 640*480*84mm |
|---|---|
| Cabinet Resolution | 208*156=32448Dots |
| Cabinet Area | 0.307m2 |
| Cabinet Weight | 7.55kg±0.05 |
| Maximum Power Consumption | ≤127W |
| Average Power Consumption | ≤42W |
| Pixel Pitch | 3.0mm |
|---|---|
| Pixel Density | 105625dots/m² |
| Pixel Configuration | 1R1G1B |
| LED Package | SMD2020 |
| Module Dimensions | 320*160*14mm |
| Module Weight | 0.32kg±0.01kg |
| Module Resolution | 104*52=5408Dots |
| Drive Method | 1/26constant-current drive |
03 / PRODUCT DESIGN & SIGNAL INTERFACE
Designed for your installation.
| Interface | HUB75 |
|---|
04 / ENGINEERING
Power architecture.
Power supply and consumption specifications for the selected configuration.
| Input Voltage | 4.2±0.1V |
|---|---|
| Maximum Current | ≤4.7A |
| Module Power | ≤22W |
| Maximum Display Power | ≤380W/m² |
| Power Distribution Capacity | ≤550W/m² |
INSTALLATION
Modules to cabinets.
ENVIRONMENT & SERVICE
Built for its working environment.
- 3.0mm fine pixel pitch for detailed indoor images
- 4200Hz refresh rate for smooth video and camera capture
- 105625dots/m² pixel density
- Wide viewing angles: 140±10° horizontal and 130±10° vertical
- HUB75 signal interface with 1/26constant-current drive
Use ESD protection during handling. Keep the module dry and within the specified temperature and humidity range. Do not connect the module directly to 220V or assemble it while powered.
| Operating Environment | Indoor |
|---|---|
| Operating Temperature | -20℃-40℃ |
| Operating Humidity | 10%-65% RH; dehumidification is required if humidity exceeds the specified range. |
| Protection | Indoor use only; no outdoor ingress-protection rating is claimed. |
APPLICATIONS
Visual solutions for your space.
wall mounting
hanging installation
control-room display
