Model ： P4-20S-2020-Pro-6000
P4mm
P4-20S-2020-Pro-6000 Indoor SMD LED Module
P4‑20S‑2020‑Pro‑6000 indoor SMD LED module,4mm pixel pitch,6000Hz refresh rate,≥600 cd/m² brightness. SMD2020 RGB,1/20 constant‑current drive,HUB75 interface for control‑room & indoor fixed‑wall insta
- Pixel pitch
- 4mm
- Brightness
- ≥600cd/m²
- Refresh rate
- 6000Hz
- IP rating
- Indoor use only; no outdoor ingress-protection rating is claimed.
Series · Prism Indoor
Product Specification
P4-20S-2020-Pro-6000 Indoor SMD LED Module

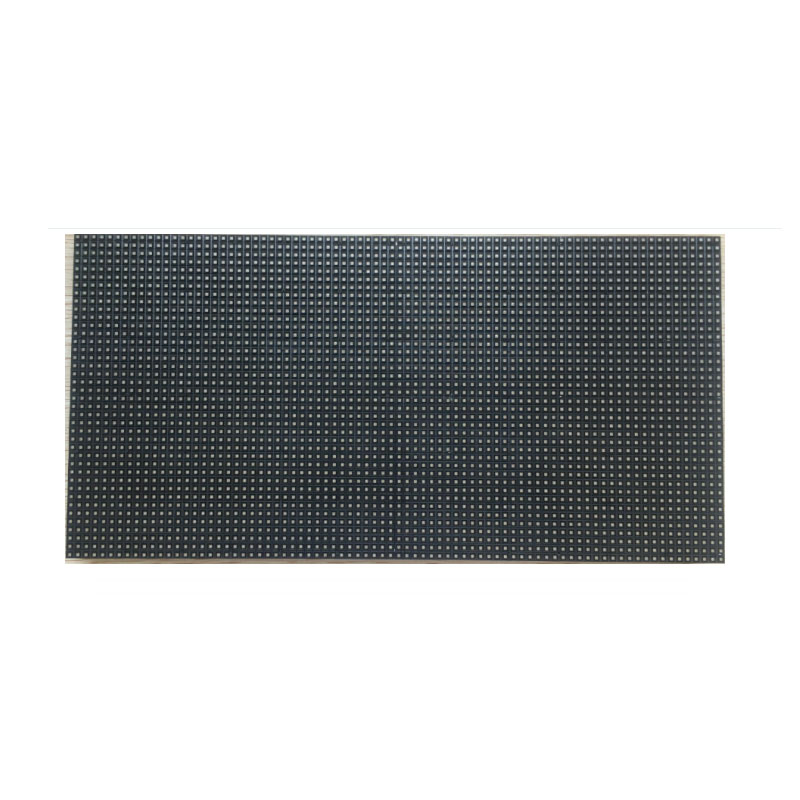

The P4-20S-2020-Pro-6000 is an indoor SMD LED display module with 4mm pixel pitch, SMD2020 RGB LEDs, 1/20 scan constant-current driving and a 6000Hz refresh rate.
600 cd/m² Indoor Brightness
Brightness of ≥600 cd/m² and uniformity above 0.95 support clear indoor images.
320 × 160mm LED Module
The 320 × 160 × 14mm module provides 80 × 40 pixels, 62,500 dots/m² and 3,200 pixels per module.
6000Hz High Refresh Rate
A 6000Hz refresh rate and ≥60 fps frame rate provide stable video and camera performance.
Constant-Current Driver Technology
The HUB75 interface and 1/20 scan constant-current driving deliver consistent output.
Reliable Indoor Display Performance
With an optimal viewing distance of ≥7.2m, this module suits indoor fixed installations and control-room displays.
- Pixel pitch
- 4mm
- Brightness
- ≥600cd/m²
- Refresh rate
- 6000Hz
- Power
- Module ≤24W; display ≤465W/m²
- Resolution
- Module 80*40=3200Dots; Cabinet 160*120=19200Dots
- Cabinet size
- 640*480*84mm
- IP rating
- Indoor use only; no outdoor ingress-protection rating is claimed.
01 / SPECIFICATIONS
Performance at a glance.
Technical specifications for P4-20S-2020-Pro-6000 Indoor SMD LED Module. Contact us to confirm the configuration for your project.
| Pixel pitch | 4mm |
|---|---|
| Brightness | ≥600cd/m² |
| Refresh rate | 6000Hz |
| Power | Module ≤24W; display ≤465W/m² |
| Resolution | Module 80*40=3200Dots; Cabinet 160*120=19200Dots |
| Cabinet size | 640*480*84mm |
| IP rating | Indoor use only; no outdoor ingress-protection rating is claimed. |
| Brightness | ≥600cd/m² |
|---|---|
| Brightness Uniformity | >0.95 |
| Horizontal Viewing Angle | 140±10° |
| Vertical Viewing Angle | 130±10° |
| Optimal Viewing Distance | ≥7.2m |
| Refresh Rate | 6000Hz |
| Frame Rate | ≥60fps |
| Grayscale | R/G/B each 14-15bits |

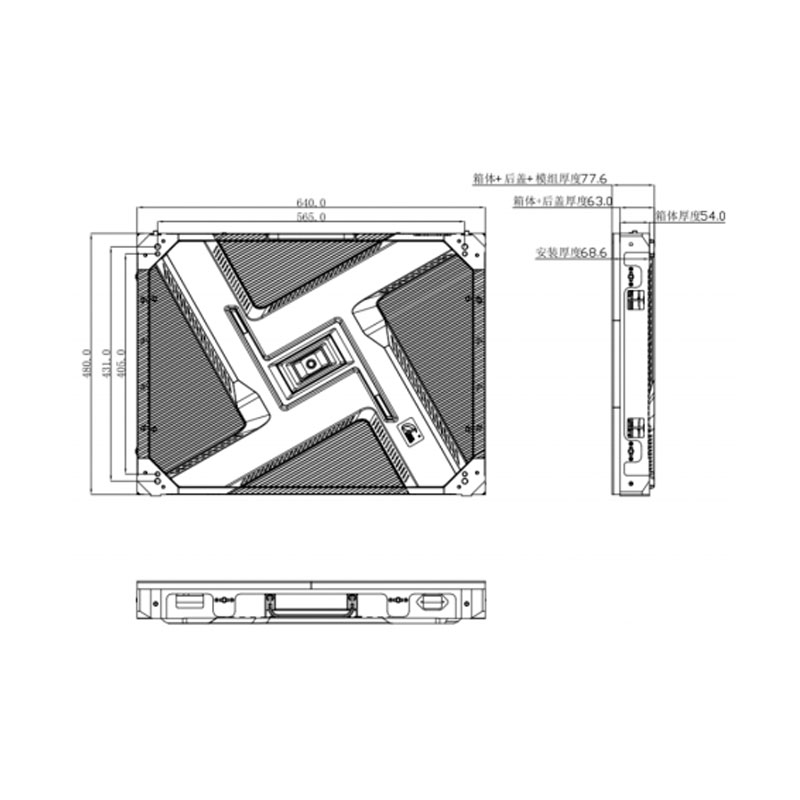

| Cabinet Dimensions | 640*480*84mm |
|---|---|
| Cabinet Resolution | 160*120=19200Dots |
| Cabinet Area | 0.307m2 |
| Cabinet Weight | 6.95kg±0.05 |
| Maximum Power Consumption | ≤143W |
| Average Power Consumption | ≤48W |
| Pixel Pitch | 4mm |
|---|---|
| Pixel Density | 62500dots/m² |
| Pixel Configuration | 1R1G1B |
| LED Package | SMD2020 |

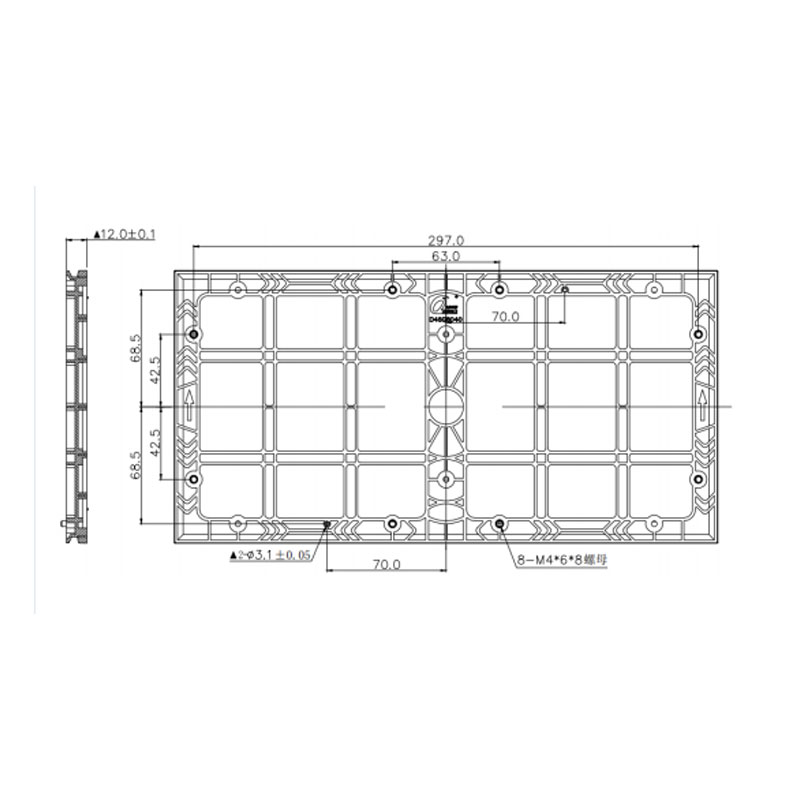

| Module Dimensions | 320*160*14mm |
| Module Weight | 0.35kg±0.01kg |
| Module Resolution | 80*40=3200Dots |
| Drive Method | 1/20constant-current drive |
03 / PRODUCT DESIGN & SIGNAL INTERFACE
Designed for your installation.
| Interface | HUB75 |
|---|
04 / ENGINEERING
Power architecture.
Power supply and consumption specifications for the selected configuration.
| Input Voltage | 4.2±0.1V |
|---|---|
| Maximum Current | ≤5.3A |
| Module Power | ≤24W |
| Maximum Display Power | ≤465W/m² |
| Power Distribution Capacity | ≤701W/m² |
INSTALLATION
Modules to cabinets.
ENVIRONMENT & SERVICE
Built for its working environment.
- 4mm fine pixel pitch for detailed indoor images
- 6000Hz refresh rate for smooth video and camera capture
- 62500dots/m² pixel density
- Wide viewing angles: 140±10° horizontal and 130±10° vertical
- HUB75 signal interface with 1/20constant-current drive
Use ESD protection during handling. Keep the module dry and within the specified temperature and humidity range. Do not connect the module directly to 220V or assemble it while powered.
| Operating Environment | Indoor |
|---|---|
| Operating Temperature | -20℃-40℃ |
| Operating Humidity | 10%-65% RH (non-condensing) |
| Protection | Indoor use only; no outdoor ingress-protection rating is claimed. |
APPLICATIONS
Visual solutions for your space.
wall mounting
hanging installation
control-room display
TECHNICAL RESOURCES
Product documentation.
p4-20s-2020-pro-6000-indoor-led-module
