Model ： R2-40S-1515-Pro-6000
P2mm

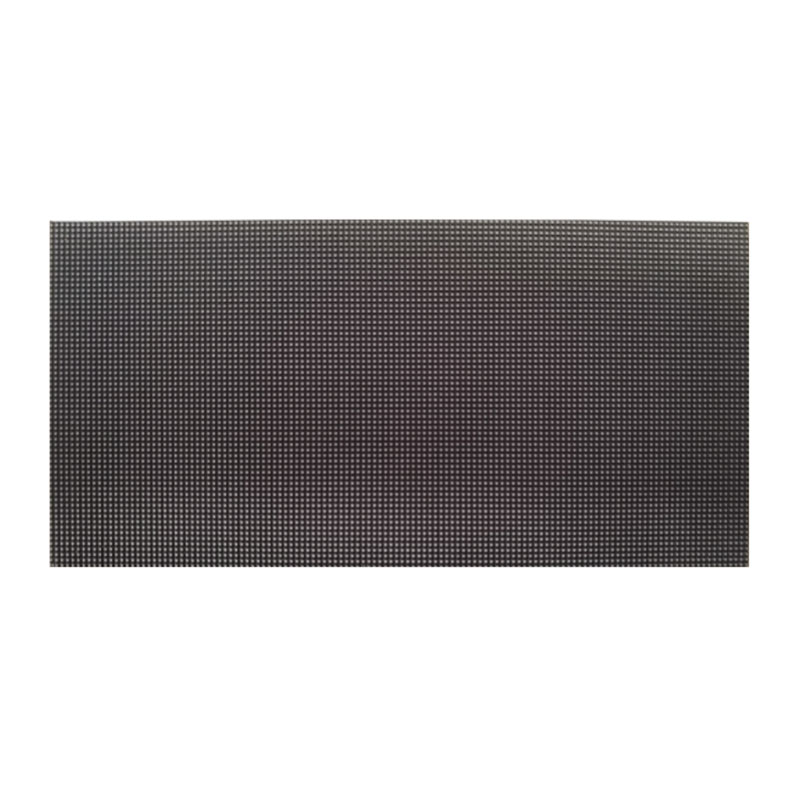

R2-40S-1515-Pro-6000 Indoor Flexible LED Module
R2‑40S‑1515‑Pro‑6000 indoor flexible LED module with 2mm pixel pitch, 6000Hz refresh rate and ≥500 cd/m² brightness. SMD1515 RGB, 1/40 constant‑current drive, HUB75 interface. Perfect for indoor curve
- Pixel pitch
- 2mm
- Brightness
- ≥500cd/m²
- Refresh rate
- 6000Hz
- IP rating
- Indoor use only; no outdoor ingress-protection rating is claimed.
Series · Prism Indoor
Product Specification
R2-40S-1515-Pro-6000 Indoor Flexible LED Module
The R2-40S-1515-Pro-6000 is an indoor flexible LED display module with 2mm pixel pitch, SMD1515 RGB LEDs, 1/40 scan constant-current driving and a 6000Hz refresh rate.
500cd/m² Indoor Brightness
With brightness of ≥500cd/m² and brightness uniformity greater than 0.95, the module is designed for indoor LED display installations.
320 × 160mm LED Module

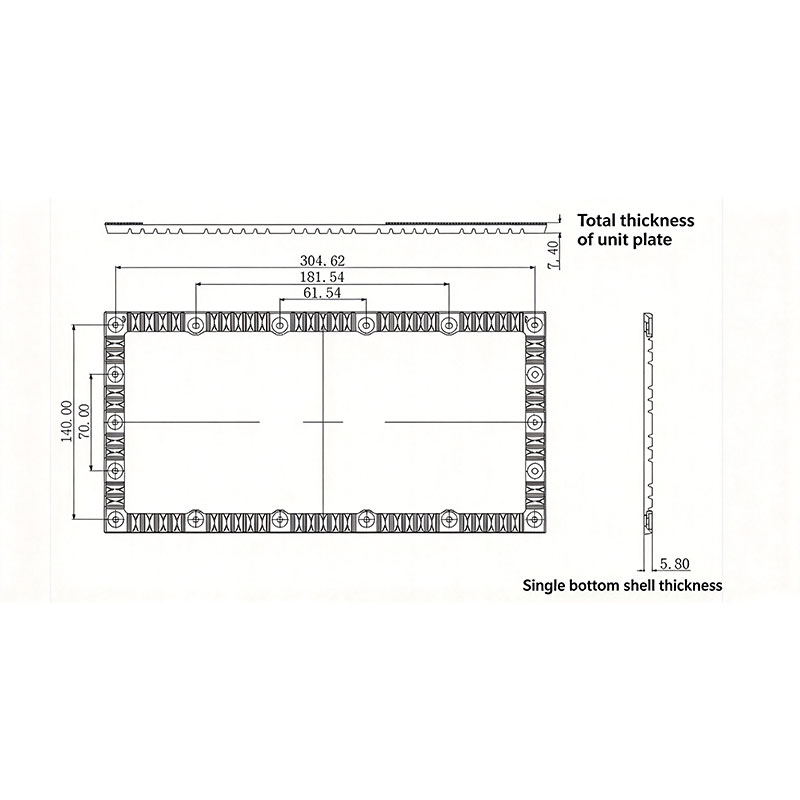

Each module measures 320 × 160 × 7.5mm and provides a resolution of 160 × 80 = 12800Dots. The pixel density is 250,000 dots/m².
6000Hz High Refresh Rate
The module supports a refresh rate of 6000Hz and a frame rate of ≥60 fps, providing stable image performance for indoor LED display systems.
Constant-Current Driver Technology
The HUB75 interface and 1/40 scan constant-current driving provide stable and consistent display performance.
High Pixel Density for Detailed Indoor Images
With a pixel density of 250,000 dots/m² and an optimal viewing distance of ≥3.6m, the module is suitable for detailed indoor LED displays.
- Pixel pitch
- 2mm
- Brightness
- ≥500cd/m²
- Refresh rate
- 6000Hz
- Power
- Module ≤14W; display ≤281W/m²
- Resolution
- Module 160*80=12800Dots
- IP rating
- Indoor use only; no outdoor ingress-protection rating is claimed.
01 / SPECIFICATIONS
Performance at a glance.
Technical specifications for R2-40S-1515-Pro-6000 Indoor Flexible LED Module. Contact us to confirm the configuration for your project.
| Pixel pitch | 2mm |
|---|---|
| Brightness | ≥500cd/m² |
| Refresh rate | 6000Hz |
| Power | Module ≤14W; display ≤281W/m² |
| Resolution | Module 160*80=12800Dots |
| Cabinet size | |
| IP rating | Indoor use only; no outdoor ingress-protection rating is claimed. |
| Brightness | ≥500cd/m² |
|---|---|
| Brightness Uniformity | >0.95 |
| Horizontal Viewing Angle | 140±10° |
| Vertical Viewing Angle | 130±10° |
| Optimal Viewing Distance | ≥3.6m |
| Refresh Rate | 6000Hz |
| Frame Rate | ≥60fps |
| Grayscale | R/G/B each 14-16bits |
| Pixel Pitch | 2mm |
|---|---|
| Pixel Density | 250000dots/m² |
| Pixel Configuration | 1R1G1B |
| LED Package | SMD1515 |
| Module Dimensions | 320*160*7.5mm |
| Module Weight | 0.27kg±0.01kg |
| Module Resolution | 160*80=12800Dots |
| Drive Method | 1/40constant-current drive |
03 / PRODUCT DESIGN & SIGNAL INTERFACE
Designed for your installation.
| Interface | HUB75 |
|---|
04 / ENGINEERING
Power architecture.
Power supply and consumption specifications for the selected configuration.
| Input Voltage | 4.2±0.1V |
|---|---|
| Maximum Current | ≤3.2A |
| Module Power | ≤14W |
| Maximum Display Power | ≤281W/m² |
| Power Distribution Capacity | ≤424W/m² |
INSTALLATION
Modules to cabinets.
ENVIRONMENT & SERVICE
Built for its working environment.
- 2mm fine pixel pitch for detailed indoor images
- 6000Hz refresh rate for smooth video and camera capture
- 250000dots/m² pixel density
- Wide viewing angles: 140±10° horizontal and 130±10° vertical
- HUB75 signal interface with 1/40constant-current drive
Use ESD protection during handling. Keep the module dry and within the specified temperature and humidity range. Do not connect the module directly to 220V or assemble it while powered.
| Operating Environment | Indoor |
|---|---|
| Operating Temperature | -20℃-40℃ |
| Operating Humidity | 10%-65% RH (non-condensing) |
| Protection | Indoor use only; no outdoor ingress-protection rating is claimed. |
APPLICATIONS
Visual solutions for your space.

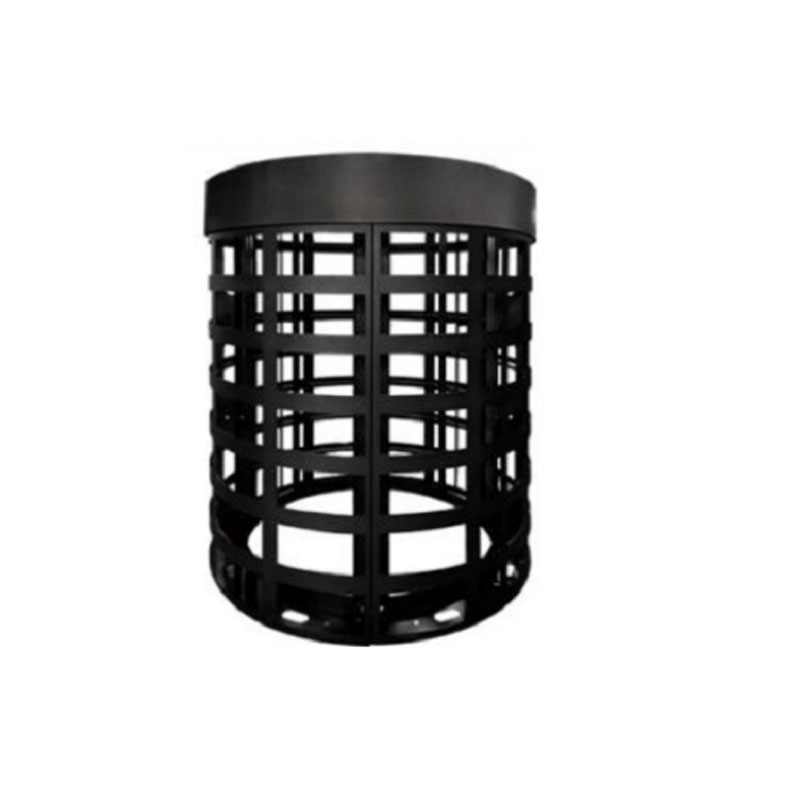

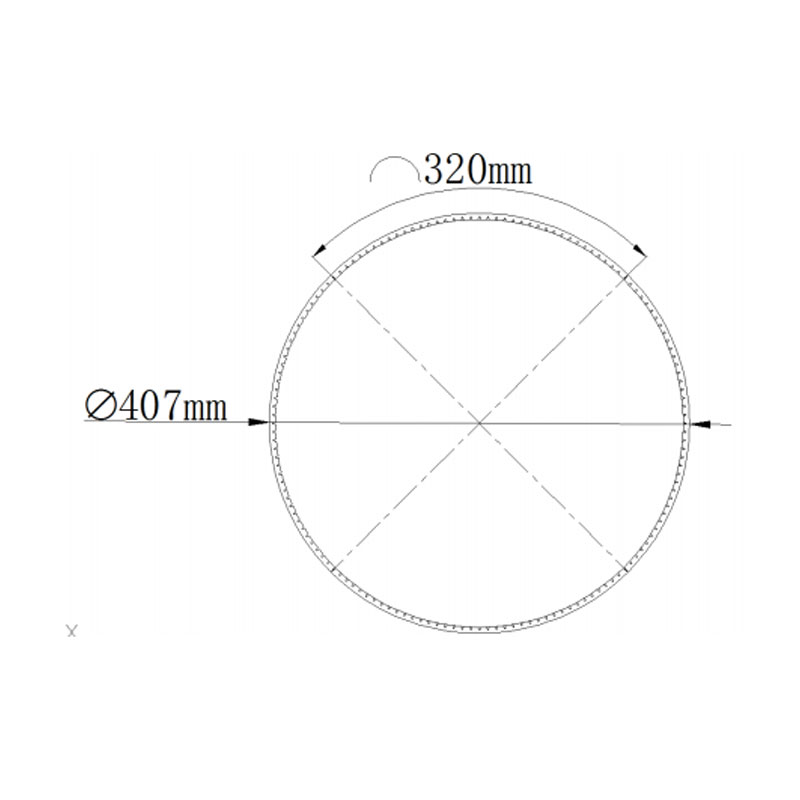

column,
creative-shape
custom installations
