Model ： XC0.7 H-V1
P0.7mm

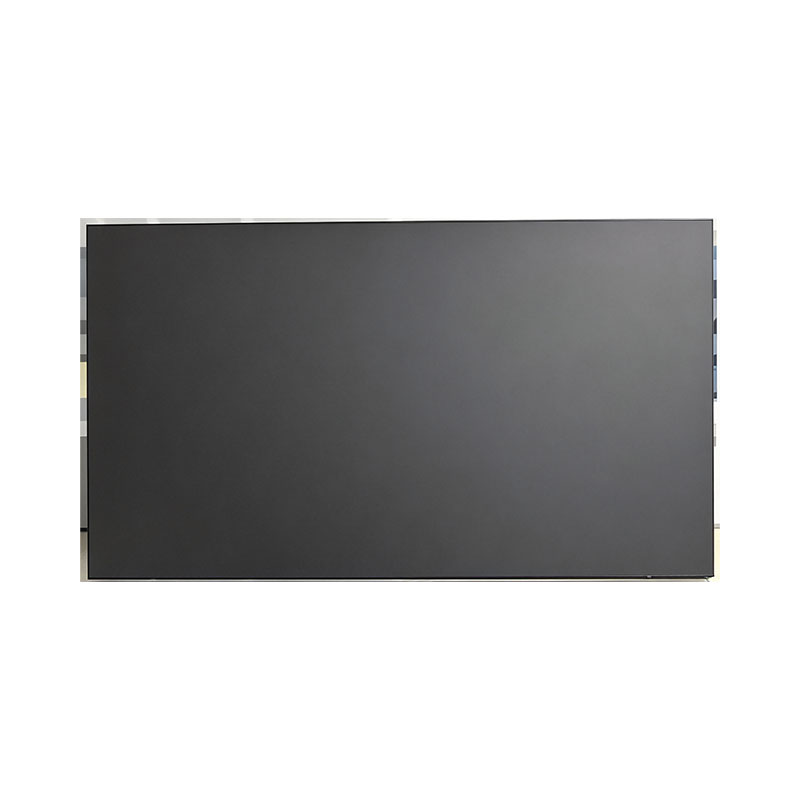

XC0.7 H 0.7mm Pixel Pitch COB Mini LED Display Cabinet, Indoor Full Color
XC0.7 H indoor COB Mini LED display cabinet with 0.7mm pixel pitch, 1R1G1B flip chip, common cathode design, 600*337.5mm cabinet size, high refresh rate 3840Hz, for control room, exhibition & high-end
- Pixel pitch
- 0.7mm
- Brightness
- ≥600 cd/m²
- Refresh rate
- 3840 Hz
- IP rating
- Indoor use, no IP rating
Series · Prism Indoor
Product Specification
This XC0.7 H indoor COB Mini LED video wall is an ultra-fine pitch display solution built for high-end indoor visual projects. Adopting common cathode flip-chip COB technology, it delivers brilliant, consistent images with low power consumption. The front-maintenance cabinet design makes on-site installation and quick repairs simple without dismantling the whole screen.
With a flicker-free high refresh rate and wide viewing angle, it performs perfectly under camera shooting, making it ideal for broadcast and studio environments. It is widely used in control rooms, exhibition halls, corporate lobbies, high-end retail spaces and museums. We support OEM & ODM customization to meet your custom video wall dimension and project requirements.
- Pixel pitch
- 0.7mm
- Brightness
- ≥600 cd/m²
- Refresh rate
- 3840 Hz
- Power
- Average:140W/㎡
- Resolution
- 768 × 432
- Cabinet size
- 600×337.5×39.7 mm
- IP rating
- Indoor use, no IP rating
01 / SPECIFICATIONS
Performance at a glance.
Technical specifications for XC0.7 H 0.7mm Pixel Pitch COB Mini LED Display Cabinet, Indoor Full Color. Contact us to confirm the configuration for your project.
| Pixel pitch | 0.7mm |
|---|---|
| Brightness | ≥600 cd/m² |
| Refresh rate | 3840 Hz |
| Power | Average:140W/㎡ |
| Resolution | 768 × 432 |
| Cabinet size | 600×337.5×39.7 mm |
| IP rating | Indoor use, no IP rating |
| Pixel Pitch | 0.7mm |
|---|---|
| Pixel Configuration | 1R1G1B |
| Pixel Density | 1638400 dots/㎡ |
| White Balance Brightness | ≥600 cd/m² |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 160° |
| Brightness Uniformity | ≥97% |
| Gray Scale | 13 bits |
| Refresh Rate | 3840 Hz |
| Average Power Consumption | 140 W/m² |
| Peak Power Consumption | 420 W/m² |
| Cabinet Dimension | 600×337.5×39.7 mm |
|---|---|
| Cabinet Resolution | 768 × 432 |
| Cabinet Area | 0.2025 ㎡ |
| LED Packaging | Flip Chip COB, Common Cathode |
| Working Temperature | -10℃ ~ +40℃ |
| Storage Temperature | -40℃ ~ +60℃ |
| Working Humidity | 10~90%RH |
| Storage Humidity | 10~60%RH |
| Typical Lifespan | ≥50000 hrs |

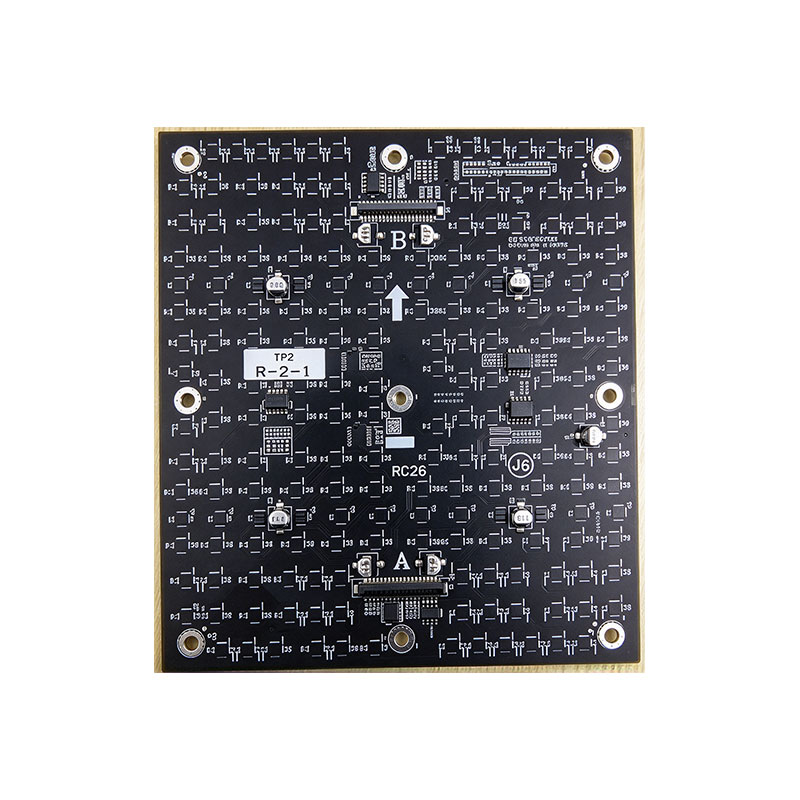

| Module Size | 150×168.75 mm |
|---|---|
| Pixel Configuration | 1R1G1B |
| LED Type | Flip Chip COB |
| Drive IC | Common Cathode Constant Current IC |
| Maintenance Type | Front Maintenance |
03 / PRODUCT DESIGN & SIGNAL INTERFACE
Designed for your installation.
| Signal Cable | CAT5e UTP Cable, 15m, 568B, Gold-plated 6U |
|---|---|
| Transmission Method | Ethernet Signal Transmission |
04 / ENGINEERING
Power architecture.
Power supply and consumption specifications for the selected configuration.
| Input Voltage | AC 220V |
|---|---|
| Main Power Cable | 3*2.5mm², 10m, Both ends stripped 50mm |
| Distribution Power Consumption | 538 W/㎡ |
| Average Power Consumption | 140 W/㎡ |
| Peak Power Consumption | 420 W/㎡ |
INSTALLATION
Modules to cabinets.
ENVIRONMENT & SERVICE
Built for its working environment.
- Common cathode COB packaging, low power consumption
- 0.7mm fine pixel pitch, high pixel density 1,638,400 dots/㎡
- Flip chip LED, excellent heat dissipation & stability
- Front maintenance design, easy installation and repair
- 3840Hz high refresh rate, flicker-free for camera shooting
- 160° wide viewing angle both horizontally and vertically
- 13-bit gray scale, rich color performance
- High brightness uniformity ≥97%
ESD protection required, wear rubber gloves when handling. Do not wipe the panel with alcohol or organic solvents; use clean water and dust-free cloth only. Store in dry environment. If stored over 1 month, perform 6-hour step-up aging before use. Keep away from water, corrosive gas and strong vibration. Complete grounding and lightning protection during installation, inspect grounding system every 6 months.
| Working Temperature | -10℃ ~ +40℃ |
|---|---|
| Storage Temperature | -40℃ ~ +60℃ |
| Working Humidity | 10~90%RH |
| Storage Humidity | 10~60%RH |
| Typical Lifespan | ≥50000 hrs |
APPLICATIONS
Visual solutions for your space.
Broadcast studio
Exhibition hall
Corporate lobby
High-end retail store
Conference room
Museum
Luxury showroom
