Model ： XC1.2 H-V1
P1.2mm
XC1.2 H COB Mini LED Display Unit, 600×337.5mm Common Anode Indoor Screen
XC1.2 H COB Mini LED display cabinet, 600×337.5mm indoor full color screen, common anode flip chip, 1.2mm pixel pitch, front service design for control room and exhibition projects, custom sizes avail
- Pixel pitch
- 1.2mm
- Brightness
- ≥600 cd/m²
- Refresh rate
- 3840Hz
- IP rating
- Indoor application, no IP rating
Series · Nova Outdoor
Product Specification
Indoor XC1.2 H COB Mini LED cabinet, 600×337.5mm, 1R1G1B flip-chip common anode design. Pixel pitch 1.2mm, resolution 480×270 per cabinet, pixel density 640000 dots/㎡. Front maintenance with suction cup tool, 160° wide viewing angle, ≥600 cd/㎡ white balance brightness. Suitable for control rooms, enterprise exhibition halls, retail & broadcast applications. OEM & ODM customization available.
- Pixel pitch
- 1.2mm
- Brightness
- ≥600 cd/m²
- Refresh rate
- 3840Hz
- Power
- Peak: 525W/㎡
- Resolution
- 480×270 per cabinet
- Cabinet size
- 600×337.5×39.7mm
- IP rating
- Indoor application, no IP rating
01 / SPECIFICATIONS
Performance at a glance.
Technical specifications for XC1.2 H COB Mini LED Display Unit, 600×337.5mm Common Anode Indoor Screen. Contact us to confirm the configuration for your project.
| Pixel pitch | 1.2mm |
|---|---|
| Brightness | ≥600 cd/m² |
| Refresh rate | 3840Hz |
| Power | Peak: 525W/㎡ |
| Resolution | 480×270 per cabinet |
| Cabinet size | 600×337.5×39.7mm |
| IP rating | Indoor application, no IP rating |
| Pixel Pitch | 1.2mm |
|---|---|
| Pixel Configuration | 1R1G1B |
| Pixel Density | 640000 dots/㎡ |
| White Balance Brightness | ≥600 cd/m² |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 160° |
| Brightness Uniformity | ≥95% |
| Gray Scale | 13 bit |
| Refresh Rate | 3840Hz |
| Driving Mode | Constant current drive |
| Peak Power Consumption | 525 W/㎡ |
| Average Power Consumption | 117 W/㎡ |
| Operating Temperature | -10~40℃ |
| Storage Temperature | -40~60℃ |
| Cabinet Resolution | 480×270 |
|---|---|

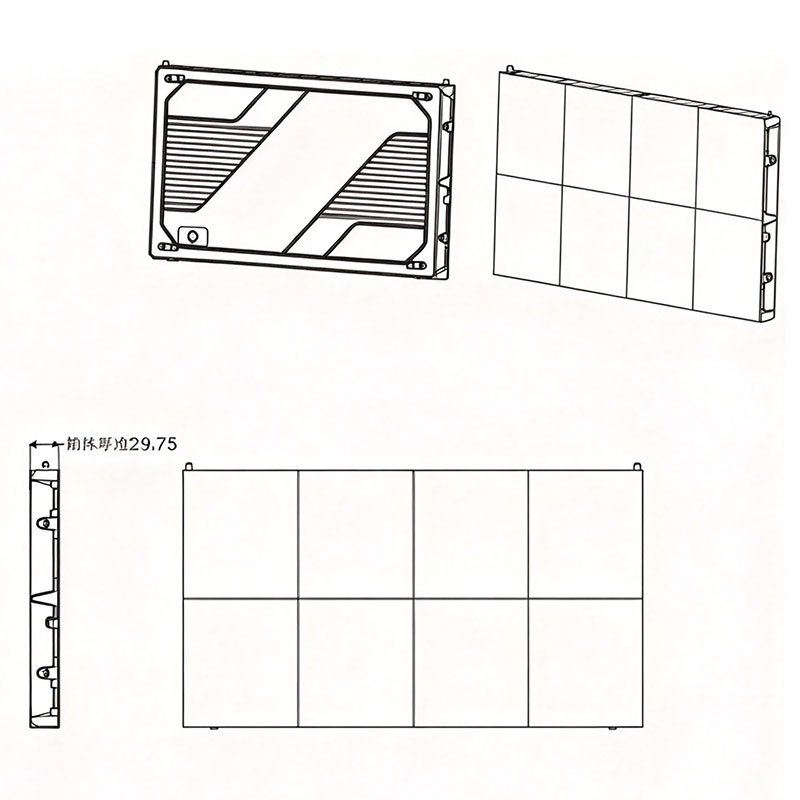

| Cabinet Dimension | 600×337.5×39.7mm (including modules) |
| Cabinet Area | 0.2025 ㎡ |
| LED Packaging | Flip-chip COB |
| Power Supply | AC220V |
| Lifespan | ≥50000 hrs |
| Operating Humidity | 10~90%RH |
| Storage Humidity | 10~60%RH |
| Maintenance Type | Front Maintenance |
| Module Dimension | 150×168.75mm |
|---|---|
| LED Packaging | Flip-chip COB |
| Pixel Configuration | 1R1G1B |
| Driver IC | SSOP constant current IC |
| Maintenance Type | Front maintenance |
03 / PRODUCT DESIGN & SIGNAL INTERFACE
Designed for your installation.
| Transmission Cable | Cat5e unshielded network cable |
|---|---|
| Cable Specification | 568B, gold-plated, 6U |
| Signal Transmission | Network signal transmission |
04 / ENGINEERING
Power architecture.
Power supply and consumption specifications for the selected configuration.
| Input Voltage | AC220V |
|---|---|
| Main Power Cord | 3*2.5mm² power cable |
| Peak Power Consumption | 525W/㎡ |
| Average Power Consumption | 117W/㎡ |
INSTALLATION
Modules to cabinets.
ENVIRONMENT & SERVICE
Built for its working environment.
- Flip-chip COB packaging, common anode design
- 160° ultra-wide horizontal & vertical viewing angle
- 3840Hz high refresh rate, 13-bit gray scale
- ≥600 cd/m² white balance brightness
- Front maintenance design with suction cup tool
- High brightness uniformity ≥95%
- Low power consumption for indoor use
- Support OEM & ODM customized service
Front maintenance is available, use dedicated vacuum suction cup for module disassembly. Do not touch screen surface with bare hands, wear rubber gloves during operation. Clean screen only with pure water and lint-free fine cloth; alcohol and organic solvents are forbidden. Keep operating environment within 10~90%RH and -10~40℃. Products stored over 1 month require 6-hour graded aging test before use. Avoid dusty, corrosive gas, strong vibration and water-splash environments. Grounding and lightning protection system inspection every 6 months.
| Operating Temperature | -10~40℃ |
|---|---|
| Storage Temperature | -40~60℃ |
| Operating Humidity | 10~90%RH |
| Storage Humidity | 10~60%RH |
| Typical Lifespan | ≥50000hrs |
APPLICATIONS
Visual solutions for your space.
enterprise exhibition hall
broadcast studio
high-end retail display
TECHNICAL RESOURCES
Product documentation.
XC1.2 H COB Mini LED Display Unit, 600×337.5mm Common Anode Indoor Screen
