Model ： Qmini1.8-43S (COB)
P1.8mm
1.8P 43S (COB) Mini LED Full Color Display Module
Qmini1.8-43S indoor COB Mini LED display with 1.8mm pixel pitch, 3840Hz high refresh rate, flip-chip design, anti-glare surface, supports front/rear maintenance, ideal for control rooms, conference ro
- Pixel pitch
- 1.8mm
- Brightness
- ≥600cd/㎡
- Refresh rate
- 3840Hz
- IP rating
- IP30 (Indoor Use)
Series · Nova Outdoor
Product Specification
Qmini1.8-43S COB Mini LED Display
Qmini1.8-43S is high-end indoor COB Mini LED video wall adopting flip-chip COB technology. Featuring matte anti-glare 4H hard coating, 3840Hz high refresh and 13-bit grayscale, it provides vivid and stable image. Magnetic cabinet supports front/rear maintenance and flexible seamless splicing.
It is widely deployed in control rooms, exhibition halls, meeting rooms, retail signage and broadcast studios, available for fixed installation and rental projects.
- Pixel pitch
- 1.8mm
- Brightness
- ≥600cd/㎡
- Refresh rate
- 3840Hz
- Power
- Max ≤313W/㎡
- Resolution
- 344 × 258
- Cabinet size
- 640 × 480 × 78 mm
- IP rating
- IP30 (Indoor Use)
01 / SPECIFICATIONS
Performance at a glance.
Technical specifications for 1.8P 43S (COB) Mini LED Full Color Display Module. Contact us to confirm the configuration for your project.
| Pixel pitch | 1.8mm |
|---|---|
| Brightness | ≥600cd/㎡ |
| Refresh rate | 3840Hz |
| Power | Max ≤313W/㎡ |
| Resolution | 344 × 258 |
| Cabinet size | 640 × 480 × 78 mm |
| IP rating | IP30 (Indoor Use) |
| Pixel Pitch | 1.8mm |
|---|---|
| Brightness | ≥600cd/㎡ |
| Brightness Uniformity | ＞0.95 |
| Horizontal View Angle | 160° |
| Vertical View Angle | 160° |
| Gray Scale | 13 bits per R/G/B |
| Refresh Rate | 3840Hz |
| Frame Rate | ≥60fps |
| Display Color | 439.8 Billion Colors |
| Pixel Density | 288906 Dots/㎡ |
| Pixel Configuration | 1R1G1B |
| Drive Mode | 1/43 Constant Current Scan |
| Max Power Consumption per ㎡ | ≤313W/㎡ |
| Operating Temperature | -20℃ ~ 40℃ |
| Operating Humidity | 10%~65%RH(No condensation) |

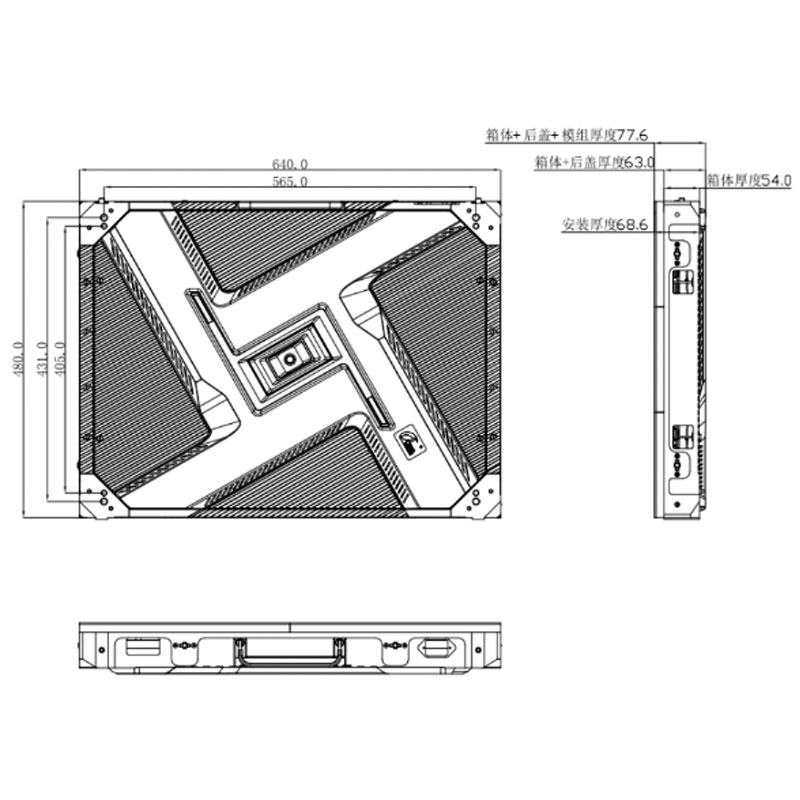

| Cabinet Dimension | 640*480*78mm |
|---|---|
| Cabinet Resolution | 344 × 258 Dots |
| Cabinet Area | 0.307 ㎡ |
| Cabinet Weight | 7.67kg ±0.05kg |
| Max Power Consumption | ≤96W |
| Average Power Consumption | ≤32W |
| Distribution Power | ≤123W |
| Maintenance Type | Front / Rear Maintenance |

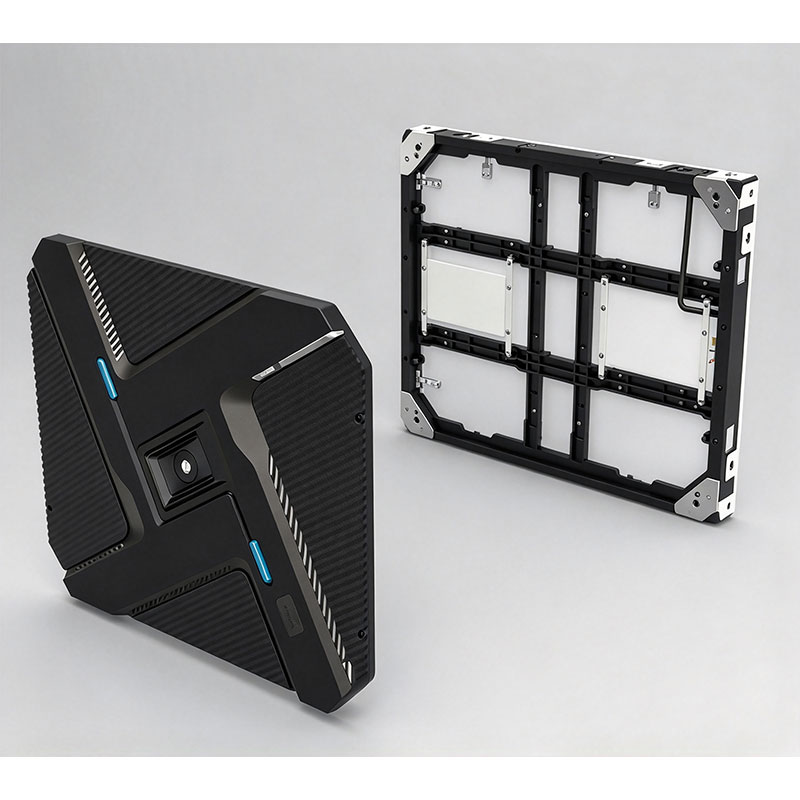

| Assembly Method | Magnetic Adsorption |
| Pixel Pitch | 1.8mm |
|---|---|

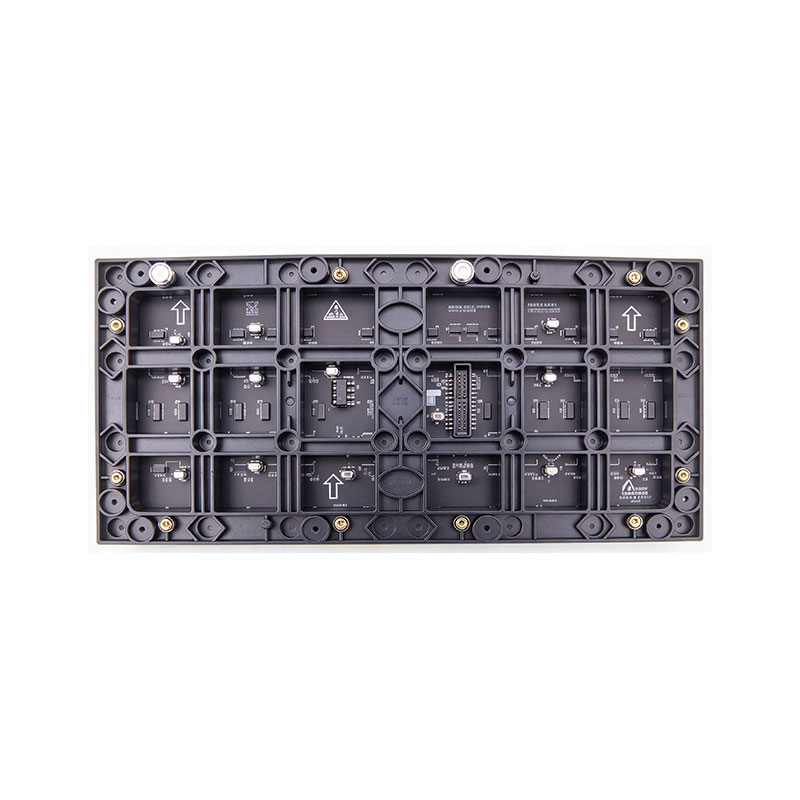

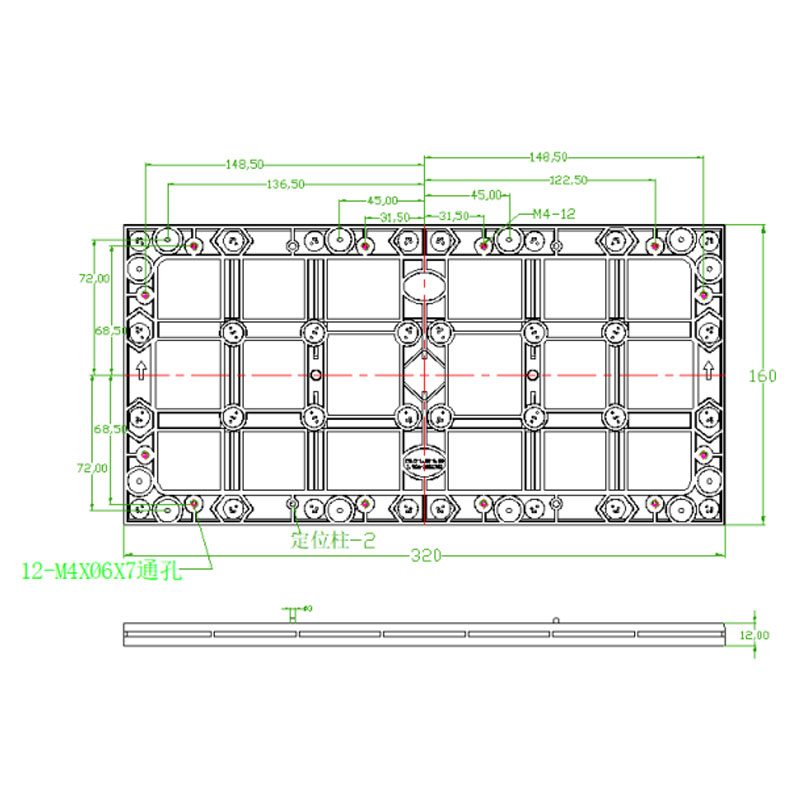

| Module Size | 320*160*15mm |
| Module Resolution | 172 × 86 Dots |
| Module Weight | 0.37kg ±0.01kg |
| Pixel Configuration | 1R1G1B |
| LED Package | COB |
| Input DC Voltage | 4.2±0.1V |
| Max Current | ≤3.8A |
| Module Max Power | ≤16W |
| Drive Mode | 1/43 Constant Current Scan |
| Structure | LED & Driver Integrated |
03 / PRODUCT DESIGN & SIGNAL INTERFACE
Designed for your installation.

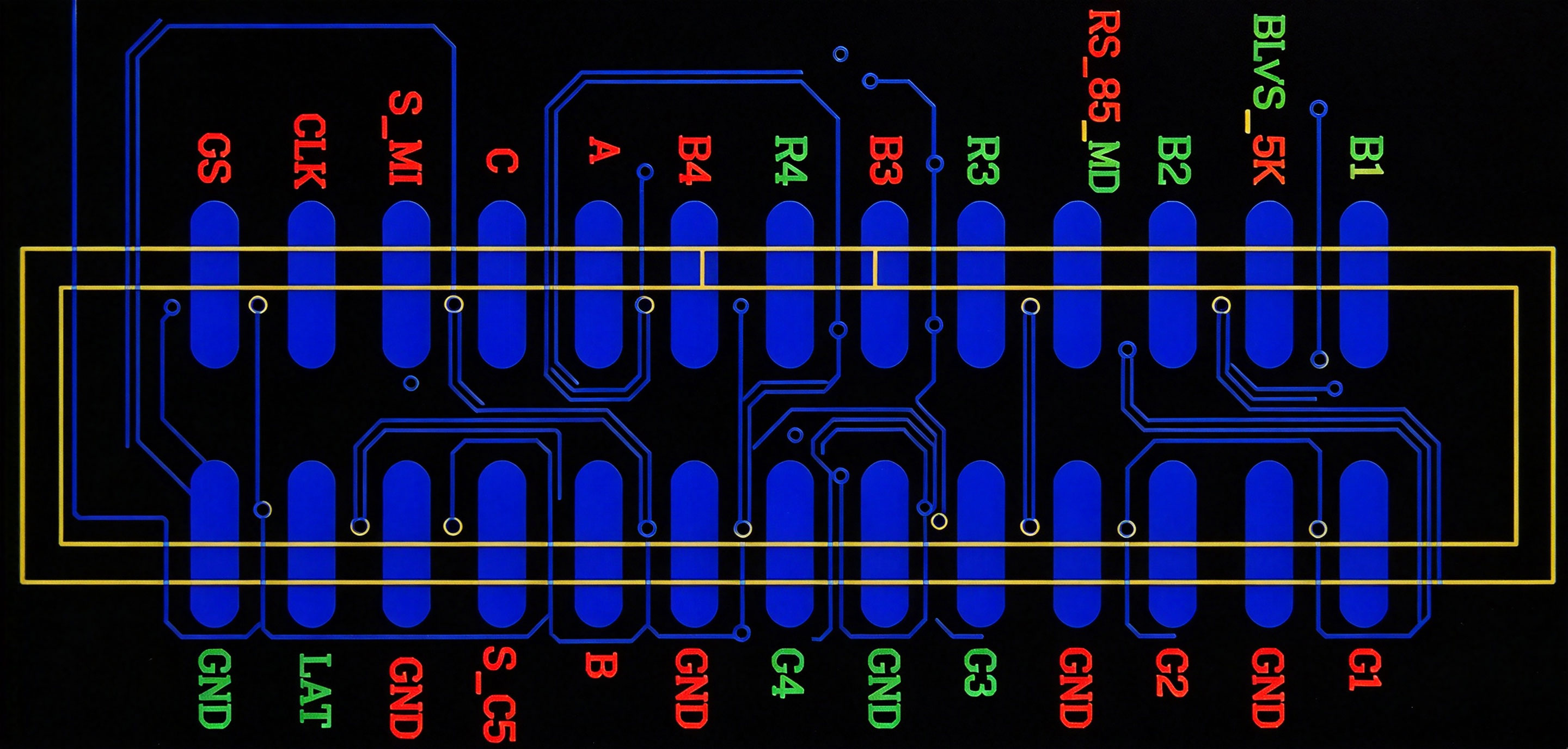

| Signal Connector | HUB320, 2.54mm pitch, 2×13Pin |
|---|---|
| Power Connector | SMD VH 4-pin, 3.96mm pitch |
| Input Signal | DVI, VGA, HDMI, DP, Composite Video, S-VIDEO, YPbPr |
| Calibration Compatibility | Nova NV3210 |
04 / ENGINEERING
Power architecture.
Power supply and consumption specifications for the selected configuration.
| 40A PSU Supported Modules | 5~6 pcs |
|---|---|
| 50A PSU Supported Modules | 7~8 pcs |
| 40A PFC PSU Supported Modules | 7~8 pcs |
| 80A PSU Supported Modules | 10~12 pcs |
| Module DC Input | 4.2±0.1V |
| Power Polarity | DC Positive / Negative |
INSTALLATION
Modules to cabinets.
ENVIRONMENT & SERVICE
Built for its working environment.
- Flip-chip LED design, no afterimage & anti-caterpillar effect
- Matte fog surface, anti-glare with high contrast ratio
- COB packaging, dustproof & moisture-proof, surface hardness 4H, washable
- High-performance PWM driver IC, smooth grayscale transition, high refresh rate
- Standard 320*160 module mounting hole layout
- Low voltage drive, low power consumption & cool operation
- Magnetic adsorption structure, front & rear maintenance available
Wear ESD wrist strap and gloves during disassembly & maintenance. Keep away from liquid and dust. Clean panel surface only with dust-free cloth or clean water. The cabinet, power supply housing and screen frame shall be well grounded, and ground resistance inspection shall be conducted every 6 months. Do not operate under live power. For long-time idle storage, perform staged brightness preheating dehumidification before power-on.
| Operating Temperature | -20℃ ~ 40℃ |
|---|---|
| Storage Temperature | -30℃ ~ 60℃ |
| Operating Humidity | 10% ~ 65%RH (No condensation) |
| Storage Humidity | 10% ~ 80%RH (No condensation) |
| Application Environment | Indoor only |
APPLICATIONS
Visual solutions for your space.
Enterprise exhibition hall
Conference room
Retail digital signage
Broadcast studio
Command center
Indoor fixed installation
Event rental project
