Model ： P10-2S-3535 Pro -7680Hz
P10mm
P10 Outdoor LED Display Module P10-2S-3535 Pro / 7680Hz
P10 outdoor LED display module with 10mm pixel pitch, SMD3535 LEDs, 1/2 scan constant-current driving and 7680Hz refresh rate. The 320×160mm module provides ≥4500 nits brightness and is designed for o
- Pixel pitch
- 10
- Brightness
- ≥4500cd/㎡
- Refresh rate
- 7680
- IP rating
- IP65
Series · Nova Outdoor
Product Specification
P10 Outdoor LED Display Module – P10-2S-3535 Pro
The P10-2S-3535 Pro is a P10 outdoor LED display module designed for large-format outdoor LED screen installations. It features a 10mm pixel pitch, SMD3535 RGB LEDs, 1/2 scan constant-current driving and a 7680Hz refresh rate.
High Brightness Outdoor Display
With brightness of ≥4500 cd/m² and brightness uniformity greater than 0.95, the module is designed for outdoor LED display applications. The horizontal viewing angle is 140°±10° and the vertical viewing angle is 130°±10°.
320 × 160mm Standard LED Module
Each module measures 320 × 160 × 19mm and provides a resolution of 32 × 16 pixels. The pixel density is 10,000 dots/m² and each pixel consists of 1 red, 1 green and 1 blue LED.
7680Hz High Refresh Rate
The module supports a refresh rate of 7680Hz and a frame rate of ≥60 fps, providing stable display performance for outdoor LED screen systems.
Flexible Modular Installation
The modules can be assembled horizontally and vertically to build LED displays of different sizes. A 960 × 960mm cabinet configuration is recommended.
Easy Maintenance
The module supports single-pixel and single-LED maintenance, helping reduce maintenance costs. Proper waterproofing, grounding and environmental protection should be provided for outdoor installations.
- Pixel pitch
- 10
- Brightness
- ≥4500cd/㎡
- Refresh rate
- 7680
- Power
- ≤204W
- Resolution
- 96*96
- Cabinet size
- 960*960
- IP rating
- IP65
01 / SPECIFICATIONS
Performance at a glance.
Technical specifications for P10 Outdoor LED Display Module P10-2S-3535 Pro / 7680Hz. Contact us to confirm the configuration for your project.
| Pixel pitch | 10 |
|---|---|
| Brightness | ≥4500cd/㎡ |
| Refresh rate | 7680 |
| Power | ≤204W |
| Resolution | 96*96 |
| Cabinet size | 960*960 |
| IP rating | IP65 |
| Pixel Pitch | 10 mm |
|---|---|
| Pixel Density | 10,000 dots/m² |
| Pixel Configuration | 1R1G1B |
| LED Package | SMD3535 |
| Brightness | ≥4500 cd/m² |
| Brightness Uniformity | >0.95 |
| Horizontal Viewing Angle | 140° ±10° |
| Vertical Viewing Angle | 130° ±10° |
| Best Viewing Distance | ≥18 m |
| Gray Scale | 14–15 bits per RGB color |
| Display Colors | 4.398 trillion colors |
| Frame Rate | ≥60 fps |
| Refresh Rate | 7680 Hz |
| Brightness Adjustment | 256 levels, manual/automatic |
| Module Resolution | 32 × 16 pixels |
| Module Pixels | 512 dots |
| Drive Method | 1/2 Scan, Constant Current |
| Screen Horizontal Flatness | <1 mm/m² |
| Screen Vertical Flatness | <1 mm/m² |
| MTBF | ≥5000 hours |
| Recommended Cabinet Size | 960 × 960 mm |
|---|---|
| Cabinet Thickness | 104.5 mm |
| Cabinet Thickness with Connecting Plate | 169.5 mm |
| Cabinet Resolution | 96 × 96 pixels |
| Cabinet Pixels | 9,216 dots |
| Cabinet Area | 0.9216 m² |
| Cabinet Weight | 30 kg ±0.5 kg |
| Maximum Cabinet Power Consumption | ≤612 W |
| Average Cabinet Power Consumption | ≤204 W |
| Cabinet Distribution Power | ≤785 W |
| Recommended Cabinet Configuration | 960 × 960 mm |
| Pixel Pitch | 10 mm |
|---|---|
| Pixel Density | 10,000 dots/m² |
| Pixel Configuration | 1R1G1B |
| LED Package | SMD3535 |
| Module Size | 320 × 160 × 19 mm |
| Module Weight | 0.48 kg ±0.01 kg |
| Module Resolution | 32 × 16 pixels |
| Pixels per Module | 512 dots |
| Structure | LED and Driver Integrated |
| Input Voltage | DC 4.2 ±0.1 V |
| Maximum Current | ≤8 A |
| Maximum Module Power | ≤34 W |
| Drive Method | 1/2 Scan, Constant Current |
| 40A Power Supply Capacity | 3–4 Modules |
| 50A Power Supply Capacity | 3–4 Modules |
| 40A PFC Power Supply Capacity | 4–5 Modules |
| 80A Power Supply Capacity | 7–8 Modules |
03 / PRODUCT DESIGN & SIGNAL INTERFACE
Designed for your installation.

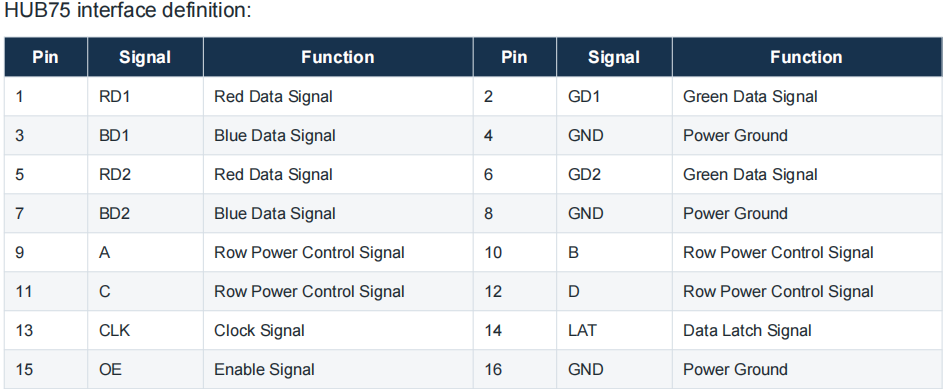

| Module Signal Interface | HUB75 |
|---|---|
| Input Signals | DVI / VGA / HDMI / DP / Composite Video / S-VIDEO / YPbPr (HDTV) |
| Control Method | Computer control, pixel-to-pixel mapping, synchronous video, real-time display |
| Data Signals | Red / Green / Blue |
| Control Signals | A / B / C / D / CLK / LAT / OE |
| Ground | GND |
04 / ENGINEERING
Power architecture.
Power supply and consumption specifications for the selected configuration.
| Module Input Voltage | DC 4.2 ±0.1 V |
|---|---|
| Maximum Module Current | ≤8 A |
| Maximum Module Power | ≤34 W |
| Maximum Power per Square Meter | ≤664 W/m² |
| Distribution Power per Square Meter | ≤1002 W/m² |
| 40A Power Supply Capacity | 3–4 modules |
| 50A Power Supply Capacity | 3–4 modules |
| 40A PFC Power Supply Capacity | 4–5 modules |
| 80A Power Supply Capacity | 7–8 modules |
| Maximum Cabinet Power | ≤612 W |
| Average Cabinet Power | ≤204 W |
| Cabinet Distribution Power | ≤785 W |
INSTALLATION
Modules to cabinets.
ENVIRONMENT & SERVICE
Built for its working environment.
- 10mm pixel pitch for outdoor large-format LED displays
- ≥4500 nits high brightness for outdoor applications
- 7680Hz high refresh rate
- SMD3535 RGB LED package
- 1/2 scan constant-current driving
- High contrast for excellent display performance
- Lightweight module for easy installation and removal
- Supports single-pixel and single-LED maintenance
- Modules can be freely assembled horizontally and vertically
- 320×160mm standard LED module size
Use modules from the same production batch on one LED screen to avoid visible color differences. Do not connect the LED module directly to 220V AC. Ensure that the DC power polarity is correct before powering on. Power must be disconnected before installing, removing or reconnecting modules, power cables or signal cables. For outdoor installation, ensure proper waterproof sealing around the cabinet and all cabinet connection points. The power supply enclosure, cabinet and display structure must be properly grounded. Regularly inspect the display for moisture or water ingress, especially after heavy rain. Avoid displaying static images or text for extended periods. Dynamic content is recommended to reduce excessive LED brightness degradation. Lightning protection and grounding systems should be inspected periodically.
| Application Environment | Outdoor |
|---|---|
| Operating Temperature | -20°C to +40°C |
| Storage Temperature | -10°C to +30°C |
| Operating Humidity | 10%–90% RH |
| Storage Humidity | 10%–60% RH |
| Maximum Module Surface Temperature | ≤85°C |
| Grounding Resistance | ≤10 Ω |
| Neutral-to-Ground Voltage | ≤2 V |
| Protection Functions | Over-temperature / Overload / Power Failure / Image Compensation / Calibration / Over-current / Over-voltage |
| Lightning Protection | Optional |
APPLICATIONS
Visual solutions for your space.
With ≥4500 nits brightness, 7680Hz refresh rate and SMD3535 LEDs, the module is suitable for outdoor LED display installations where high brightness, stable image performance and modular installation are required.
A 960×960mm cabinet configuration is recommended for this module.
