Model ： P2.5-16S-1515 Plus
P2.5mm
P2.5 Outdoor LED Display Module P2.5-16S-1515 Plus / 7680 Hz
P2.5 outdoor LED display module with 5,000 nits brightness, designed for outdoor video walls, advertising displays, and other installations that need clear images in daylight. Contact us for module sp
- Pixel pitch
- 2.5mm
- Brightness
- 5000 nits
- Refresh rate
- 7680 Hz
- IP rating
- IP65
Series · Nova Outdoor
Product Specification
Display Panel Structure & Performance
The display screen is constructed by packaging red, green and blue LED chips into individual pixel units to form a matrix, which is then mounted onto plastic frames. 3.2 Equipped with driver ICs and input buffer ICs, the display can render videos, images, texts and other content once connected to an LED display control system. 3.3 The control system regulates driver ICs for red, green and blue LEDs, supporting up to 439.8 billion color combinations. 3.4 Modules and cabinets can be freely spliced horizontally and vertically to build display screens of custom dimensions.
Would you like to switch to work task mode to polish this English product copy into a more professional B2B version for overseas websites and brochures?
- Pixel pitch
- 2.5mm
- Brightness
- 5000 nits
- Refresh rate
- 7680 Hz
- Power
- ≤195W
- Resolution
- 384*384
- Cabinet size
- 960 x 960 mm
- IP rating
- IP65
01 / SPECIFICATIONS
Performance at a glance.
Technical specifications for P2.5 Outdoor LED Display Module P2.5-16S-1515 Plus / 7680 Hz. Contact us to confirm the configuration for your project.
| Pixel pitch | 2.5mm |
|---|---|
| Brightness | 5000 nits |
| Refresh rate | 7680 Hz |
| Power | ≤195W |
| Resolution | 384*384 |
| Cabinet size | 960 x 960 mm |
| IP rating | IP65 |
| Pixel pitch | 2.5 mm |
|---|---|
| Pixel density | 160,000 pixels/m² |
| Pixel configuration | 1R1G1B |
| LED package | SMD1515 |
| Full-screen brightness | ≥5,000 cd/m² |
| Brightness uniformity | >0.95 |
| Horizontal viewing angle | 140° ±10° |
| Vertical viewing angle | 130° ±10° |
| Recommended viewing distance | ≥4.5 m |
| Refresh rate | 7,680 Hz |
| Frame rate | ≥60 fps |
| Grayscale | 14–15 bits per color |
| Brightness adjustment | 256 levels, manual or automatic |
| Maximum module power per square meter | ≤634 W/m² |
| Operating temperature | −20°C to 40°C |
| Operating humidity | 10%–90% RH |

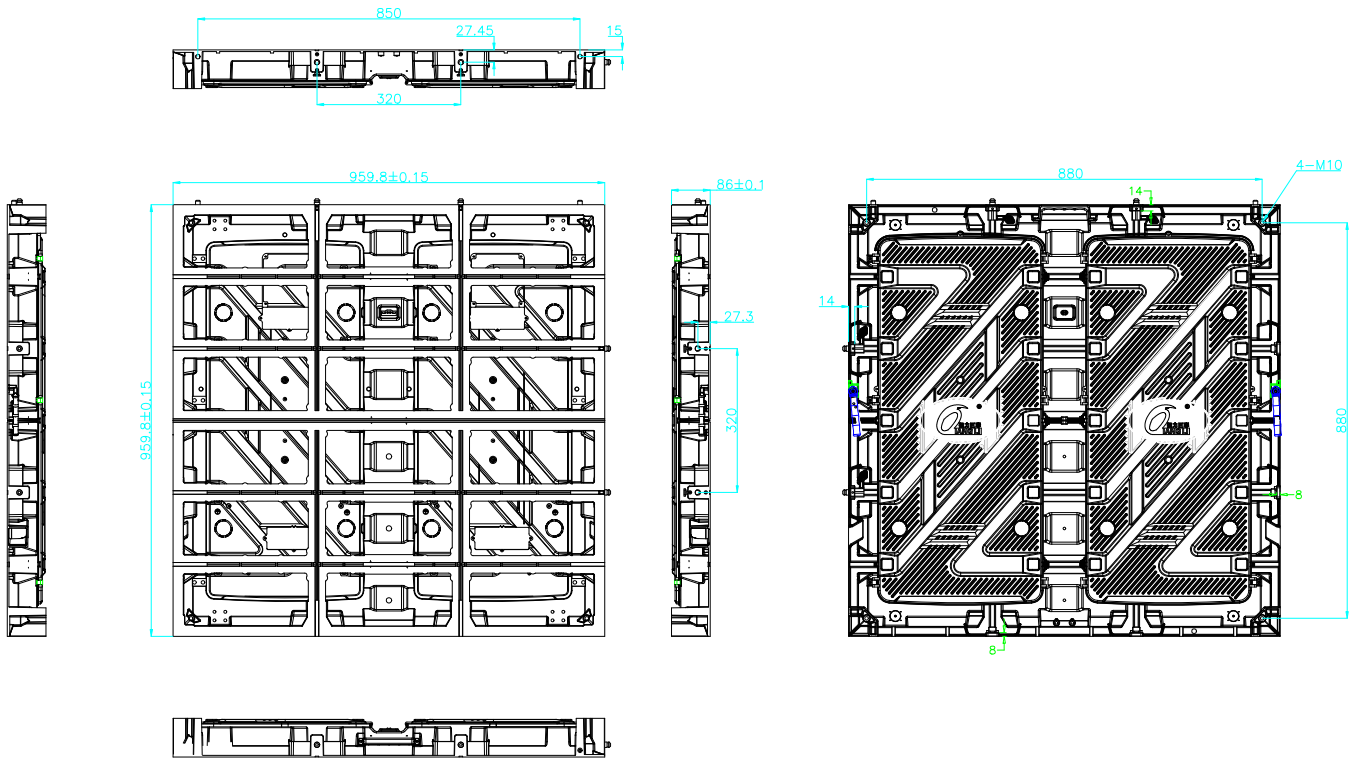

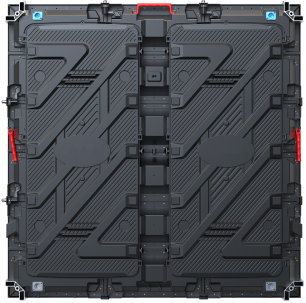

| Recommended cabinet size | 960 × 960 × 104.5 mm, including modules and cabinet |
|---|---|
| Cabinet depth with connecting plates | 169.5 mm |
| Cabinet resolution | 384 × 384 pixels |
| Cabinet area | 0.9216 m² |
| Cabinet weight | 29.7 ±0.5 kg |
| Maximum cabinet power consumption | ≤585 W |
| Average cabinet power consumption | ≤195 W |
| Specified cabinet power distribution | ≤750 W |

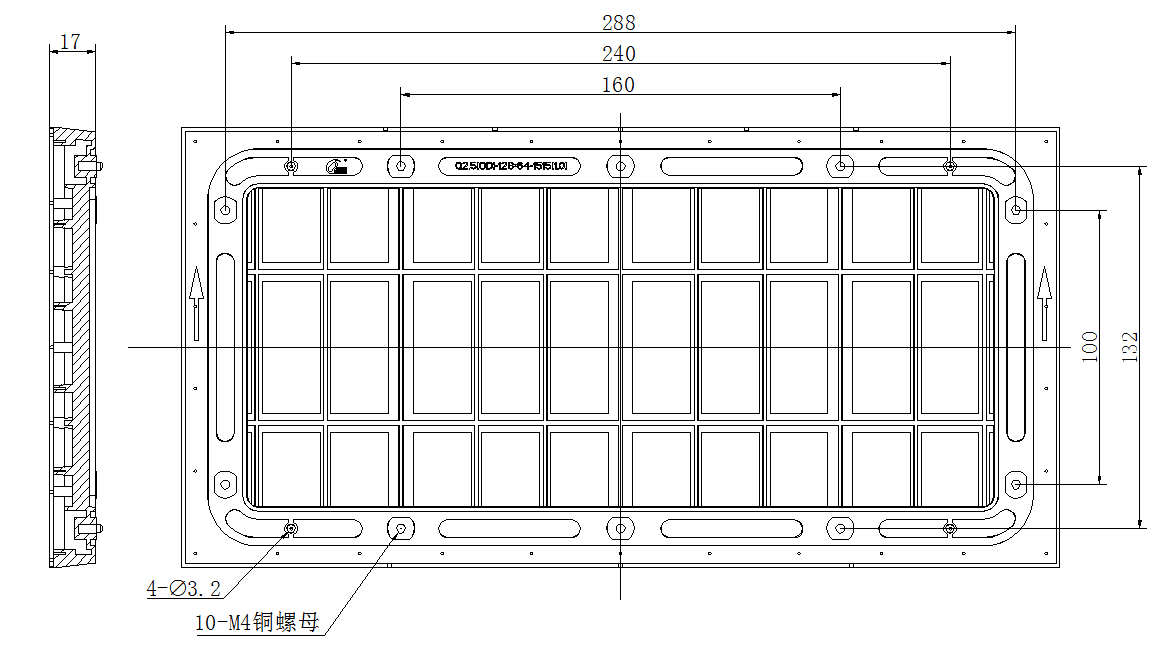

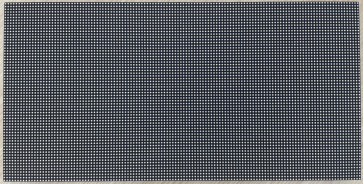

| Module size | 320 × 160 × 18.5 mm |
|---|---|
| Module resolution | 128 × 64 pixels |
| Module weight | 0.42 ±0.01 kg |
| Maximum module power consumption | ≤26 W |
| Driving method | 1/16-scan constant-current drive |
| Power input | −3.2 V / −4.0 V dual negative-voltage input |

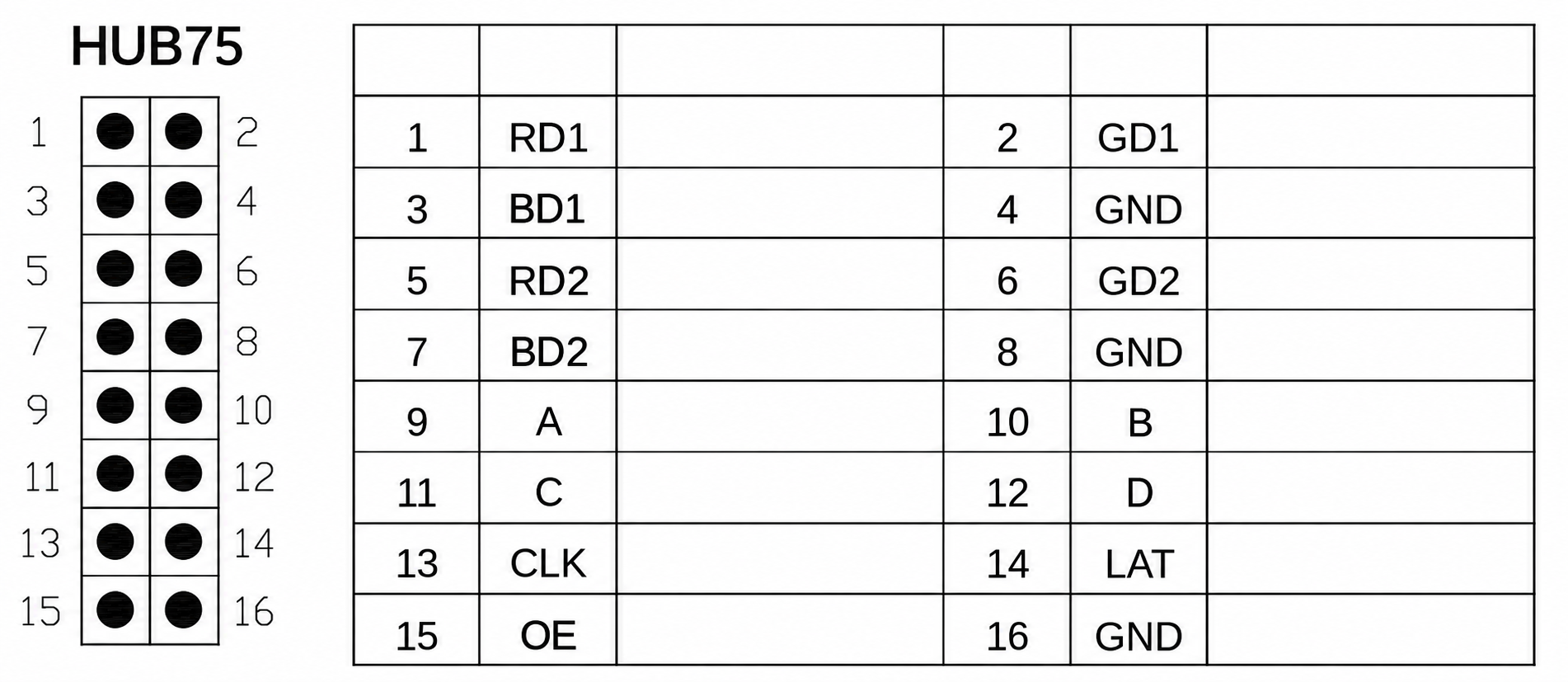

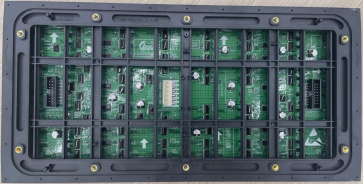

| Signal interface | HUB75 |
| Compatible power supply | Dedicated DPS power supply required |
03 / PRODUCT DESIGN & SIGNAL INTERFACE
Designed for your installation.
| Module signal interface | HUB75 |
|---|---|
| Control method | Computer-controlled, pixel-to-pixel synchronous video display |
| Supported source inputs | DVI, VGA, HDMI, DP, composite video, S-Video and YPbPr, depending on the selected control system |
| Signal redundancy | Not specified |
04 / ENGINEERING
Power architecture.
Power supply and consumption specifications for the selected configuration.
| Module power input | −3.2 V / −4.0 V dual negative-voltage input |
|---|---|
| Required power supply | Dedicated DPS power supply and matching cables |
| Maximum module power consumption | ≤26 W |
| Maximum cabinet power consumption | ≤585 W |
| Average cabinet power consumption | ≤195 W |
| Maximum module power consumption per square meter | ≤634 W/m² |
INSTALLATION
Modules to cabinets.
ENVIRONMENT & SERVICE
Built for its working environment.
- P2.5 outdoor LED module with SMD1515 LEDs and 160,000 pixels/m².
- 320 × 160 mm module size with 128 × 64 pixel resolution.
- Full-screen brightness of ≥5,000 nits and 7,680 Hz refresh rate.
- 1/16 constant-current scanning with PWM driver ICs.
- Modular design supports screens assembled in different sizes.
- Individual pixel and LED maintenance helps reduce repair costs.
Disconnect the main power before installing, removing, or reconnecting modules. Use antistatic protection during handling. Use the specified DPS power supply and cables. Do not connect the module directly to 220 V AC or reverse the power polarity. Seal the cabinet joints and screen perimeter against water ingress. Check the screen interior for moisture after heavy rain. Keep the operating environment within −20°C to 40°C and 10%–90% RH; provide temperature control when needed. Avoid displaying the same static image or text for long periods. Use moving content to reduce uneven LED brightness degradation.
| Application environment | Outdoor |
|---|---|
| Operating temperature | −20°C to 40°C |
| Operating humidity | 10%–90% RH |
| Storage temperature | −10°C to 30°C |
| Storage humidity | 10%–60% RH |
| Waterproofing | Cabinet joints and the screen perimeter require sealing during installation |
APPLICATIONS
Visual solutions for your space.
The P2.5 pixel pitch provides detailed images for installations with a recommended viewing distance of at least 4.5 m.
Modules can be assembled with compatible cabinets to meet the required screen size. Cabinet structure, waterproofing, power distribution, and control system should be confirmed for each project.
TECHNICAL RESOURCES
Product documentation.
P2.5 Outdoor LED Display Module P2.5-16S-1515 Plus | 7680 Hz
LET'S BUILD YOUR DISPLAY
Ready to specify your project?
Share your installation requirements with our team.
