Model ： P3.0-13S-1515 Plus
P3.0mm

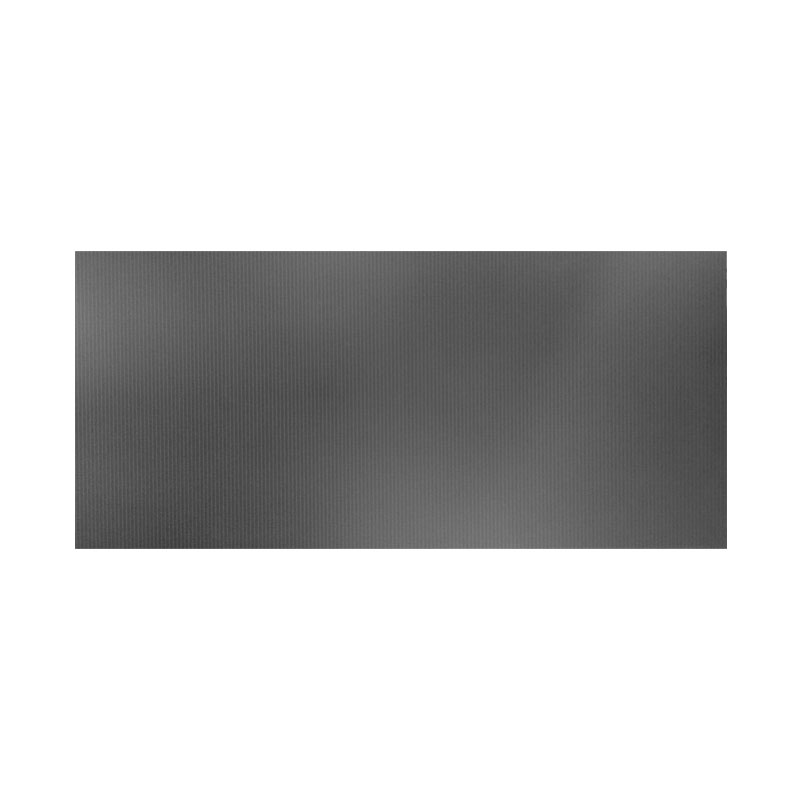

P3 Outdoor LED Display Module P3.0-13S-1515 Plus / 7680 Hz
1. Product Description 1 . The display screen is mainly composed of red LED chips , green LED chips , and blue LED chips packaged into a pixel , forming a matrix, and then fixed onto a plastic ki
- Pixel pitch
- 3.0mm
- Brightness
- ≥5000cd/㎡
- Refresh rate
- 7680HZ
- IP rating
- IPV6
Series · Nova Outdoor
Product Specification
1 . The display screen is mainly composed of red LED chips , green LED chips , and blue LED chips packaged into a pixel , forming a matrix, and then fixed onto a plastic kit;
2 . The display screen contains a driver chip and an input buffer chip. When connected to the LED display screen control system, it can display video, images, and text information, etc.
3 . By controlling the driver chips of red , green , and blue LEDs through system control , 4.398 trillion color changes can be formed;
4. Modules and cabinets can be arbitrarily spliced in both horizontal and vertical directions to form displays of different sizes;
- Pixel pitch
- 3.0mm
- Brightness
- ≥5000cd/㎡
- Refresh rate
- 7680HZ
- Power
- ≤180W
- Resolution
- 312*312
- Cabinet size
- 960*960
- IP rating
- IPV6
01 / SPECIFICATIONS
Performance at a glance.
Technical specifications for P3 Outdoor LED Display Module P3.0-13S-1515 Plus / 7680 Hz. Contact us to confirm the configuration for your project.
| Pixel pitch | 3.0mm |
|---|---|
| Brightness | ≥5000cd/㎡ |
| Refresh rate | 7680HZ |
| Power | ≤180W |
| Resolution | 312*312 |
| Cabinet size | 960*960 |
| IP rating | IPV6 |
| Pixel Pitch | 3.0mm |
|---|---|
| Pixel Density | 105625 Dots/㎡ |
| Pixel Configuration | 1R1G1B |
| LED Package | SMD1515 |
| Module Size | 320*160*17.5mm |
| Module Resolution | 104*52 Dots |
| Drive Mode | 1/13 Constant Current |
| Brightness | ≥5000cd/㎡ |
| Brightness Uniformity | >0.95 |
| Horizontal Viewing Angle | 140±10° |
| Vertical Viewing Angle | 130±10° |
| Gray Scale | 14~15 bits for R/G/B |
| Color Reproduction | 439.8 billion colors |
| Refresh Rate | 7680Hz |
| Frame Rate | ≥60fps |
| Module Max Power | ≤30W |
| Max Power Consumption per ㎡ | ≤585W/㎡ |
| Operating Temperature | -20℃ ~ 40℃ |
| Operating Humidity | 10%RH ~ 90%RH |
| Storage Temperature | -10℃ ~ 30℃ |
| Storage Humidity | 10%RH ~ 60%RH |
| MTBF | ≥5000 hours |
| Input Signal | DVI, VGA, HDMI, DP, Composite Video, S-VIDEO, YpbPr |

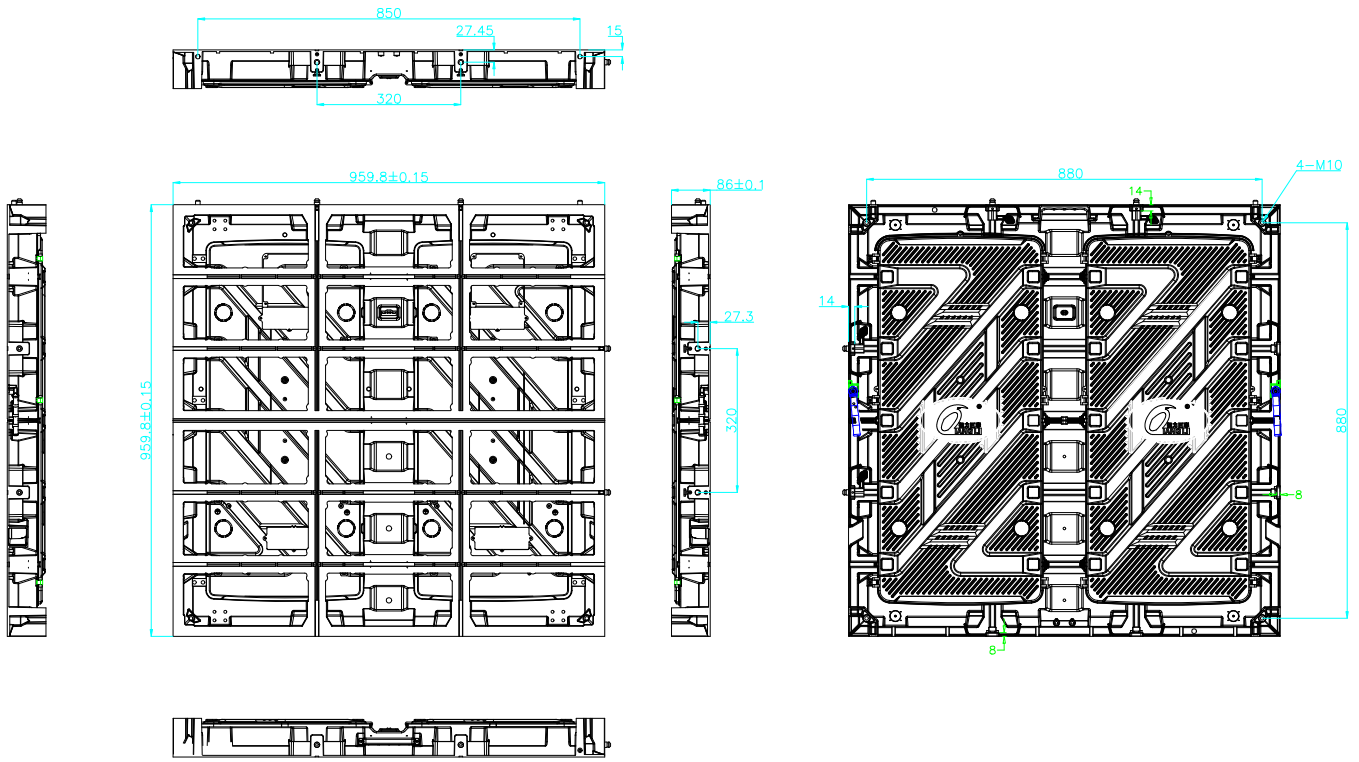

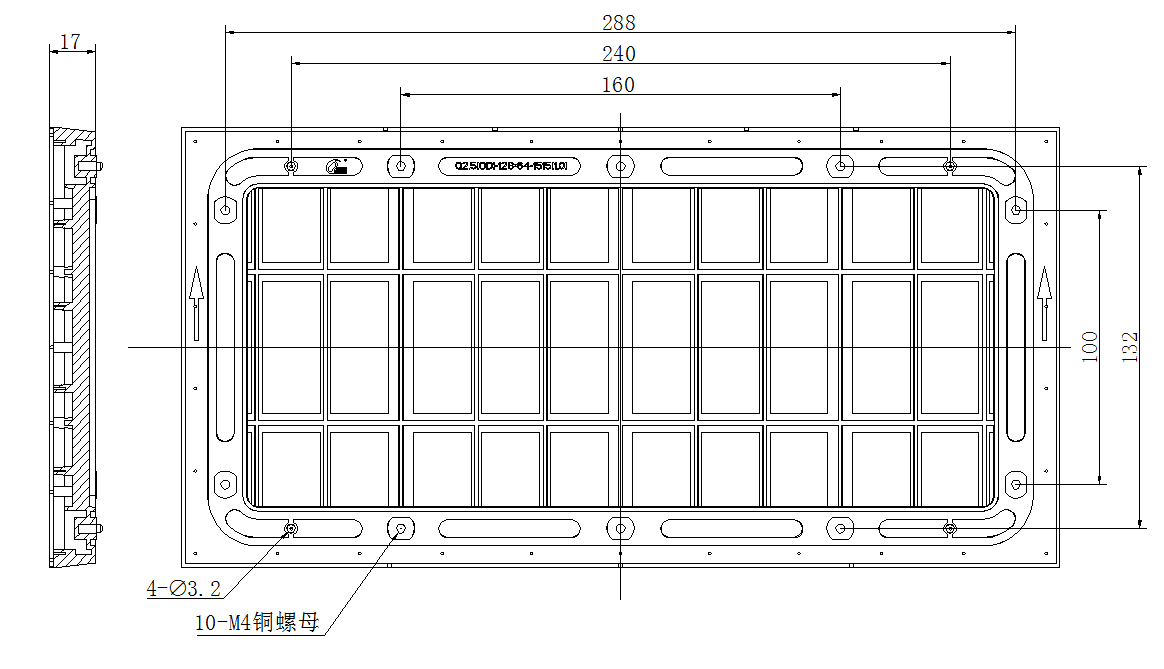

| Recommended cabinet size | 960 × 960 × 104.5 mm |
|---|---|
| Cabinet depth with connecting plates | 169.5 mm |
| Cabinet resolution | 312 × 312 pixels |
| Cabinet area | 0.9216 m² |
| Cabinet weight | 29.7 ±0.5 kg |
| Maximum cabinet power consumption | ≤540 W |
| Average cabinet power consumption | ≤180 W |
| Specified cabinet distribution load | ≤692 W |
| Module size | 320 × 160 × 17.5 mm |
|---|---|
| Module resolution | 104 × 52 pixels |
| Module weight | 0.40 ±0.01 kg |
| Maximum module power consumption | ≤30 W |
| Driving method | 1/13-scan constant-current drive |
| Power input | −3.2 V / −4.0 V dual negative-voltage input |
03 / PRODUCT DESIGN & SIGNAL INTERFACE
Designed for your installation.

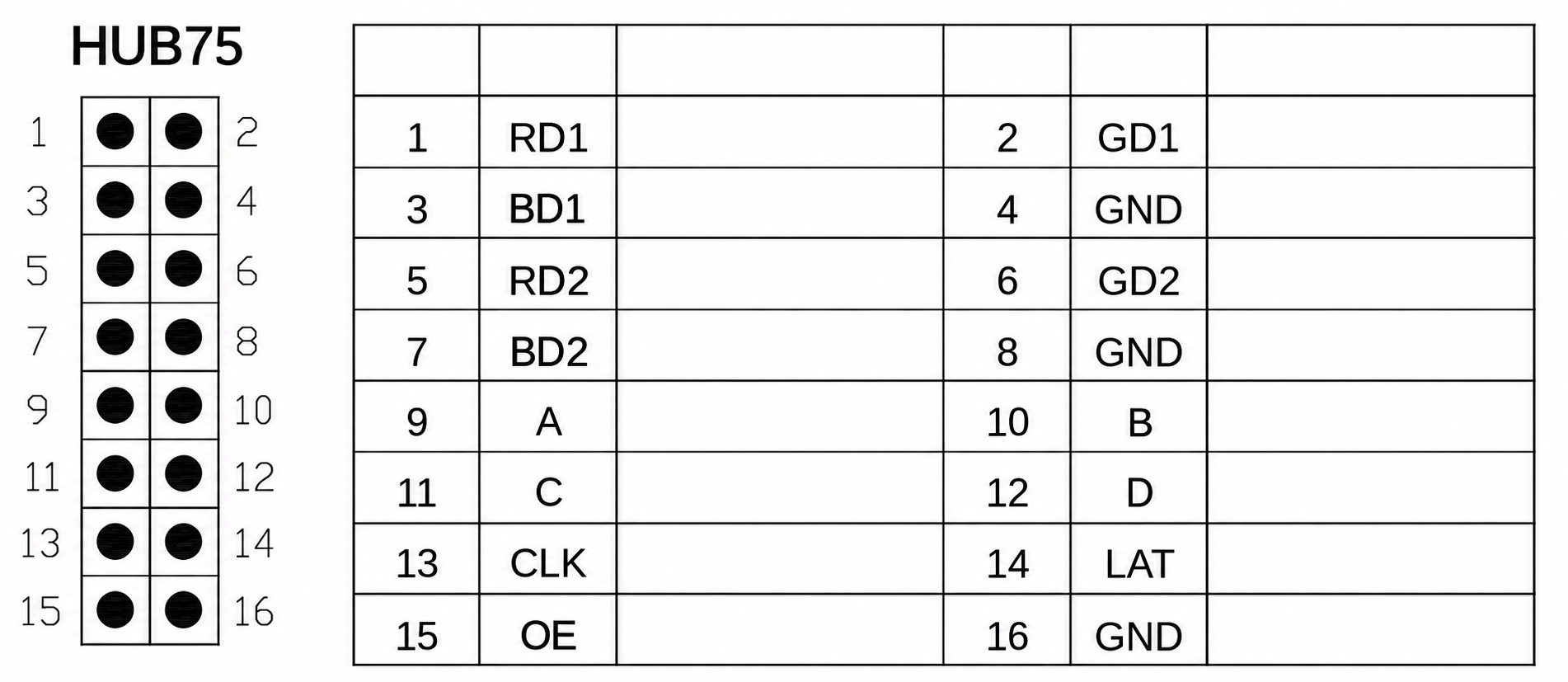

| Module signal interface | HUB75 |
|---|---|
| Control method | Computer-controlled, pixel-to-pixel synchronous video display |
| Source inputs with a compatible control system | DVI, VGA, HDMI, DP, composite video, S-Video and YPbPr |
04 / ENGINEERING
Power architecture.
Power supply and consumption specifications for the selected configuration.
| Required power supply | Dedicated DPS power supply and matching cables |
|---|---|
| Module power input | −3.2 V / −4.0 V dual negative-voltage input |
| Maximum module power consumption | ≤30 W |
| Maximum module power consumption per square meter | ≤585 W/m² |
| Maximum cabinet power consumption | ≤540 W |
INSTALLATION
Modules to cabinets.
ENVIRONMENT & SERVICE
Built for its working environment.
- High brightness ≥5000cd/㎡, excellent sunlight visibility for outdoor deployment
- High contrast ratio, outstanding display performance
- Lightweight module design, easy installation and disassembly
- Supports single pixel & single lamp repair, low maintenance cost
- Adopts PWM constant-current driver IC, stable image with 7680Hz refresh rate
- DPS energy-saving power supply solution, lower power consumption and reduced thermal rise
- High brightness uniformity >0.95, consistent color across the screen
- 1/13 scan driving architecture, good low-gray performance
Operators must wear anti-static wristbands and gloves during module handling and maintenance. Do not mix modules of different production batches on one screen, otherwise color patch issues will occur. Avoid long-time static image playback to prevent uneven LED brightness decay and dead pixels. Inspect screen internal moisture and water accumulation after heavy rain. Check grounding and lightning protection devices every 6 months. Do not perform welding, cutting or heavy construction work nearby after screen installation. Use only official recommended control system and loading software for parameter configuration. Power off completely before disassembling modules or connecting/disconnecting cables.
| Application environment | Outdoor |
|---|---|
| Operating temperature | −20°C to 40°C |
| Operating humidity | 10%–90% RH |
| Storage temperature | −10°C to 30°C |
| Storage humidity | 10%–60% RH |
| Outdoor installation | Seal cabinet joints and the screen perimeter against water ingress |
APPLICATIONS
Visual solutions for your space.
Typical applications include commercial billboards, roadside advertising screens, plaza large screens, stadium perimeter displays and outdoor media signage.
Modular & cabinet structure supports flexible horizontal and vertical splicing to build custom-sized display walls.
Suitable for operation under -20℃ ~ 40℃ outdoor ambient conditions with proper waterproofing and grounding.
TECHNICAL RESOURCES
Product documentation.
Outdoor SMD Q3.0-13S-1515+Plus (DPS) 7680Hz Specification Sheet
LET'S BUILD YOUR DISPLAY
Ready to specify your project?
Share your installation requirements with our team.
