Model ： R4-10S-1921-Pro-4200HZ
P4mm
P4 Outdoor Flexible LED Module – R4-10S-1921 Pro 4200Hz

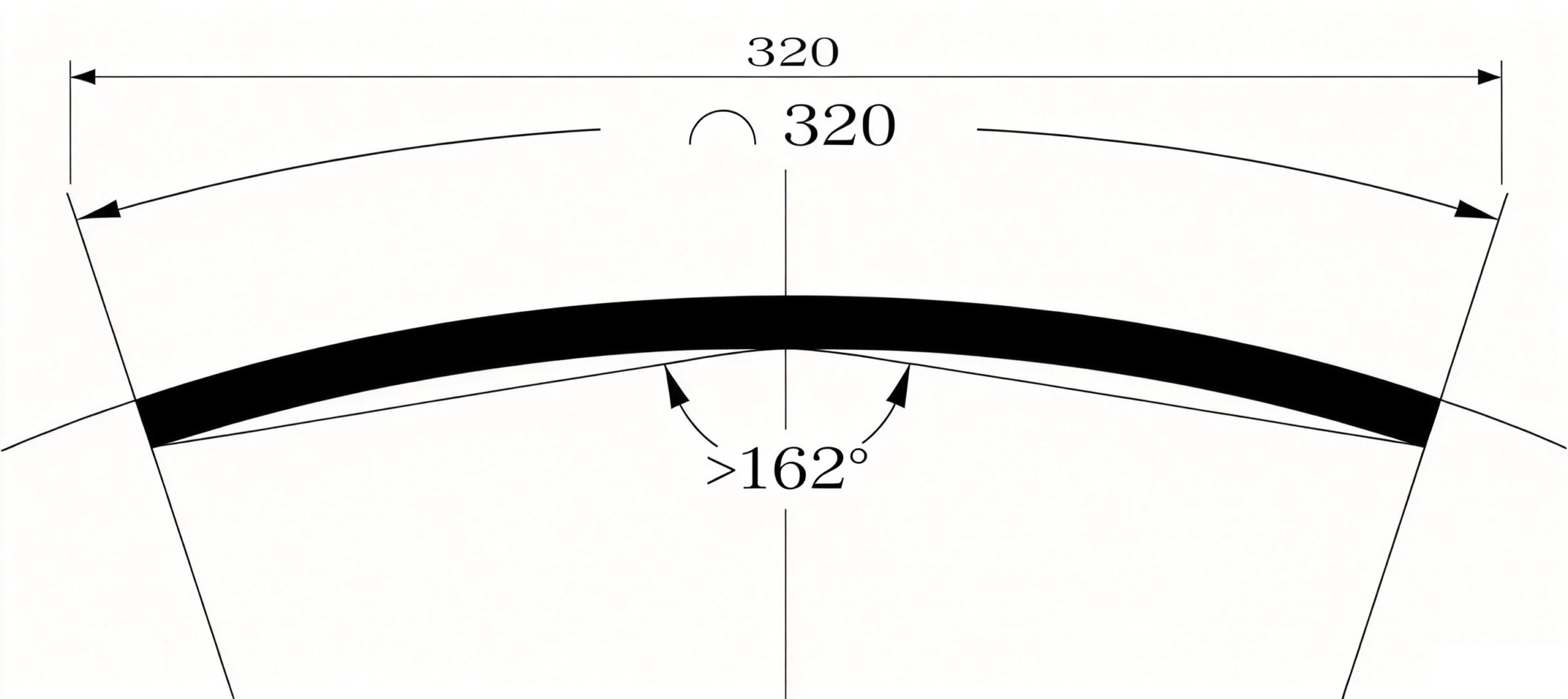

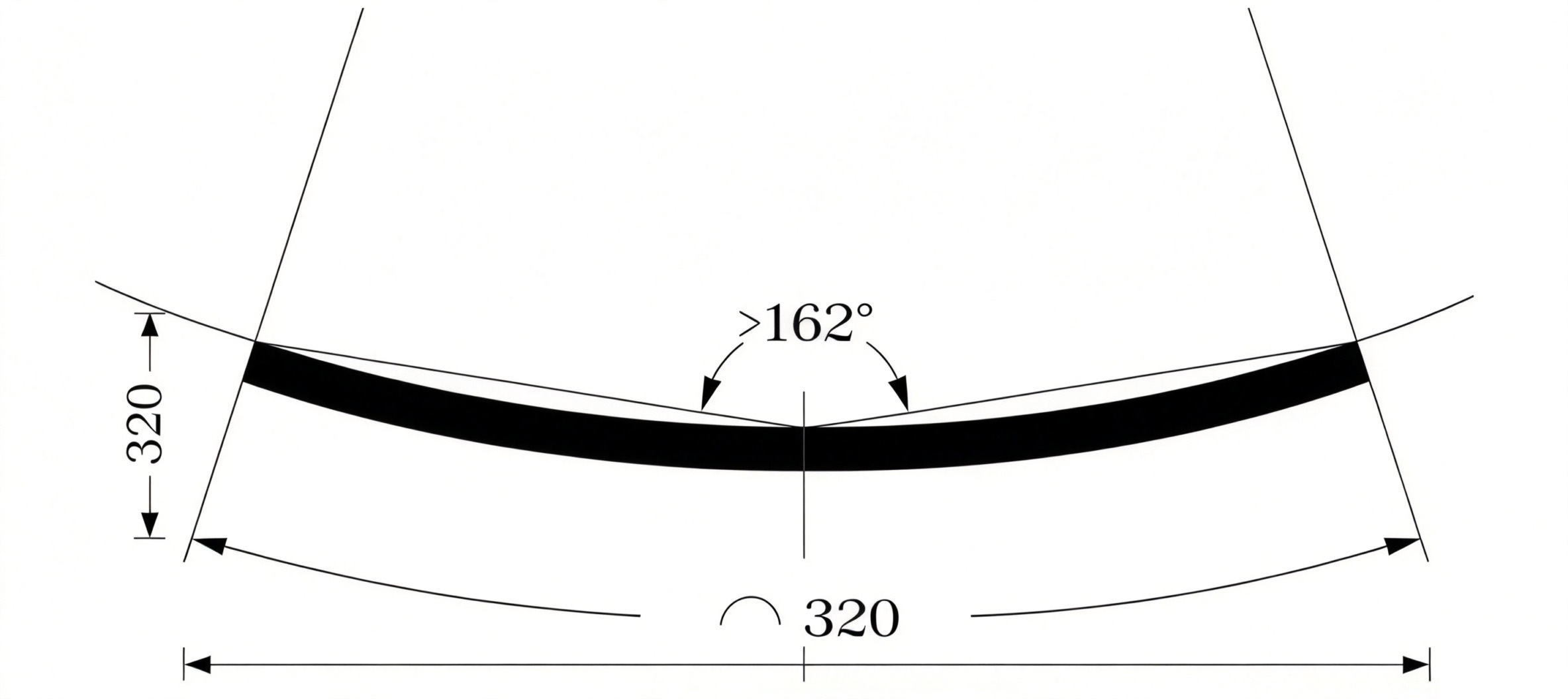

Module Type | Outdoor Flexible / Soft LED ModuleFlexible Base Material | SiliconeBending Direction | HorizontalOuter Arc Bending Angle | ≥162°Inner Arc Bending Angle | ≥162°Vertical Curved Assembly |
- Pixel pitch
- 4
- Brightness
- ≥4500cd/㎡
- Refresh rate
- 4200HZ
- IP rating
- IP65
Series · Nova Outdoor
Product Specification
P4 Outdoor Flexible LED Module – R4-10S-1921 Pro
The R4-10S-1921 Pro is a P4 outdoor flexible LED module designed for curved and creative LED display applications. It features a 4mm pixel pitch, SMD1921 RGB LEDs, 1/10 scan constant-current driving and a 4200Hz refresh rate.
Flexible Silicone Module Design
The module uses a flexible silicone base with a deep V-shaped structure, allowing the LED module to adapt to curved display surfaces and creative screen designs.
4500 cd/m² Outdoor Brightness
With brightness of ≥4500 cd/m² and brightness uniformity greater than 0.95, the module is designed for outdoor curved LED display applications.
320 × 160mm Flexible LED Module
Each module measures 320 × 160 × 11mm and provides a resolution of 80 × 40 pixels, with a pixel density of 62,500 dots/m².
Magnetic Installation
The module is equipped with magnetic mounting for convenient installation and maintenance. Magnetic, hanging, wall-mounted and curved installation methods are supported.
Creative Curved LED Displays
The flexible structure can be used to create cylindrical screens, ribbon-shaped displays, wave-shaped displays and other customized curved LED installations.
4200Hz Refresh Rate
The module supports a 4200Hz refresh rate and a frame rate of ≥60 fps for stable outdoor LED display performance.
- Pixel pitch
- 4
- Brightness
- ≥4500cd/㎡
- Refresh rate
- 4200HZ
- Power
- ≤28W
- Resolution
- 80*40
- Cabinet size
- 320*160
- IP rating
- IP65
01 / SPECIFICATIONS
Performance at a glance.
Technical specifications for P4 Outdoor Flexible LED Module – R4-10S-1921 Pro 4200Hz. Contact us to confirm the configuration for your project.
| Pixel pitch | 4 |
|---|---|
| Brightness | ≥4500cd/㎡ |
| Refresh rate | 4200HZ |
| Power | ≤28W |
| Resolution | 80*40 |
| Cabinet size | 320*160 |
| IP rating | IP65 |
| Brightness | ≥4500 cd/m² |
|---|---|
| Brightness Uniformity | >0.95 |
| Horizontal Viewing Angle | 140° ±10° |
| Vertical Viewing Angle | 130° ±10° |
| Best Viewing Distance | ≥7.2 m |
| Gray Scale | 14–15 bits per RGB color |
| Display Colors | 4.398 trillion colors |
| Frame Rate | ≥60 fps |
| Refresh Rate | 4200 Hz |
| Brightness Adjustment | 256 levels, manual/automatic |
| MTBF | ≥5000 hours |
| Screen Horizontal Flatness | <1 mm/m² |
| Screen Vertical Flatness | <1 mm/m² |

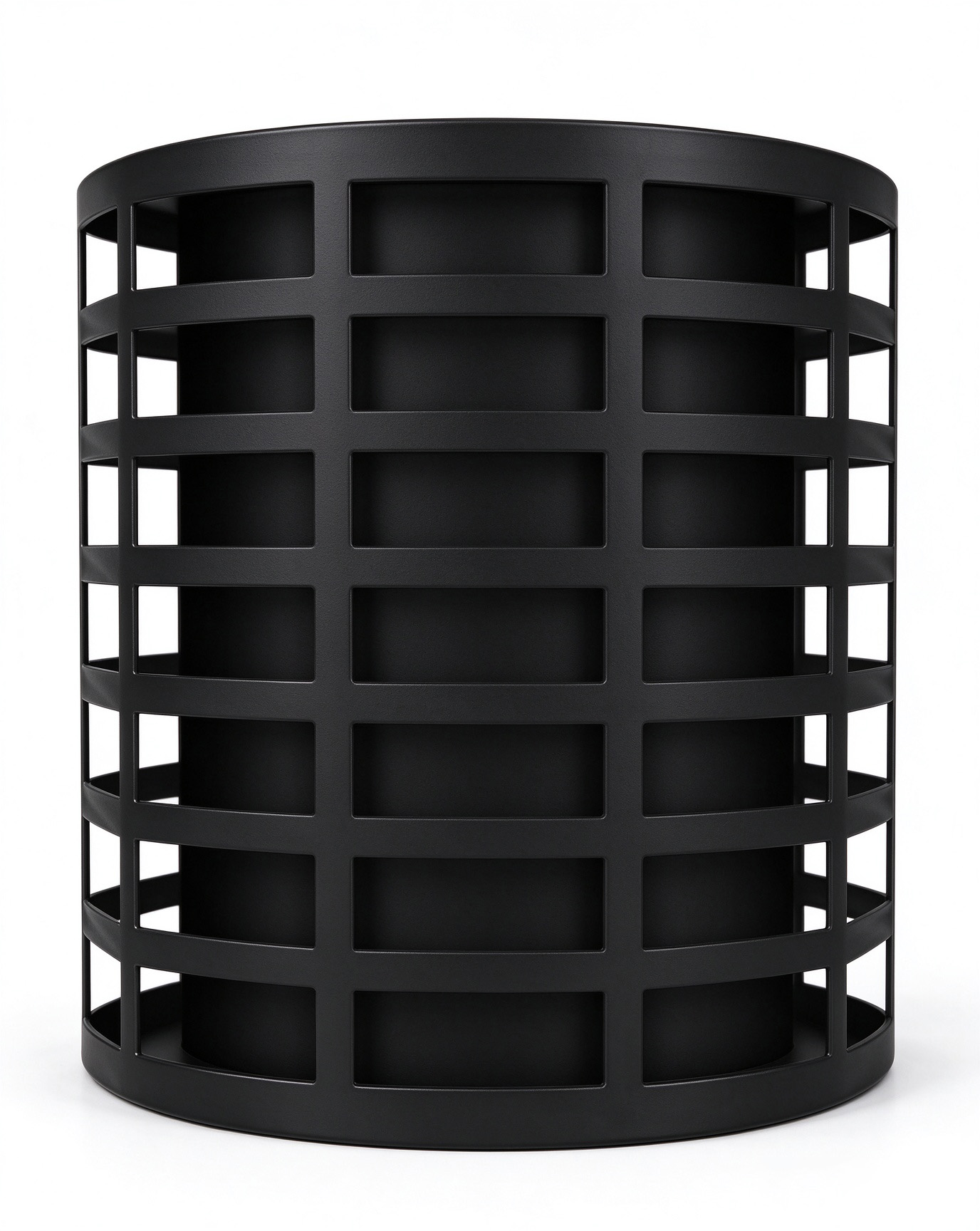

| Cabinet Type | Customized Flexible Structure |
|---|---|
| Cabinet Size | Customized |
| Cabinet Shape | Customized according to application |
| Installation Structure | Painted iron cabinet/frame recommended |
| Pixel Pitch | 4 mm |
|---|---|
| Pixel Density | 62,500 dots/m² |
| Pixel Configuration | 1R1G1B |
| LED Package | SMD1921 |
| Module Type | Flexible / Soft LED Module |

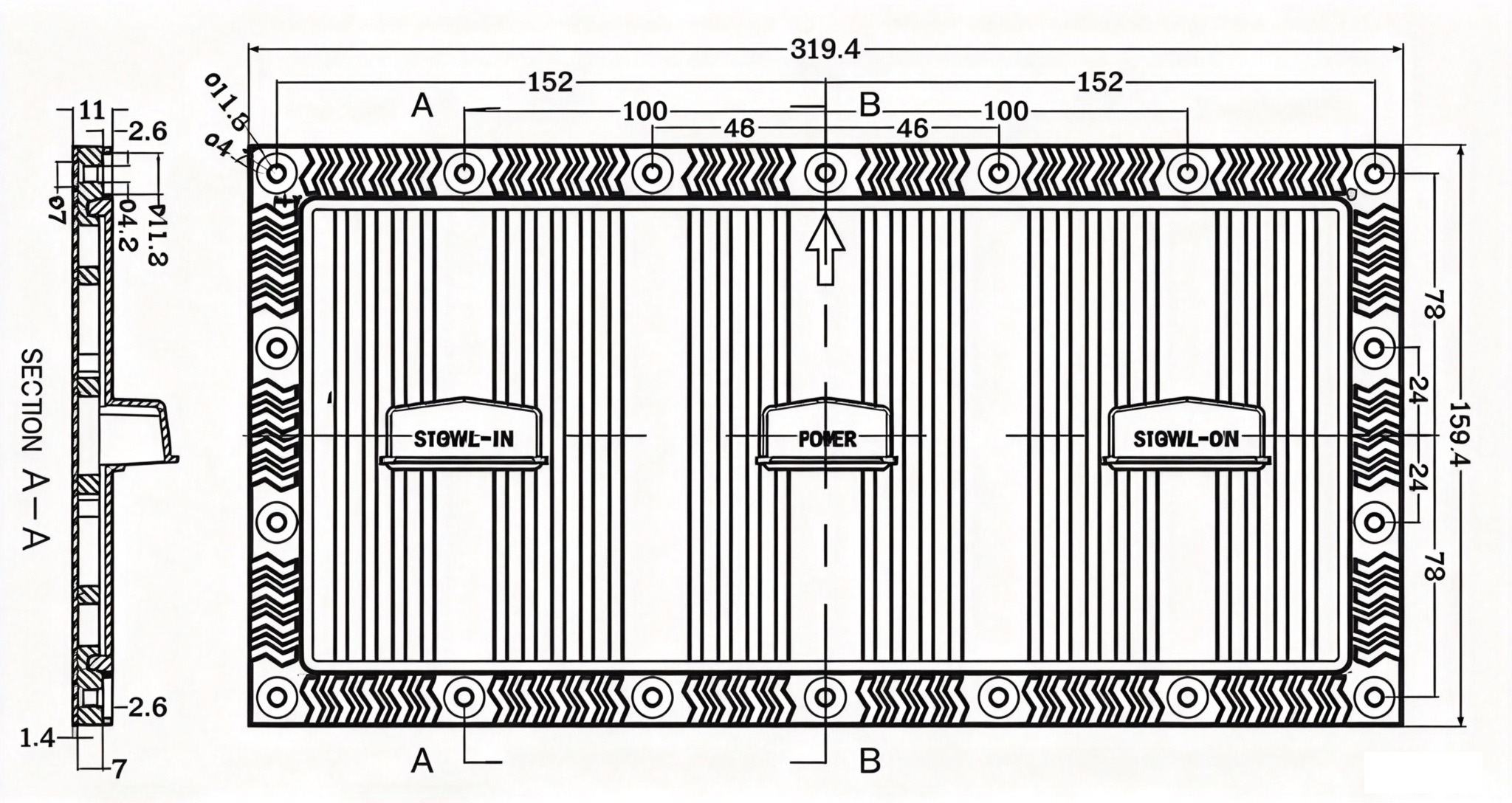

| Module Size | 320 × 160 × 11 mm |
| Module Weight | 0.60 kg ±0.01 kg |
| Module Resolution | 80 × 40 pixels |
| Pixels per Module | 3,200 dots |
| Structure | LED and Driver Integrated |
| Input Voltage | DC 4.2 ±0.1 V |
| Maximum Current | ≤6.8 A |
| Maximum Module Power | ≤28 W |
| Drive Method | 1/10 Scan, Constant Current |
| 40A Power Supply Capacity | 4–5 modules |
| 50A Power Supply Capacity | 5–6 modules |
| 80A Power Supply Capacity | 9–10 modules |
03 / PRODUCT DESIGN & SIGNAL INTERFACE
Designed for your installation.
| HUB75E Pin 1 | RD1 - Red Data |
|---|---|
| HUB75E Pin 2 | GD1 - Green Data |
| HUB75E Pin 3 | BD1 - Blue Data |
| HUB75E Pin 4 | GND |
| HUB75E Pin 5 | RD2 - Red Data |
| HUB75E Pin 6 | GD2 - Green Data |
| HUB75E Pin 7 | BD2 - Blue Data |
| HUB75E Pin 8 | E - Row Control |
| HUB75E Pin 9 | A - Row Control |
| HUB75E Pin 10 | B - Row Control |
| HUB75E Pin 11 | C - Row Control |
| HUB75E Pin 12 | D - Row Control |
| HUB75E Pin 13 | CLK - Clock |
| HUB75E Pin 14 | LAT - Data Latch |
| HUB75E Pin 15 | OE - Enable |
| HUB75E Pin 16 | GND |
04 / ENGINEERING
Power architecture.
Power supply and consumption specifications for the selected configuration.
| Module Input Voltage | DC 4.2 ±0.1 V |
|---|---|
| Maximum Module Current | ≤6.8 A |
| Maximum Module Power | ≤28 W |
| Maximum Power per Square Meter | ≤548 W/m² |
| Distribution Power per Square Meter | ≤827 W/m² |
| 40A Power Supply Capacity | 4–5 modules |
| 50A Power Supply Capacity | 5–6 modules |
| 80A Power Supply Capacity | 9–10 modules |
INSTALLATION
Modules to cabinets.
ENVIRONMENT & SERVICE
Built for its working environment.
- 4mm pixel pitch outdoor flexible LED module
- ≥4500 cd/m² high brightness
- 4200Hz refresh rate
- SMD1921 RGB LED package
- 1/10 scan constant-current driving
- Flexible silicone base for curved LED display designs
- Deep V-shaped silicone base for improved flexibility
- Supports cylindrical, ribbon and wave-shaped LED displays
- Magnetic mounting for convenient installation
- High contrast for clear outdoor display performance
- Supports single-pixel and single-LED maintenance
- 320 × 160mm flexible LED module size
- Lightweight and space-saving structure
Use modules from the same production batch on one LED screen to avoid visible color differences. Do not connect the LED module directly to 220V AC. Ensure that the DC power polarity is correct. Disconnect the main power supply before installing or removing modules, power cables or signal cables. Avoid excessive pulling, bending or twisting during installation and maintenance. Do not allow sweat, water or other liquids to contact the LED module during maintenance. Do not use galvanized steel plates or galvanized square tubes as the mounting structure. A painted iron cabinet or frame is recommended. Do not touch the LED surface directly to avoid electrostatic damage. Protect the module edges and corners from impact to prevent LED damage. For outdoor installations, ensure proper waterproof sealing around the screen structure and cabinet. Inspect grounding and lightning protection systems periodically.
| Application Environment | Outdoor |
|---|---|
| Operating Temperature | -20°C to +40°C |
| Operating Humidity | 10%–90% RH, non-condensing |
| Recommended Storage Temperature | -10°C to +30°C |
| Recommended Storage Humidity | 10%–60% RH |
| Maximum LED Module Surface Temperature | ≤70°C |
| Grounding Resistance | ≤10 Ω |
| Neutral-to-Ground Voltage | ≤2 V |
| Lightning Protection | Optional |
