Model ： P5-8S-1921 Plus
P5mm
P5 Outdoor LED Display Module P5-8S-1921 Plus /7680Hz
P5-8S-1921 Plus is a P5 outdoor LED display module featuring ≥5,000 nits brightness, a 7,680 Hz refresh rate, SMD1921 LEDs and a 320 × 160 mm module size.
- Pixel pitch
- 5mm
- Brightness
- ≥5000cd/㎡
- Refresh rate
- 7680HZ
- IP rating
- IP65
Series · Nova Outdoor
Product Specification
P5-8S-1921 Plus is a P5 outdoor LED display module designed for large-format outdoor LED screens. It uses SMD1921 LEDs, a 1/8-scan constant-current driving method and a high 7,680 Hz refresh rate to provide smooth and stable image reproduction.
The specified full-screen brightness is at least 5,000 cd/m², with brightness uniformity greater than 0.95. When connected to a compatible LED display control system, the screen can display synchronized video, images, text and other digital content.
The module measures 320 × 160 × 18.5 mm and provides a resolution of 64 × 32 pixels. Multiple modules and cabinets can be assembled horizontally and vertically to build LED screens of different sizes. The recommended 960 × 960 mm cabinet configuration provides a resolution of 192 × 192 pixels.
The module requires a DPS energy-saving dedicated power supply with -3.2 V and -4.0 V dual negative-voltage DC inputs. For outdoor installation, all cabinet joints and the screen perimeter must be properly sealed against water ingress. The cabinet, power-supply enclosure and supporting structure must also be correctly grounded.
- Pixel pitch
- 5mm
- Brightness
- ≥5000cd/㎡
- Refresh rate
- 7680HZ
- Power
- ≤182W
- Resolution
- 192*192
- Cabinet size
- 960*960
- IP rating
- IP65
01 / SPECIFICATIONS
Performance at a glance.
Technical specifications for P5 Outdoor LED Display Module P5-8S-1921 Plus /7680Hz. Contact us to confirm the configuration for your project.
| Pixel pitch | 5mm |
|---|---|
| Brightness | ≥5000cd/㎡ |
| Refresh rate | 7680HZ |
| Power | ≤182W |
| Resolution | 192*192 |
| Cabinet size | 960*960 |
| IP rating | IP65 |
| Brightness | ≥5,000 cd/m² |
|---|---|
| Brightness uniformity | >0.95 |
| Horizontal viewing angle | 140° ± 10° |
| Vertical viewing angle | 130° ± 10° |
| Recommended viewing distance | ≥9 m |
| Application environment | Outdoor |
| Maximum power per square meter | ≤590 W/m² |
| Power distribution requirement | ≤890 W/m² |
| Grayscale | 14–15 bits per color |
| Display colors | Up to 4.398 trillion |
| Frame rate | ≥60 fps |
| Refresh rate | 7,680 Hz |
| Control method | Computer control, pixel-to-pixel mapping, synchronous video and real-time display |
| Brightness adjustment | 256 levels, manual or automatic |
| Mean time between failures | ≥5,000 hours |
| Horizontal screen flatness | <1 mm/m² |
| Vertical screen flatness | <1 mm/m² |
| Cabinet size including modules | 960 × 960 × 104.5 mm |
|---|---|
| Cabinet size including modules and connector plates | 960 × 960 × 169.5 mm |
| Cabinet resolution | 192 × 192 pixels |
| Total pixels per cabinet | 36,864 pixels |
| Cabinet area | 0.9216 m² |
| Cabinet weight | 28.5 ± 0.5 kg |
| Maximum cabinet power consumption | ≤544 W |
| Average cabinet power consumption | ≤182 W |
| Cabinet power distribution requirement | ≤697 W |
| Pixel pitch | 5 mm |
|---|---|
| Pixel density | 40,000 pixels/m² |
| Pixel configuration | 1R1G1B |
| LED package | SMD1921 |

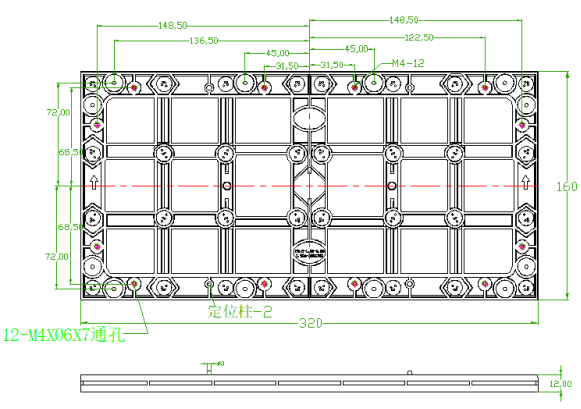

| Module dimensions | 320 × 160 × 18.5 mm |
| Module weight | 0.45 ± 0.01 kg |
| Structural design | LED and driver integrated |
| Module resolution | 64 × 32 pixels |
| Total pixels per module | 2,048 pixels |
| DC input voltage | -3.2 V / -4.0 V dual negative-voltage input |
| Maximum red-channel current | ≤2.5 A |
| Maximum green and blue-channel current | ≤5.5 A |
| Module power consumption | ≤32 W |
| Driving method | 1/8-scan constant-current drive |
| Modules per 20 A / 30 A DPS power supply | 3–4 modules |
| Modules per 30 A / 40 A DPS power supply | 5–6 modules |
03 / PRODUCT DESIGN & SIGNAL INTERFACE
Designed for your installation.
| Module signal interface | HUB75 16-pin |
|---|---|
| Color data signals | RD1, GD1, BD1, RD2, GD2, BD2 |
| Row-control signals | A, B, C, D |
| Clock signal | CLK |
| Data latch signal | LAT |
| Output-enable signal | OE |
| Ground pins | Pins 4, 8 and 16 |
| Control-system video inputs | DVI, VGA, HDMI, DP, composite video, S-VIDEO and YPbPr (HDTV) |
04 / ENGINEERING
Power architecture.
Power supply and consumption specifications for the selected configuration.
| Power-supply type | DPS energy-saving dedicated power supply |
|---|---|
| Module input voltage | -3.2 V / -4.0 V DC |
| Module power consumption | ≤32 W |
| Maximum cabinet power consumption | ≤544 W |
| Average cabinet power consumption | ≤182 W |
| Cabinet power distribution requirement | ≤697 W |
| Power distribution per square meter | ≤890 W/m² |
| Modules per 20 A / 30 A DPS power supply | 3–4 modules |
| Modules per 30 A / 40 A DPS power supply | 5–6 modules |
INSTALLATION
Modules to cabinets.
ENVIRONMENT & SERVICE
Built for its working environment.
- P5 pixel pitch with a pixel density of 40,000 pixels/m²
- Full-screen brightness of at least 5,000 cd/m²
- High 7,680 Hz refresh rate for smooth image reproduction
- SMD1921 full-color LED package with 1R1G1B pixel configuration
- 1/8-scan constant-current driving method
- 14–15-bit grayscale per color
- Up to 4.398 trillion color combinations
- Brightness uniformity greater than 0.95
- Modular design for horizontal and vertical screen assembly
- Single-pixel and single-LED maintenance for lower service costs
- DPS energy-saving dedicated power-supply design
Disconnect the main power supply before installing, removing or reconnecting modules. Use the specified DPS energy-saving dedicated power supply and matching cables. Do not connect the module directly to 220 V AC, and do not reverse the DC power polarity. Wear an antistatic wrist strap and antistatic gloves when handling the modules. Installation tools, power-supply enclosures, cabinets and metal screen structures must be properly grounded. Do not mix modules from different production batches on the same LED screen, as this may cause visible color differences or mosaic effects. Avoid displaying static images, fixed text or unchanged backgrounds for extended periods. Moving content is recommended to reduce uneven LED brightness degradation. For outdoor installations, seal the cabinet joints and screen perimeter with waterproof sealant. Inspect the display for moisture, water droplets or condensation after heavy rain. Handle the modules carefully during transportation and maintenance. Do not drop, squeeze, push or stack them under excessive pressure.
| Operating temperature | -20°C to 40°C |
|---|---|
| Storage temperature | -10°C to 30°C |
| Operating humidity | 10%–90% RH |
| Storage humidity | 10%–60% RH |
| Maximum module surface temperature during operation | ≤85°C |
| Grounding resistance | ≤10 Ω |
| Neutral-to-ground voltage | ≤2 V |
| Application environment | Outdoor |
| Protection functions | Over-temperature, overload, power-loss compensation, image compensation, correction technology, over-current and over-voltage protection |
| Optional protection | Lightning protection |
