Model ： P5-8S-2525-Pro-7680Hz
P5mm

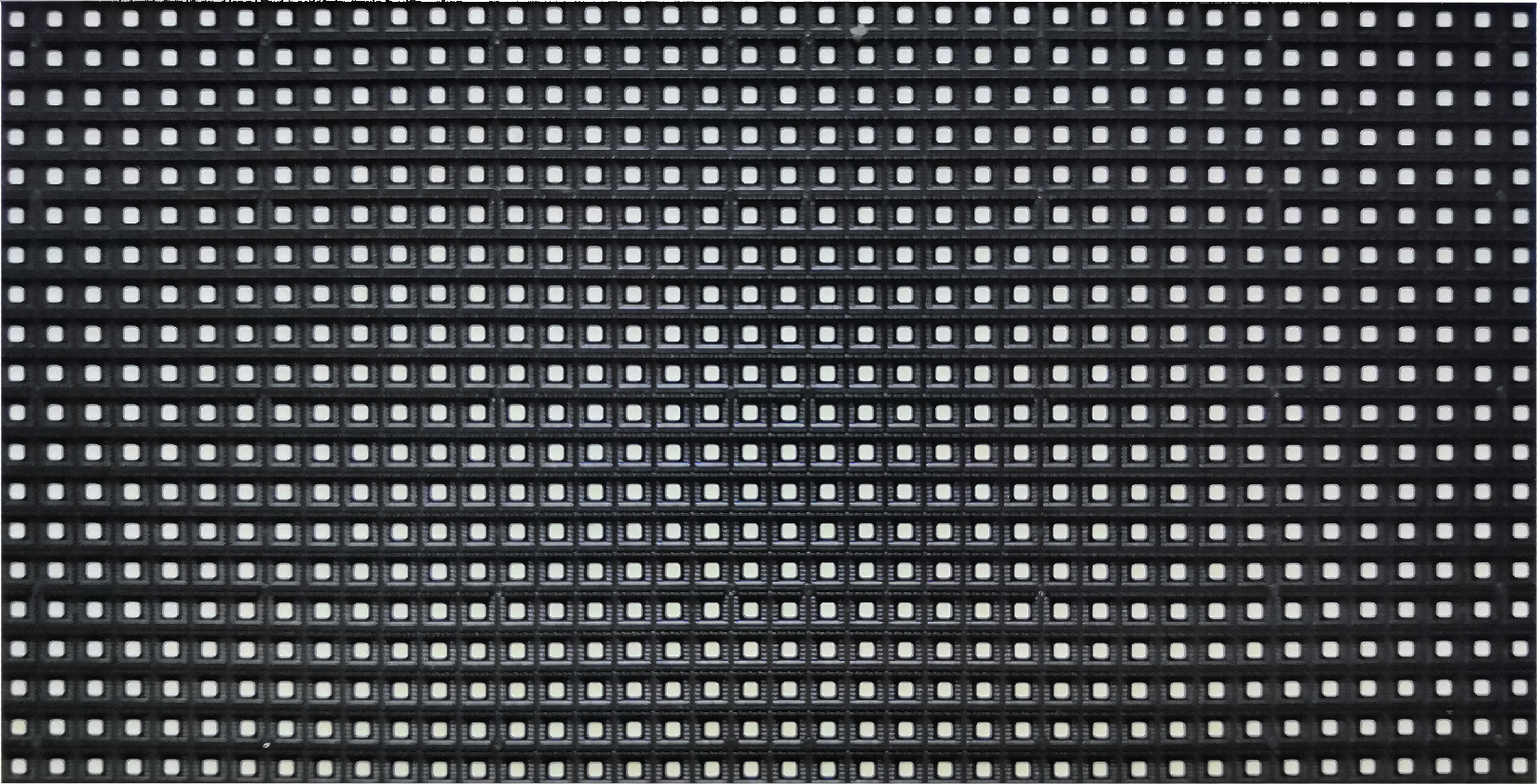

P5 Outdoor LED Display Module – P5-8S-2525 Pro 7680Hz
P5 outdoor LED display module with 5mm pixel pitch, SMD2525 LEDs, 1/8 scan constant-current driving and 7680Hz refresh rate. The 320 × 160mm module delivers ≥5000 cd/m² brightness and is designed for
- Pixel pitch
- 5mm
- Brightness
- ≥5000cd/㎡
- Refresh rate
- 7680HZ
- IP rating
- IP65
Series · Nova Outdoor
Product Specification
P5 Outdoor LED Display Module – P5-8S-2525 Pro
The P5-8S-2525 Pro is a P5 outdoor LED display module designed for large-format outdoor LED screen installations. It features a 5mm pixel pitch, SMD2525 RGB LEDs, 1/8 scan constant-current driving and a 7680Hz refresh rate.
5000 cd/m² High Brightness
With brightness of ≥5000 cd/m² and brightness uniformity greater than 0.95, the module is designed for outdoor LED display applications. The horizontal viewing angle is 140°±10° and the vertical viewing angle is 130°±10°.
320 × 160mm LED Module
Each module measures 320 × 160 × 18.5mm and provides a resolution of 64 × 32 pixels. The pixel density is 40,000 dots/m² with 2,048 pixels per module.
7680Hz High Refresh Rate
The module supports a refresh rate of 7680Hz and a frame rate of ≥60 fps, providing stable display performance for outdoor LED screen systems.
1/8 Scan Constant-Current Driving
The module uses 1/8 scan constant-current driving with SMD2525 LEDs, providing stable and uniform LED illumination.
Higher Pixel Density for Outdoor Displays
With a pixel density of 40,000 dots/m² and a best viewing distance of ≥9m, the P5 module is suitable for outdoor LED displays that require finer image detail at shorter viewing distances.
- Pixel pitch
- 5mm
- Brightness
- ≥5000cd/㎡
- Refresh rate
- 7680HZ
- Power
- ≤239W
- Resolution
- 192*192
- Cabinet size
- 960*960
- IP rating
- IP65
01 / SPECIFICATIONS
Performance at a glance.
Technical specifications for P5 Outdoor LED Display Module – P5-8S-2525 Pro 7680Hz. Contact us to confirm the configuration for your project.
| Pixel pitch | 5mm |
|---|---|
| Brightness | ≥5000cd/㎡ |
| Refresh rate | 7680HZ |
| Power | ≤239W |
| Resolution | 192*192 |
| Cabinet size | 960*960 |
| IP rating | IP65 |
| Brightness | ≥5000 cd/m² |
|---|---|
| Brightness Uniformity | >0.95 |
| Horizontal Viewing Angle | 140° ±10° |
| Vertical Viewing Angle | 130° ±10° |
| Best Viewing Distance | ≥9 m |
| Gray Scale | 14–15 bits per RGB color |
| Display Colors | 4.398 trillion colors |
| Frame Rate | ≥60 fps |
| Refresh Rate | 7680 Hz |
| Brightness Adjustment | 256 levels, manual/automatic |
| MTBF | ≥5000 hours |
| Screen Horizontal Flatness | <1 mm/m² |
| Screen Vertical Flatness | <1 mm/m² |
| Recommended Cabinet Size | 960 × 960 mm |
|---|---|
| Cabinet Thickness | 104.5 mm |
| Cabinet Thickness with Connecting Plate | 169.5 mm |
| Cabinet Resolution | 192 × 192 pixels |
| Pixels per Cabinet | 36,864 dots |
| Cabinet Area | 0.9216 m² |
| Cabinet Weight | 28.5 kg ±0.5 kg |
| Maximum Cabinet Power Consumption | ≤716 W |
| Average Cabinet Power Consumption | ≤239 W |
| Cabinet Distribution Power | ≤919 W |
| Pixel Pitch | 5 mm |
|---|---|
| Pixel Density | 40,000 dots/m² |
| Pixel Configuration | 1R1G1B |
| LED Package | SMD2525 |
| Module Size | 320 × 160 × 18.5 mm |
| Module Weight | 0.45 kg ±0.01 kg |
| Module Resolution | 64 × 32 pixels |
| Pixels per Module | 2,048 dots |
| Structure | LED and Driver Integrated |
| Input Voltage | DC 4.2 ±0.1 V |
| Maximum Current | ≤9.51 A |
| Maximum Module Power | ≤40 W |
| Drive Method | 1/8 Scan, Constant Current |
| 40A Power Supply Capacity | 2–3 modules |
| 50A Power Supply Capacity | 3–4 modules |
| 40A PFC Power Supply Capacity | 3–4 modules |
| 80A Power Supply Capacity | 6–7 modules |
03 / PRODUCT DESIGN & SIGNAL INTERFACE
Designed for your installation.
| Module Signal Interface | HUB75 |
|---|---|
| Control Method | Computer control, pixel-to-pixel mapping, synchronous video, real-time display |
| Input Signals | DVI / VGA / HDMI / DP / Composite Video / S-VIDEO / YPbPr (HDTV) |
| RGB Data Signals | RD1 / GD1 / BD1 / RD2 / GD2 / BD2 |
| Row Control Signals | A / B / C / D |
| Clock Signal | CLK |
| Latch Signal | LAT |
| Enable Signal | OE |
| Ground | GND |
04 / ENGINEERING
Power architecture.
Power supply and consumption specifications for the selected configuration.
| Module Input Voltage | DC 4.2 ±0.1 V |
|---|---|
| Maximum Module Current | ≤9.51 A |
| Maximum Module Power | ≤40 W |
| Maximum Power per Square Meter | ≤778 W/m² |
| Distribution Power per Square Meter | ≤1173 W/m² |
| Maximum Cabinet Power | ≤716 W |
| Average Cabinet Power | ≤239 W |
| Cabinet Distribution Power | ≤919 W |
| 40A Power Supply Capacity | 2–3 modules |
| 50A Power Supply Capacity | 3–4 modules |
| 40A PFC Power Supply Capacity | 3–4 modules |
| 80A Power Supply Capacity | 6–7 modules |
INSTALLATION
Modules to cabinets.
ENVIRONMENT & SERVICE
Built for its working environment.
- 5mm pixel pitch for outdoor LED display applications
- ≥5000 cd/m² high brightness
- 7680Hz high refresh rate
- SMD2525 RGB LED package
- 1/8 scan constant-current driving
- High contrast for clear outdoor display performance
- 320 × 160mm standard LED module size
- Lightweight design for easy installation and removal
- Supports single-pixel and single-LED maintenance
- Modules and cabinets support horizontal and vertical assembly
Use modules from the same production batch on one LED screen to avoid visible color differences. Do not connect the LED module directly to 220V AC. Ensure that the DC power polarity is correct. Disconnect the main power supply before installing or removing modules, power cables or signal cables. Do not use magnetic mounting for outdoor installations. For outdoor installations, ensure proper waterproof sealing around the screen structure, cabinets and cabinet connection points. The power supply enclosure, cabinet and display structure must be properly grounded. Avoid displaying static images, text or fixed backgrounds for extended periods. Inspect the display for moisture or water ingress after heavy rain. Check grounding and lightning protection systems periodically.
| Application Environment | Outdoor |
|---|---|
| Operating Temperature | -20°C to +40°C |
| Operating Humidity | 10%–90% RH |
| Recommended Storage Temperature | -10°C to +30°C |
| Recommended Storage Humidity | 10%–60% RH |
| Maximum LED Module Surface Temperature | ≤85°C |
| Grounding Resistance | ≤10 Ω |
| Neutral-to-Ground Voltage | ≤2 V |
| Protection Functions | Over-temperature / Overload / Power Failure / Image Compensation / Calibration / Over-current / Over-voltage |
| Lightning Protection | Optional |
APPLICATIONS
Visual solutions for your space.
With a 5mm pixel pitch, ≥5000 cd/m² brightness and 7680Hz refresh rate, it is suitable for outdoor LED display installations requiring higher pixel density, high brightness and stable image performance.
The modules and cabinets can be assembled horizontally and vertically to create LED displays of different sizes.
A 960 × 960mm cabinet configuration is recommended for this module.
TECHNICAL RESOURCES
Product documentation.
P5-8S-2525-Pro-7680HZ_Hitu_English_Specification
