Model ： P6-8S-2525-Pro-7680HZ
P6mm

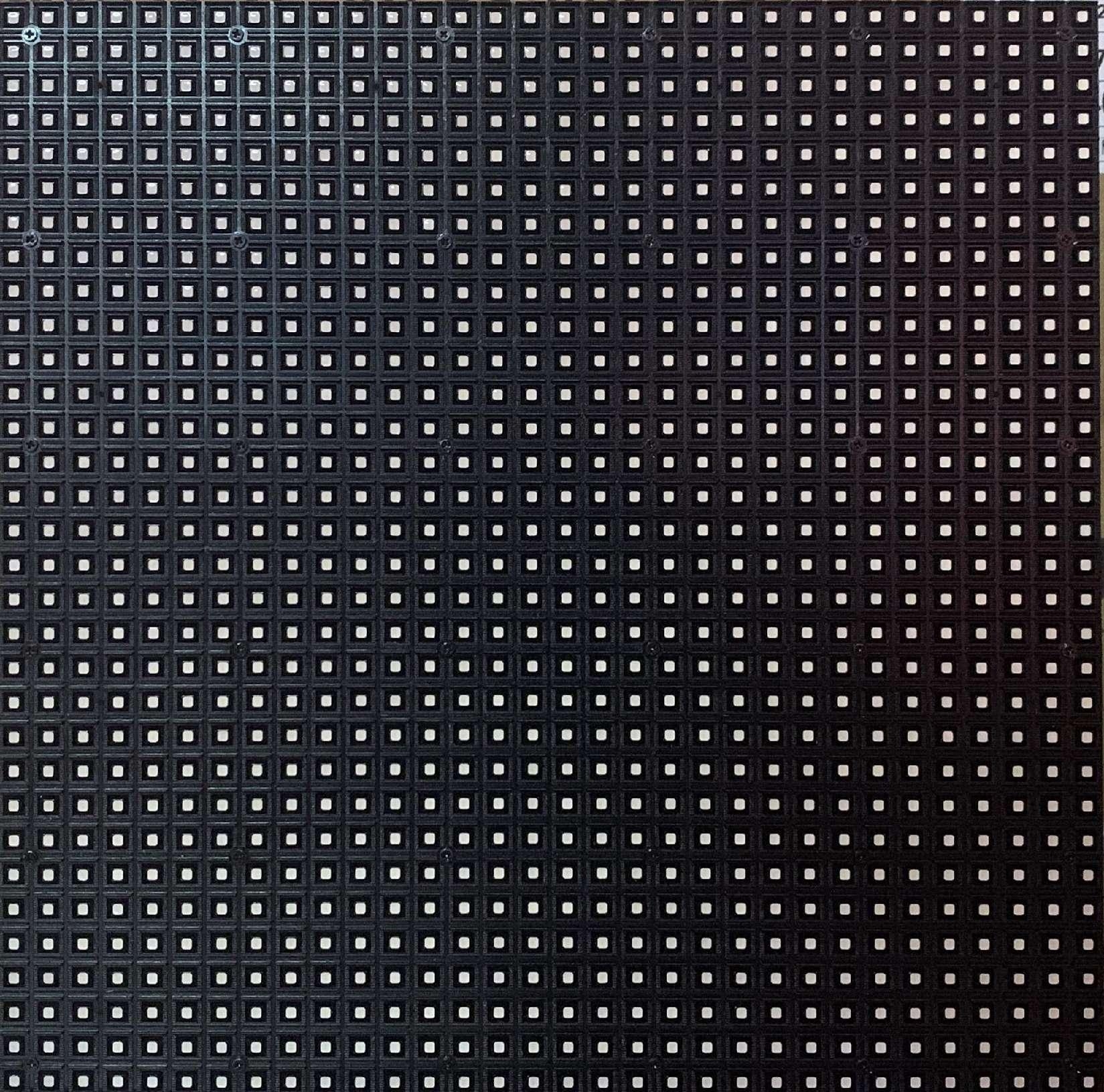

P6 Outdoor LED Display Module – P6-8S-2525 Pro 7680Hz
P6 outdoor LED display module with 6mm pixel pitch, SMD2525 LEDs, 1/8 scan constant-current driving and 7680Hz refresh rate. The 192 × 192mm module delivers ≥4500 cd/m² brightness and is designed for
- Pixel pitch
- 6mm
- Brightness
- ≥4500cd/㎡
- Refresh rate
- 7680HZ
- IP rating
- IP65
Series · Nova Outdoor
Product Specification
P6 Outdoor LED Display Module – P6-8S-2525 Pro
The P6-8S-2525 Pro is a P6 outdoor LED display module designed for large-format outdoor LED screen installations. It features a 6mm pixel pitch, SMD2525 RGB LEDs, 1/8 scan constant-current driving and a 7680Hz refresh rate.
High Brightness Outdoor Display
With brightness of ≥4500 cd/m² and brightness uniformity greater than 0.95, the module is designed for outdoor LED display applications. The horizontal viewing angle is 140°±10° and the vertical viewing angle is 130°±10°.
192 × 192mm LED Module
Each module measures 192 × 192 × 18mm and provides a resolution of 32 × 32 pixels. The pixel density is 27,777 dots/m² with 1,024 pixels per module.
7680Hz High Refresh Rate
The module supports a refresh rate of 7680Hz and a frame rate of ≥60 fps, providing stable display performance for outdoor LED screen systems.
1/8 Scan Constant-Current Driving
The module uses 1/8 scan constant-current driving with SMD2525 LEDs, helping provide uniform illumination and stable display performance.
Higher Pixel Density
With a pixel density of 27,777 dots/m² and a best viewing distance of ≥10.8m, the P6 module provides a finer pixel structure than larger-pitch outdoor LED modules.
- Pixel pitch
- 6mm
- Brightness
- ≥4500cd/㎡
- Refresh rate
- 7680HZ
- Power
- ≤173W
- Resolution
- 128*128
- Cabinet size
- 768*768
- IP rating
- IP65
01 / SPECIFICATIONS
Performance at a glance.
Technical specifications for P6 Outdoor LED Display Module – P6-8S-2525 Pro 7680Hz. Contact us to confirm the configuration for your project.
| Pixel pitch | 6mm |
|---|---|
| Brightness | ≥4500cd/㎡ |
| Refresh rate | 7680HZ |
| Power | ≤173W |
| Resolution | 128*128 |
| Cabinet size | 768*768 |
| IP rating | IP65 |
| Brightness | ≥4500 cd/m² |
|---|---|
| Brightness Uniformity | >0.95 |
| Horizontal Viewing Angle | 140° ±10° |
| Vertical Viewing Angle | 130° ±10° |
| Best Viewing Distance | ≥10.8 m |
| Gray Scale | 14–15 bits per RGB color |
| Display Colors | 4.398 trillion colors |
| Frame Rate | ≥60 fps |
| Refresh Rate | 7680 Hz |
| Brightness Adjustment | 256 levels, manual/automatic |
| MTBF | ≥5000 hours |
| Screen Horizontal Flatness | <1 mm/m² |
| Screen Vertical Flatness | <1 mm/m² |
| Conventional Cabinet Size | 768 × 768 × 90 mm |
|---|---|
| Cabinet Thickness Note | 90 mm, excluding LED modules |
| Cabinet Resolution | 128 × 128 pixels |
| Pixels per Cabinet | 16,384 dots |
| Cabinet Area | 0.59 m² |
| Cabinet Weight | 18.5 kg ±0.5 kg |
| Maximum Cabinet Power Consumption | ≤519 W |
| Average Cabinet Power Consumption | ≤173 W |
| Cabinet Distribution Power | ≤665 W |
| Pixel Pitch | 6 mm |
|---|---|
| Pixel Density | 27,777 dots/m² |
| Pixel Configuration | 1R1G1B |
| LED Package | SMD2525 |
| Module Size | 192 × 192 × 18 mm |
| Module Weight | 0.32 kg ±0.01 kg |
| Module Resolution | 32 × 32 pixels |
| Pixels per Module | 1,024 dots |
| Structure | LED and Driver Integrated |
| Input Voltage | DC 4.2 ±0.1 V |
| Maximum Current | ≤7.75 A |
| Maximum Module Power | ≤33 W |
| Drive Method | 1/8 Scan, Constant Current |
| 40A Power Supply Capacity | 3–4 modules |
| 50A Power Supply Capacity | 4–5 modules |
| 40A PFC Power Supply Capacity | 4–5 modules |
| 80A Power Supply Capacity | 7–8 modules |

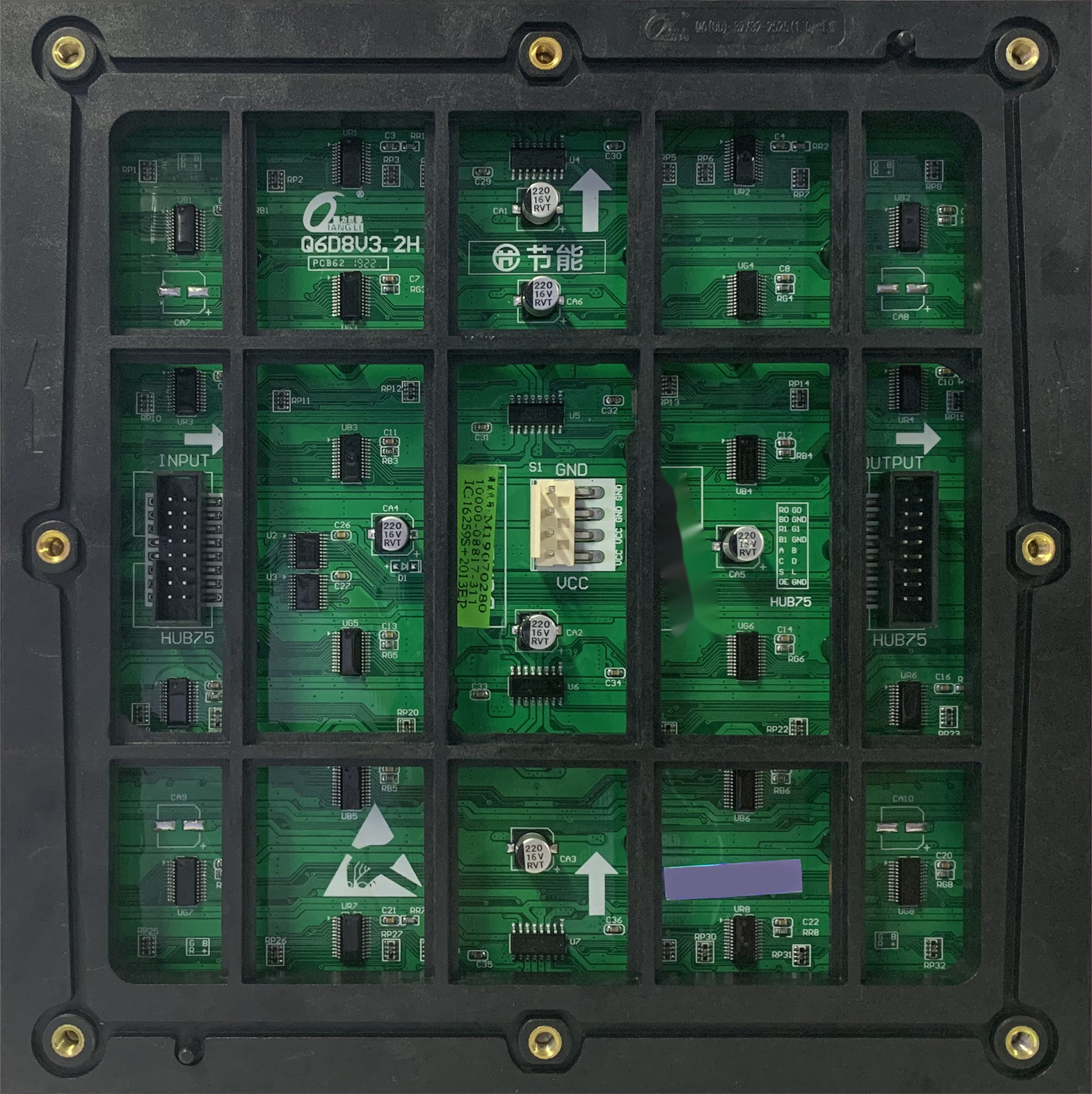

03 / PRODUCT DESIGN & SIGNAL INTERFACE
Designed for your installation.
| Module Signal Interface | HUB75 |
|---|---|
| Control Method | Computer control, pixel-to-pixel mapping, synchronous video, real-time display |
| Input Signals | DVI / VGA / HDMI / DP / Composite Video / S-VIDEO / YPbPr (HDTV) |
| RGB Data Signals | RD1 / GD1 / BD1 / RD2 / GD2 / BD2 |
| Row Control Signals | A / B / C / D |
| Clock Signal | CLK |
| Latch Signal | LAT |
| Enable Signal | OE |
| Ground | GND |
04 / ENGINEERING
Power architecture.
Power supply and consumption specifications for the selected configuration.
| Module Input Voltage | DC 4.2 ±0.1 V |
|---|---|
| Maximum Module Current | ≤7.75 A |
| Maximum Module Power | ≤33 W |
| Maximum Power per Square Meter | ≤880 W/m² |
| Distribution Power per Square Meter | ≤1327 W/m² |
| Maximum Cabinet Power | ≤519 W |
| Average Cabinet Power | ≤173 W |
| Cabinet Distribution Power | ≤665 W |
| 40A Power Supply Capacity | 3–4 modules |
| 50A Power Supply Capacity | 4–5 modules |
| 40A PFC Power Supply Capacity | 4–5 modules |
| 80A Power Supply Capacity | 7–8 modules |
INSTALLATION
Modules to cabinets.
ENVIRONMENT & SERVICE
Built for its working environment.
- 6mm pixel pitch for outdoor LED display applications
- ≥4500 cd/m² high brightness
- 7680Hz high refresh rate
- SMD2525 RGB LED package
- 1/8 scan constant-current driving
- High contrast for clear display performance
- 192 × 192mm compact LED module size
- Lightweight design for easy installation and removal
- Supports single-pixel and single-LED maintenance
- Constant-current LED driving for uniform illumination and lower power consumption
- Modules can be assembled horizontally and vertically
Use modules from the same production batch on one LED screen to avoid visible color differences. Do not connect the LED module directly to 220V AC. Ensure that the DC power polarity is correct. Disconnect the main power supply before installing or removing modules, power cables or signal cables. Do not use magnetic mounting for outdoor installations. For outdoor installations, ensure proper waterproof sealing around the screen structure, cabinets and cabinet connection points. The power supply enclosure, cabinet and display structure must be properly grounded. Avoid displaying static images, text or fixed backgrounds for extended periods. Inspect the display for moisture or water ingress after heavy rain. Check grounding and lightning protection systems periodically.
| Application Environment | Outdoor |
|---|---|
| Operating Temperature | -20°C to +40°C |
| Operating Humidity | 10%–90% RH |
| Recommended Storage Temperature | -10°C to +30°C |
| Recommended Storage Humidity | 10%–60% RH |
| Maximum LED Module Surface Temperature | ≤85°C |
| Grounding Resistance | ≤10 Ω |
| Neutral-to-Ground Voltage | ≤2 V |
| Protection Functions | Over-temperature / Overload / Power Failure / Image Compensation / Calibration / Over-current / Over-voltage |
| Lightning Protection | Optional |
APPLICATIONS
Visual solutions for your space.
With a 6mm pixel pitch, ≥4500 cd/m² brightness and 7680Hz refresh rate, it is suitable for outdoor LED displays requiring high brightness, higher pixel density and stable image performance.
The modules can be assembled horizontally and vertically to create LED screens of different sizes.
A conventional 768 × 768mm cabinet configuration is specified for this module.
TECHNICAL RESOURCES
Product documentation.
P6-8S-2525-Pro-7680HZ_Hitu_English_Specification
