Model ： LN2.604-24S-1515-H-7680
P2.604mm
LN2.604-24S-1515-H-7680 Indoor Rental LED Display
LN2.604‑24S‑1515‑H‑7680 indoor rental LED wall with 2.604mm pixel pitch, 7680Hz high refresh rate & 600cd/m² brightness. Light‑weight die‑cast aluminum cabinets (500×500 /500×1000mm), hard‑connection
- Pixel pitch
- 2.604 mm
- Brightness
- 600 cd/m²
- Refresh rate
- 7680Hz
- IP rating
- IP40 front / IP21 rear
Series · Rapid Rental
Product Specification
LN2.604-24S-1515-H-7680 Indoor Rental LED Display
2.604 mm indoor hard-connection rental LED display with 600 cd/m² brightness and 7680Hz refresh rate.
Key Features
500 × 500 mm and 500 × 1000 mm die-cast aluminum cabinets
Hard-connection architecture for rapid assembly and servicing
Hanging or floor stacking installation
Applications
Indoor stages, live events, exhibitions and touring productions.
- Pixel pitch
- 2.604 mm
- Brightness
- 600 cd/m²
- Refresh rate
- 7680Hz
- Power
- Maximum display power: 361.7 / 323.2 W/m²
- Resolution
- Module 96 x 96 dots; Cabinet 192 x 192 / 192 x 384 dots
- Cabinet size

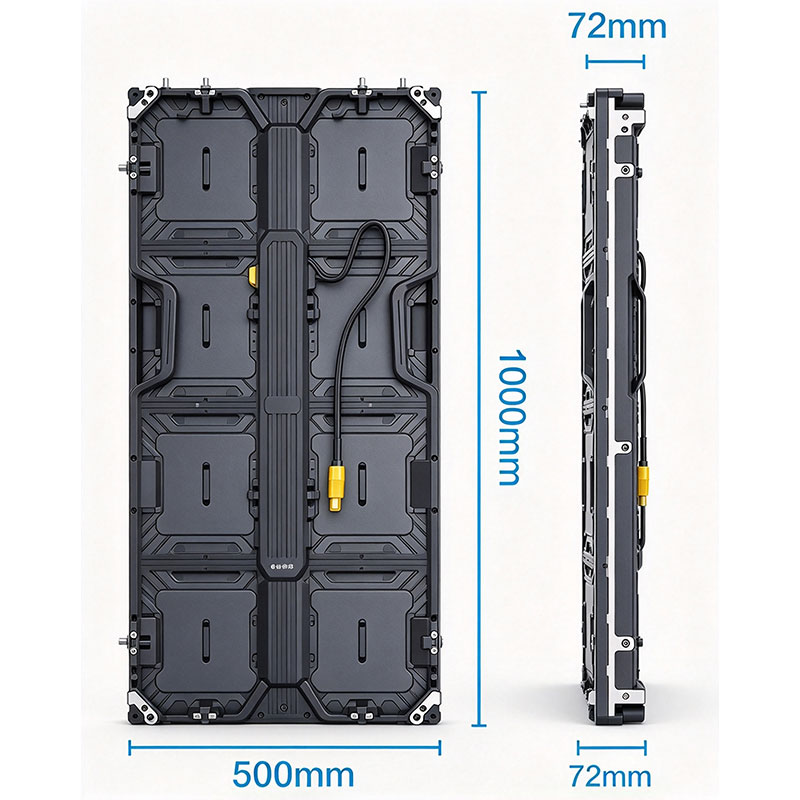

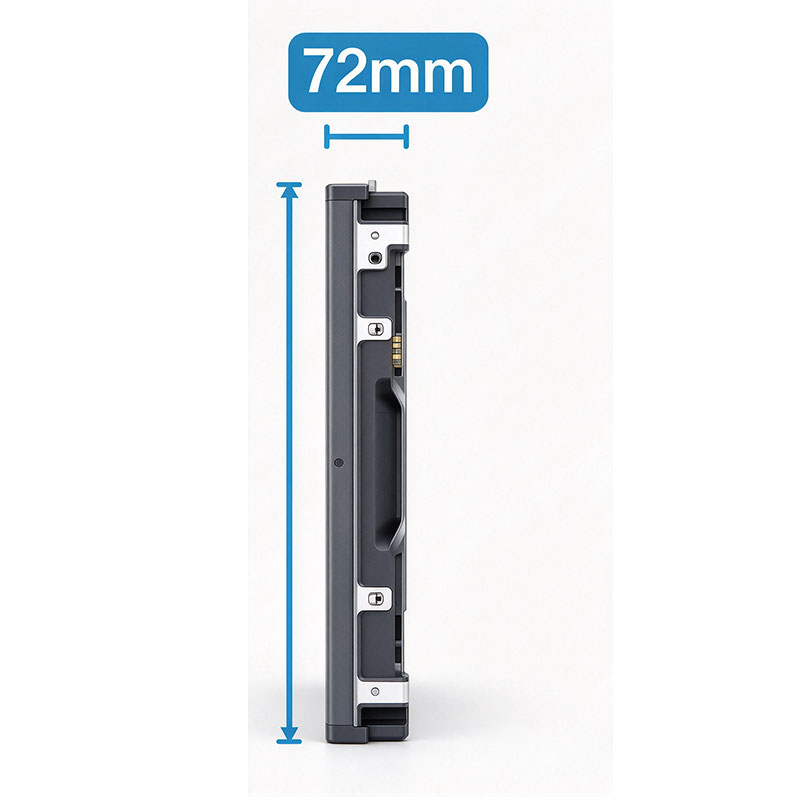

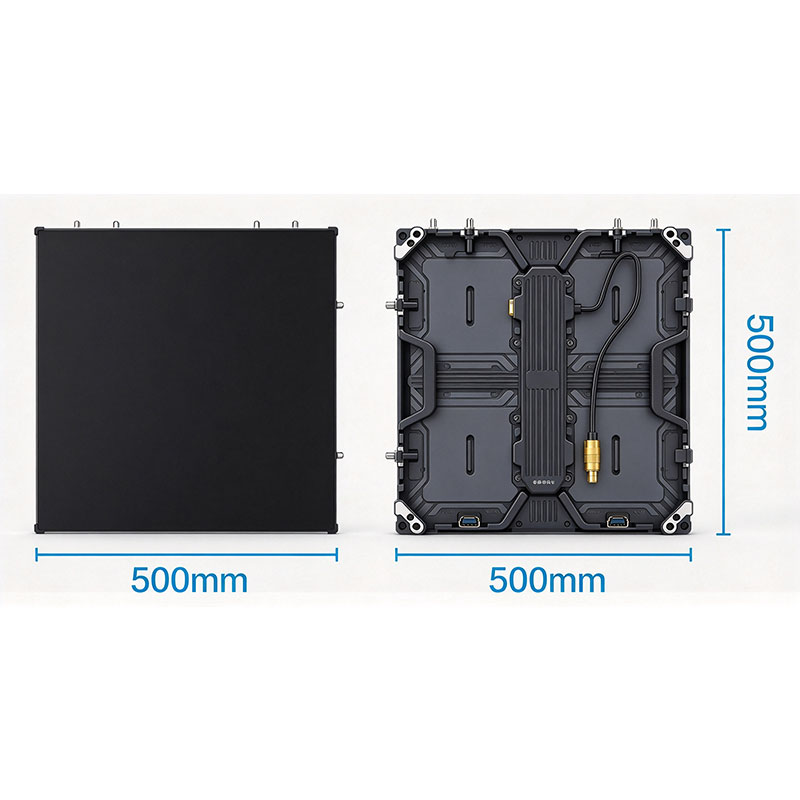

- 500 x 500 x 72 mm / 500 x 1000 x 72 mm
- IP rating
- IP40 front / IP21 rear
01 / SPECIFICATIONS
Performance at a glance.
Technical specifications for LN2.604-24S-1515-H-7680 Indoor Rental LED Display. Contact us to confirm the configuration for your project.
| Pixel pitch | 2.604 mm |
|---|---|
| Brightness | 600 cd/m² |
| Refresh rate | 7680Hz |
| Power | Maximum display power: 361.7 / 323.2 W/m² |
| Resolution | Module 96 x 96 dots; Cabinet 192 x 192 / 192 x 384 dots |
| Cabinet size | 500 x 500 x 72 mm / 500 x 1000 x 72 mm |
| IP rating | IP40 front / IP21 rear |
| Brightness | 600 cd/m² |
|---|---|
| Brightness Uniformity | >0.95 |
| Horizontal Viewing Angle | 160±10° |
| Vertical Viewing Angle | 140±10° |
| Recommended Viewing Distance | ≥2.604 m |
| Refresh Rate | 7680Hz |
| Frame Rate | ≥60 fps |
| Grayscale | 14-16 bits |
| Cabinet Dimensions | 500 x 500 x 72 mm / 500 x 1000 x 72 mm |
|---|---|
| Cabinet Resolution | 192 x 192 / 192 x 384 dots |
| Cabinet Weight | 6.0 kg ±10% / 10.6 kg ±10% |
| Cabinet Material | Die-cast aluminum |
| Installation | Hanging or floor stacking |
| Maximum Power Consumption | 361.7 / 323.2 W/m² |
| Pixel Pitch | 2.604 mm |
|---|---|
| Pixel Density | 147475 dots/m² |
| Pixel Configuration | 1R1G1B |
| LED Package | SMD1515 |
| Module Dimensions | 250 x 250 mm |
| Module Resolution | 96 x 96 dots |
| Module Weight | Not specified |
| Drive / Scan Method | 1/24 constant-current drive |
03 / PRODUCT DESIGN & SIGNAL INTERFACE
Designed for your installation.
| Signal Interface | Rental cabinet internal interface |
|---|
04 / ENGINEERING
Power architecture.
Power supply and consumption specifications for the selected configuration.
| Input Voltage | AC 200-240 V system input |
|---|---|
| Maximum Current | Not specified |
| Maximum Module Power | Calculated from cabinet load |
| Maximum Display Power | 361.7 / 323.2 W/m² |
INSTALLATION
Modules to cabinets.
ENVIRONMENT & SERVICE
Built for its working environment.
- 2.604 mm pixel pitch with 7680Hz high refresh rate
- 600 cd/m² brightness for indoor rental applications
- 500 × 500 mm and 500 × 1000 mm cabinets can be combined in one screen
- Hard-connection rental cabinet architecture for rapid assembly and servicing
- Die-cast aluminum cabinet for low weight and repeatable alignment
Disconnect AC power before wiring or servicing. Use ESD protection when handling modules and connectors. Keep cabinets dry during storage and transport, and verify cabinet locks and safety cables before use.
| Operating Environment | Indoor |
|---|---|
| Operating Temperature | -10 to +40°C |
| Operating Humidity | 10%-90% RH |
| Protection Rating | IP40 front / IP21 rear |
APPLICATIONS
Visual solutions for your space.
live events, exhibitions
touring productions
temporary installations.
