Model ： LY2.9-21S-2020-H-7680
P2.9mm
LY2.9-21S-2020-H-7680 Indoor Rental LED Display
LY2.9‑21S‑2020‑H‑7680 indoor rental LED wall, 2.9mm pixel pitch, ≥600cd/m² brightness & 7680Hz refresh rate. Die‑cast aluminum cabinets (500×500 /500×1000mm), hard‑connection for fast assembly. IP40 f
- Pixel pitch
- 2.9 mm
- Brightness
- ≥600 cd/m²
- Refresh rate
- 7680Hz
- IP rating
- IP40 front / IP21 rear
Series · Rapid Rental
Product Specification
LY2.9-21S-2020-H-7680 Indoor Rental LED Display
2.9 mm indoor rental LED display with ≥600 cd/m² brightness and 7680Hz refresh rate.
Key Features
500 × 500 mm and 500 × 1000 mm die-cast aluminum cabinets
Hard-connection architecture for rapid assembly and servicing
Hanging or floor stacking installation
Optical Specifications
Brightness: ≥600 cd/m²; Uniformity: >0.95; Viewing angle: 140±10° horizontal / 130±10° vertical; Recommended viewing distance: ≥2.9 m; Refresh: 7680Hz; Frame rate: ≥60 fps; Grayscale: 14–16 bits.
Cabinet Specifications
Dimensions: 500 × 500 × 72 mm / 500 × 1000 × 72 mm; Resolution: 168 × 168 / 168 × 336 dots; Weight: ≤7 kg / ≤12 kg; Material: die-cast aluminum; Maximum power: ≤256 W/m².
Module Specifications

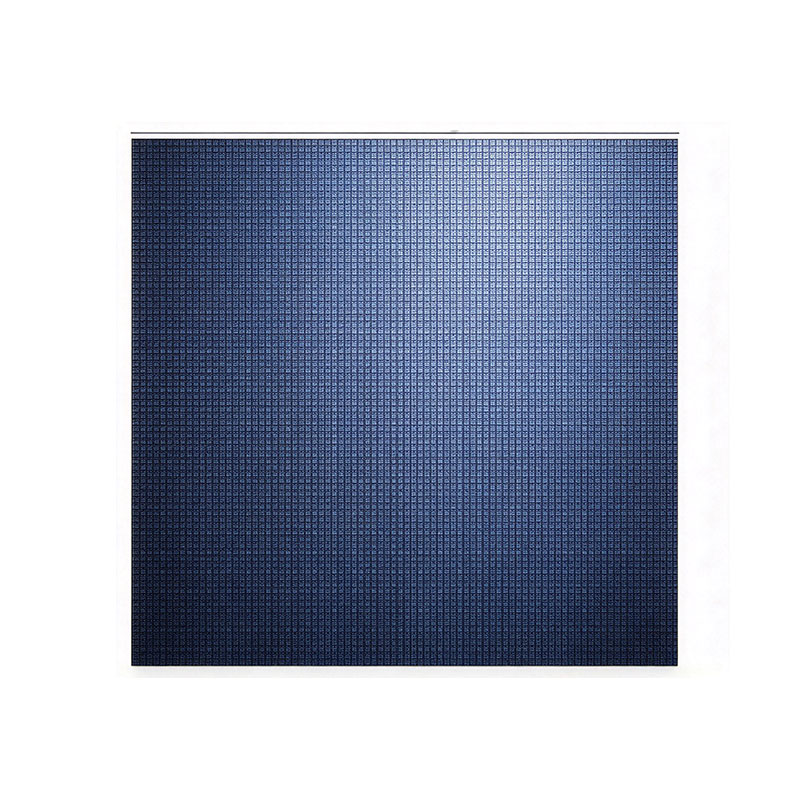

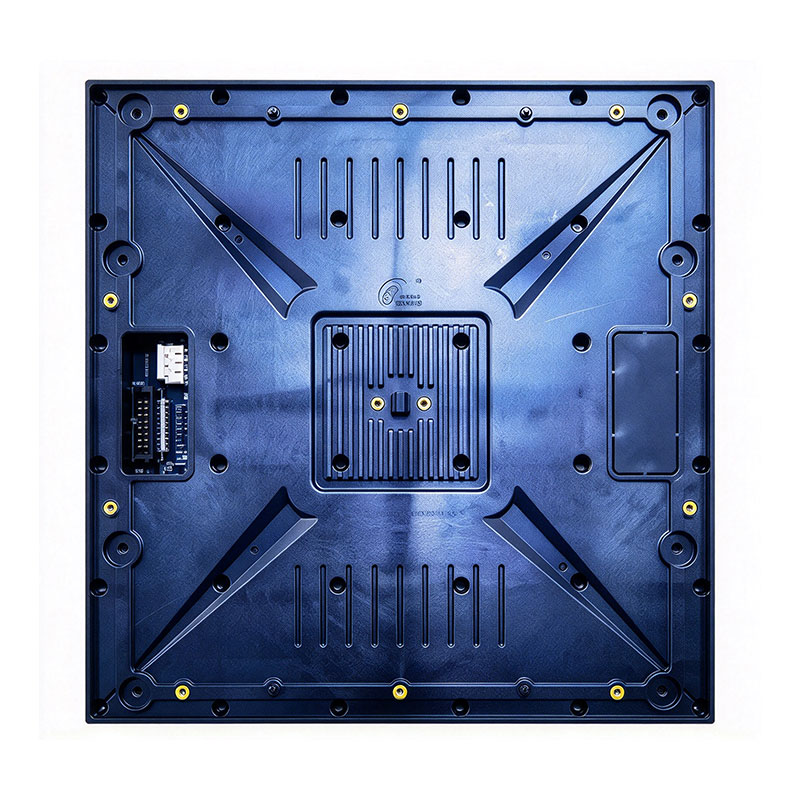

Pixel density: 112,896 dots/m²; 1R1G1B; SMD2020; Module: 250 × 250 × 16.5 mm; Resolution: 84 × 84 dots; Weight: 0.57 kg ±0.01 kg; Scan: 1/21 constant-current drive.
Electrical and Environment
Input: 4.2±0.1 V; Maximum current: ≤3.7 A; Maximum module power: ≤16 W; Signal: hard-connection integrated interface; Temperature: -20 to +40°C; Humidity: 10%–65% RH; Protection: IP40 front / IP21 rear.
Applications and Maintenance
Indoor stages, live events, exhibitions and touring productions. Disconnect AC power before servicing, use ESD protection, and verify cabinet locks and safety cables.
- Pixel pitch
- 2.9 mm
- Brightness
- ≥600 cd/m²
- Refresh rate
- 7680Hz
- Power
- Maximum display power: ≤256 W/m²
- Resolution
- Module 84 x 84 = 7056 dots; Cabinet 168 x 168 / 168 x 336 dots
- Cabinet size
- 500 x 500 x 72 mm / 500 x 1000 x 72 mm
- IP rating
- IP40 front / IP21 rear
01 / SPECIFICATIONS
Performance at a glance.
Technical specifications for LY2.9-21S-2020-H-7680 Indoor Rental LED Display. Contact us to confirm the configuration for your project.
| Pixel pitch | 2.9 mm |
|---|---|
| Brightness | ≥600 cd/m² |
| Refresh rate | 7680Hz |
| Power | Maximum display power: ≤256 W/m² |
| Resolution | Module 84 x 84 = 7056 dots; Cabinet 168 x 168 / 168 x 336 dots |
| Cabinet size | 500 x 500 x 72 mm / 500 x 1000 x 72 mm |
| IP rating | IP40 front / IP21 rear |
| Brightness | ≥600 cd/m² |
|---|---|
| Brightness Uniformity | >0.95 |
| Horizontal Viewing Angle | 140±10° |
| Vertical Viewing Angle | 130±10° |
| Recommended Viewing Distance | ≥2.9 m |
| Refresh Rate | 7680Hz |
| Frame Rate | ≥60 fps |
| Grayscale | 14-16 bits |
| Cabinet Dimensions | 500 x 500 x 72 mm / 500 x 1000 x 72 mm |
|---|---|
| Cabinet Resolution | 168 x 168 / 168 x 336 dots |
| Cabinet Weight | ≤7 kg / ≤12 kg |
| Cabinet Material | Die-cast aluminum |
| Installation | Hanging or floor stacking |
| Maximum Power Consumption | ≤256 W/m² |
| Pixel Pitch | 2.9 mm |
|---|---|
| Pixel Density | 112896 dots/m² |
| Pixel Configuration | 1R1G1B |
| LED Package | SMD2020 |
| Module Dimensions | 250 x 250 x 16.5 mm |
| Module Resolution | 84 x 84 = 7056 dots |
| Module Weight | 0.57 kg ±0.01 kg |
| Drive / Scan Method | 1/21 constant-current drive |
03 / PRODUCT DESIGN & SIGNAL INTERFACE
Designed for your installation.
| Signal Interface | Hard-connection integrated interface |
|---|
04 / ENGINEERING
Power architecture.
Power supply and consumption specifications for the selected configuration.
| Input Voltage | 4.2±0.1 V |
|---|---|
| Maximum Current | ≤3.7 A |
| Maximum Module Power | ≤16 W |
| Maximum Display Power | ≤256 W/m² |
ENVIRONMENT & SERVICE
Built for its working environment.
- 2.9 mm pixel pitch with 7680Hz high refresh rate
- ≥600 cd/m² brightness for indoor rental applications
- 500 × 500 mm and 500 × 1000 mm cabinets can be combined in one screen
- Hard-connection rental cabinet architecture for rapid assembly and servicing
- Die-cast aluminum cabinet for low weight and repeatable alignment
Disconnect AC power before wiring or servicing. Use ESD protection when handling modules and connectors. Keep cabinets dry during storage and transport, and verify cabinet locks and safety cables before use.
| Operating Environment | Indoor |
|---|---|
| Operating Temperature | -20 to +40°C |
| Operating Humidity | 10%-65% RH |
| Protection Rating | IP40 front / IP21 rear |
APPLICATIONS
Visual solutions for your space.
live events
exhibitions, touring productions
temporary installations.
