Model ： G2.5-64S-1515-H-3840
P2.5mm

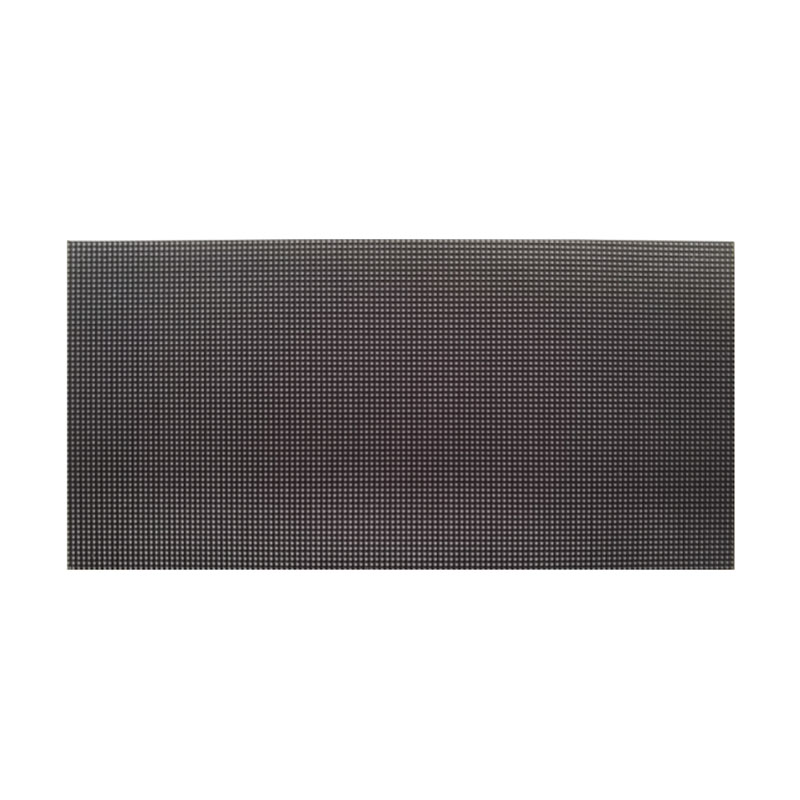

G2.5-64S-1515-H-3840 Indoor Flexible GOB LED Module
G2.5‑64S‑1515‑H‑3840 indoor flexible GOB LED module, 2.5mm pixel pitch, 3840Hz refresh rate, ≥400 cd/m² brightness. Front IP65 protection, SMD1515 RGB, 1/64 constant‑current drive, HUB75 interface for
- Pixel pitch
- 2.5mm
- Brightness
- ≥400cd/m²
- Refresh rate
- 3840Hz
- IP rating
- Front LED surface protection up to IP65; remaining parts are for indoor use only.
Series · Prism Indoor
Product Specification
G2.5-64S-1515-H-3840 Indoor Flexible GOB LED Module
The G2.5-64S-1515-H-3840 is an indoor flexible GOB LED display module with 2.5mm pixel pitch, SMD1515 RGB LEDs, 1/64 scan constant-current driving and a 3840Hz refresh rate.
400cd/m² Indoor Brightness
With brightness of ≥400cd/m² and brightness uniformity greater than 0.95, the module is designed for indoor LED display installations.
320 × 160mm LED Module
Each module measures 320 × 160 × 7.5mm and provides a resolution of 128 × 64 = 8192Dots. The pixel density is 160,000 dots/m².
3840Hz High Refresh Rate
The module supports a refresh rate of 3840Hz and a frame rate of ≥60 fps, providing stable image performance for indoor LED display systems.
Constant-Current Driver Technology
The HUB75 interface and 1/64 scan constant-current driving provide stable and consistent display performance.
High Pixel Density for Detailed Indoor Images
With a pixel density of 160,000 dots/m² and an optimal viewing distance of ≥4.5m, the module is suitable for detailed indoor LED displays.
- Pixel pitch
- 2.5mm
- Brightness
- ≥400cd/m²
- Refresh rate
- 3840Hz
- Power
- Module ≤12W; display ≤237W/m²
- Resolution
- Module 128*64=8192Dots
- IP rating
- Front LED surface protection up to IP65; remaining parts are for indoor use only.
01 / SPECIFICATIONS
Performance at a glance.
Technical specifications for G2.5-64S-1515-H-3840 Indoor Flexible GOB LED Module. Contact us to confirm the configuration for your project.
| Pixel pitch | 2.5mm |
|---|---|
| Brightness | ≥400cd/m² |
| Refresh rate | 3840Hz |
| Power | Module ≤12W; display ≤237W/m² |
| Resolution | Module 128*64=8192Dots |
| Cabinet size | |
| IP rating | Front LED surface protection up to IP65; remaining parts are for indoor use only. |
| Brightness | ≥400cd/m² |
|---|---|
| Brightness Uniformity | >0.95 |
| Horizontal Viewing Angle | 140±10° |
| Vertical Viewing Angle | 130±10° |
| Optimal Viewing Distance | ≥4.5m |
| Refresh Rate | 3840Hz |
| Frame Rate | ≥60fps |
| Grayscale | R/G/B each 12-13bits |
| Pixel Pitch | 2.5mm |
|---|---|
| Pixel Density | 160000dots/m² |
| Pixel Configuration | 1R1G1B |
| LED Package | SMD1515 |
| Module Dimensions | 320*160*7.5mm |
| Module Weight | 0.25kg±0.01kg |
| Module Resolution | 128*64=8192Dots |
| Drive Method | 1/64constant-current drive |
03 / PRODUCT DESIGN & SIGNAL INTERFACE
Designed for your installation.
| Interface | HUB75 |
|---|
04 / ENGINEERING
Power architecture.
Power supply and consumption specifications for the selected configuration.
| Input Voltage | 4.2±0.1V |
|---|---|
| Maximum Current | ≤2.7A |
| Module Power | ≤12W |
| Maximum Display Power | ≤237W/m² |
| Power Distribution Capacity | ≤358W/m² |
INSTALLATION
Modules to cabinets.
ENVIRONMENT & SERVICE
Built for its working environment.
- 2.5mm fine pixel pitch for detailed indoor images
- 3840Hz refresh rate for smooth video and camera capture
- 160000dots/m² pixel density
- Wide viewing angles: 140±10° horizontal and 130±10° vertical
- HUB75 signal interface with 1/64constant-current drive
- Enhanced front-surface protection for demanding indoor environments
Use ESD protection during handling. Keep the module dry and within the specified temperature and humidity range. Do not connect the module directly to 220V or assemble it while powered.
| Operating Environment | Indoor |
|---|---|
| Operating Temperature | -20℃-40℃ |
| Operating Humidity | 10%-65% RH (non-condensing) |
| Protection | Front LED surface protection up to IP65; remaining parts are for indoor use only. |
APPLICATIONS
Visual solutions for your space.
column,
creative-shape
custom installations.
