G3.0-52S-2020-Pro-4200 Indoor GOB LED Module

G3.0-52S-2020-Pro-4200 Indoor GOB LED Module

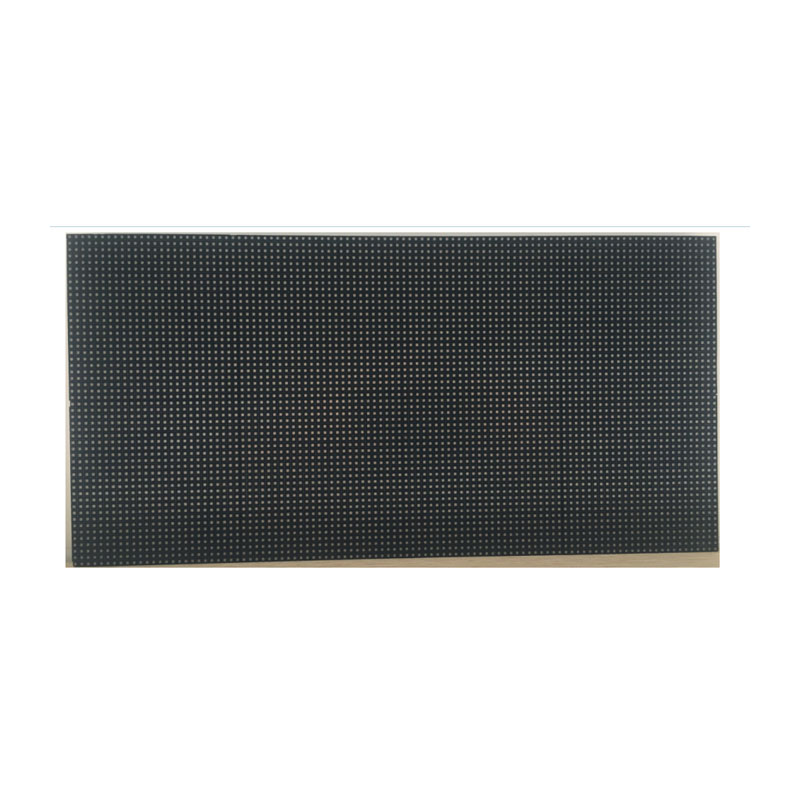

The G3.0-52S-2020-Pro-4200 is an indoor GOB LED display module with 3.0mm pixel pitch, SMD2020 RGB LEDs, 1/52 scan constant-current driving and a 4200Hz refresh rate. The 320 × 160mm module delivers ≥400 cd/m² brightness for indoor LED display installations.

400 cd/m² Indoor Brightness

With brightness of ≥400 cd/m² and brightness uniformity greater than 0.95, the module is designed for indoor LED display applications. The horizontal viewing angle is 140°±10° and the vertical viewing angle is 130°±10°.

320 × 160mm LED Module

Each module measures 320 × 160 × 14mm and provides a resolution of 104 × 52 pixels. The pixel density is 105,625 dots/m² with 5,408 pixels per module.

4200Hz High Refresh Rate

The module supports a refresh rate of 4200Hz and a frame rate of ≥60 fps, providing stable image performance for indoor LED display systems.

Constant-Current Driver Technology

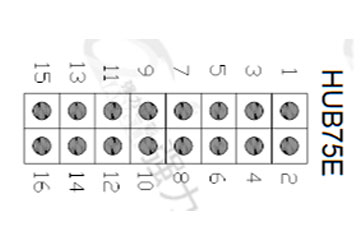

The module uses the HUB75 interface and 1/52 scan constant-current driving to provide stable and consistent display performance.

High Pixel Density for Finer Indoor Images

With a pixel density of 105,625 dots/m² and a best viewing distance of ≥5.4m, the G3.0 module is suitable for indoor LED displays that require finer image detail and shorter viewing distances.
